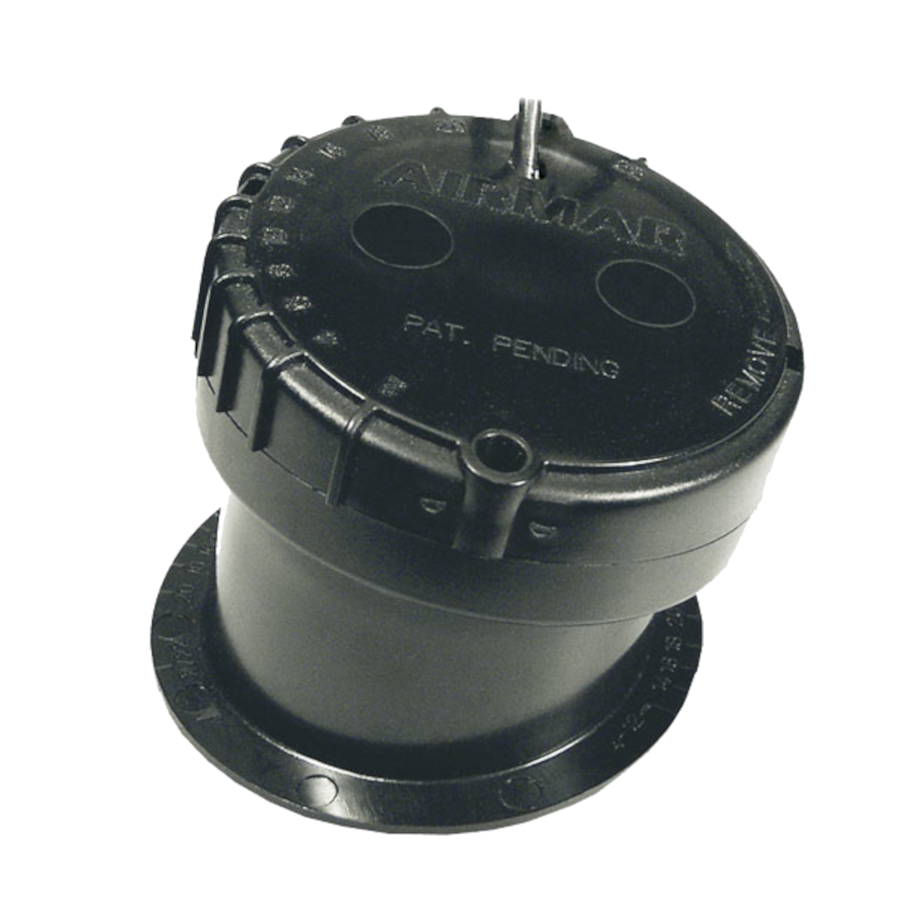

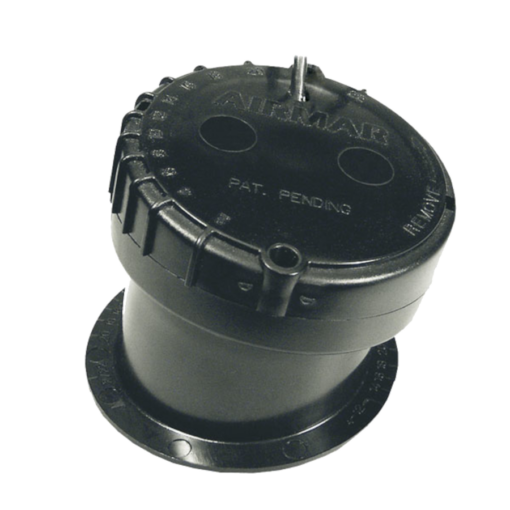

AIRMAR P79S Smart™ Sensor In-hull
Original price was: 785,00 €.706,59 €Current price is: 706,59 €.
You save
Terms and Conditions
1ST ORDER DISCOUNT
Claim your initial 5% discount on your first order by registering on the SailRACE community.
CERTIFIED SUPPORT
Get support by officially certified experts. Detail us your refitting needs and we will help you determining the best solution.
Detailed Information
The P79S brings depth intelligence to your boat. Featuring Airmar’s Smart™ Sensor technology, the P79S delivers processed depth data right to the onboard network for multiple displays to use. Smart Sensors have embedded microelectronics—the transducer element and signal processor are only millimeters apart. The signal from the depth transducer is processed right inside the sensor itself. All that is needed to receive depth data is a single cable into a compatible network or display. The Smart Sensor can output in NMEA 0183 or NMEA 2000® protocol.

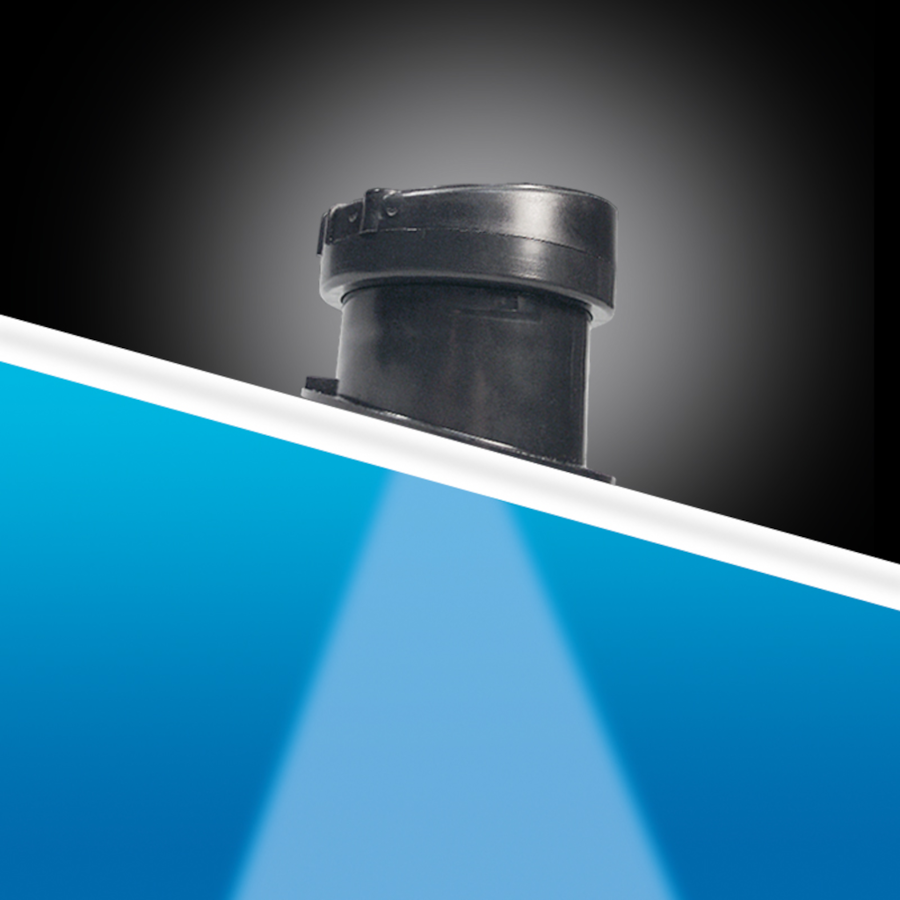

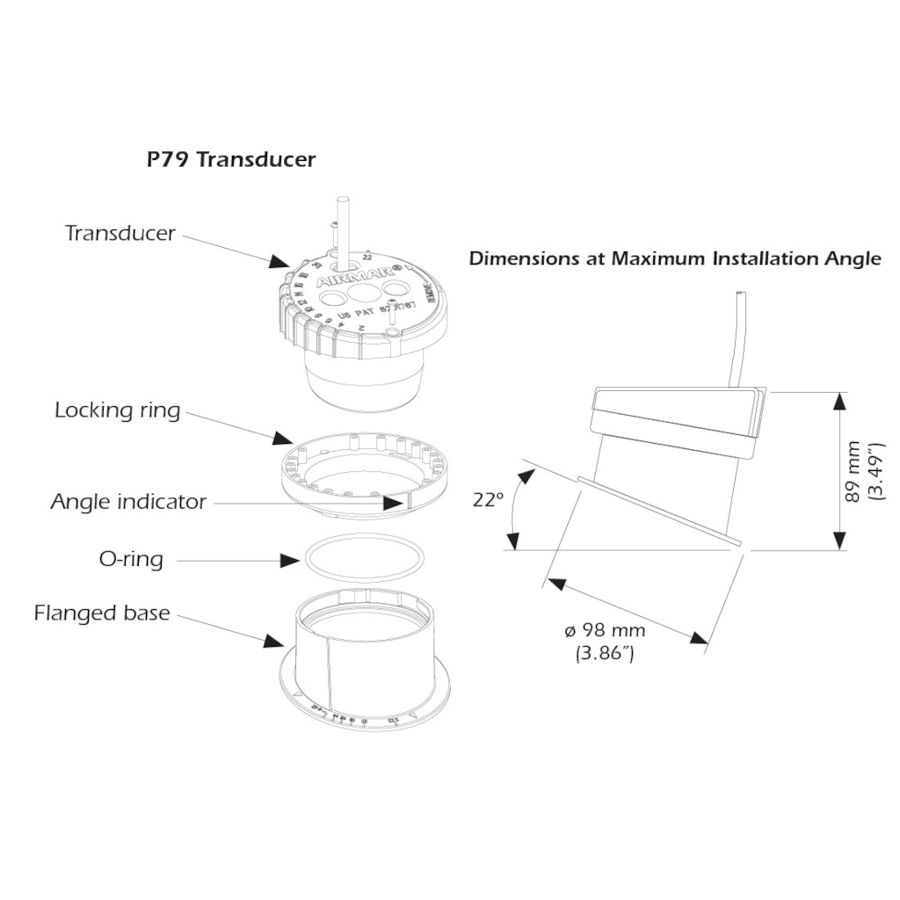

The P79S includes a plastic mounting base which is aligned to the centerline and secured inside the hull. Then it is filled with non-toxic antifreeze. The transducer is inserted into the base and adjusted for the proper deadrise offset, ensuring the beam will be shooting straight down for maximum echo returns. The eco-friendly coolant provides the best medium to transmit through solid fiberglass and into the surrounding water. The major benefit of an in-hull transducer is no protruding features on the exterior of the hull, making it the perfect choice for trailered or lifted boats. Designed for smaller boats up to 8 m (25′) with a solid-fiberglass hull.
Features
- Depth only
- 100 W of power
- 235 kHz frequency prevents mutual interference with other echo sounders on the vessel
- 7° beamwidth
- Depth range:
- NMEA 0183 model has maximum depth of 100 m (330′)
- NMEA 2000 model has maximum depth of 150 m (500′)
- No holes to drill
- In-hull installation can be done while the boat is in the water
- Urethane transducer with adjustable, plastic, mounting base
- Available in NMEA 0183 or NMEA 2000 protocol
- NMEA 2000 certified or NMEA 0183 cable
- Available P79 analog version
Specifications
- Acoustic Window: Layered plastic urethane (LPU)
- Common Use: Leisure/Yachting, Fishing
- Conventional Beam: 7°
- Functions: Depth
- Housing: Urethane
- Hull Material: Solid fiberglass only
- Max Deadrise: Up to 22°
- Max Deadrise Angle: 22°
- Max Depth: 100 m (330’) NMEA 0183, 150 m (500’) NMEA 2000
- Max Vessel LOA: Up to 8 m (26′)
- Mounting Style: In-Hull
- Power Rating: 60 W / NMEA 0183 & 100 W / NMEA 2000
- Retractable housing: No
- Single or Dual Frequency: Conventional Single Frequency
- Tilted Element: No
- Weight: 0.9 kg (2 lb.)
