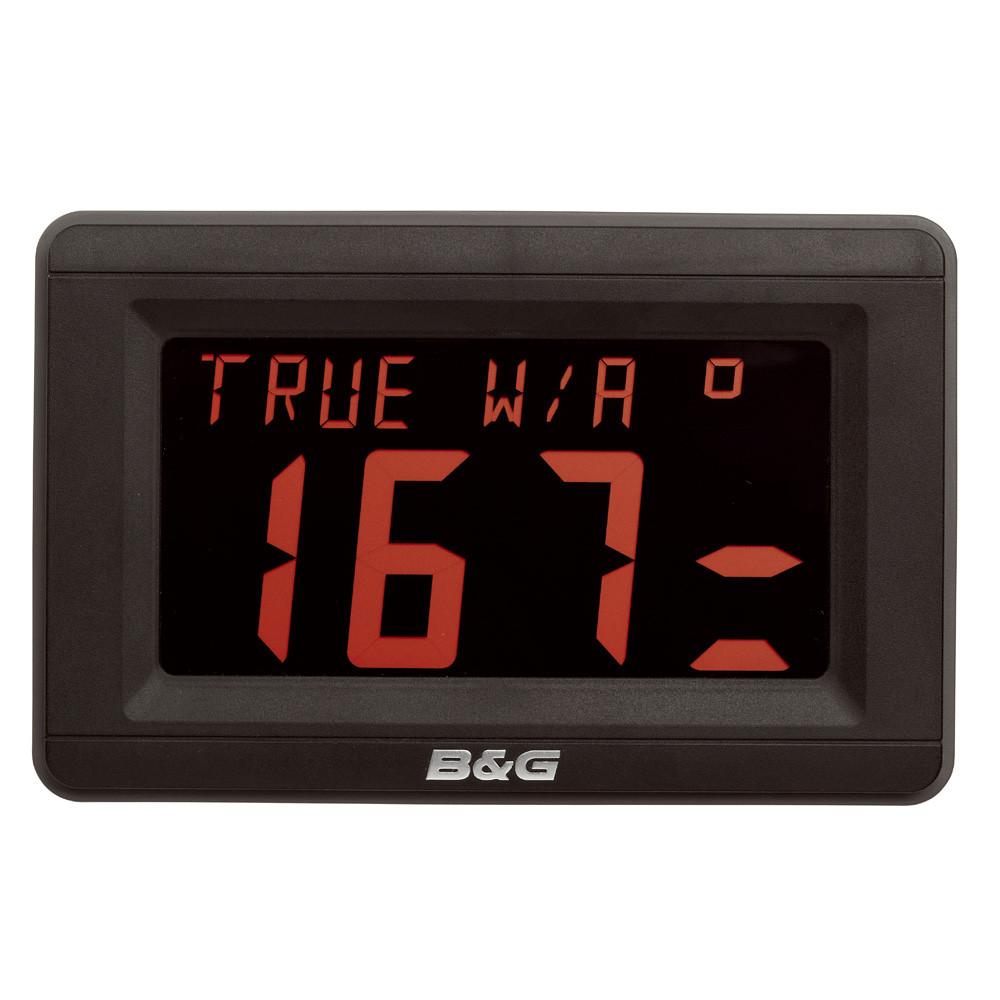

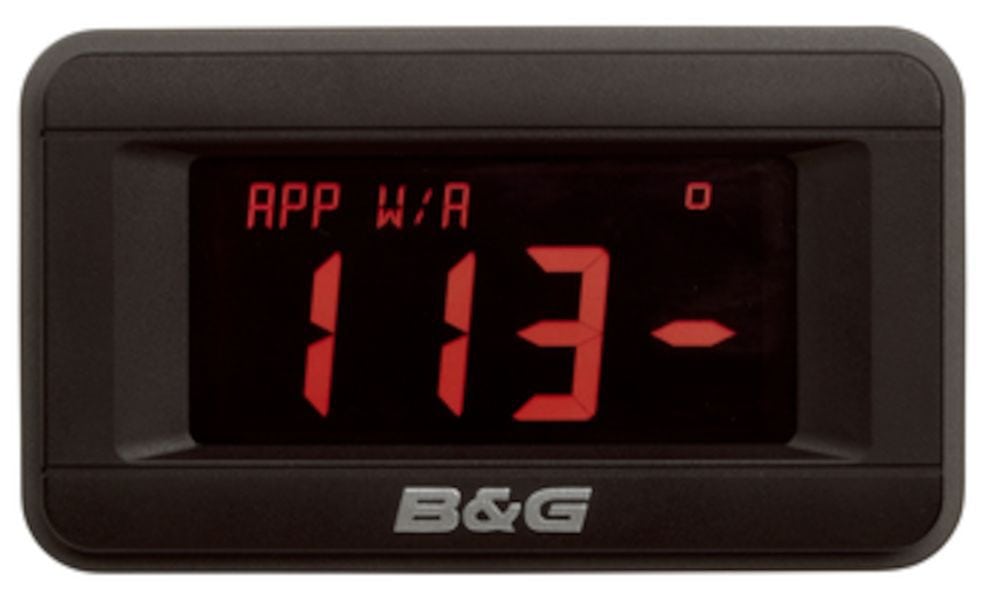

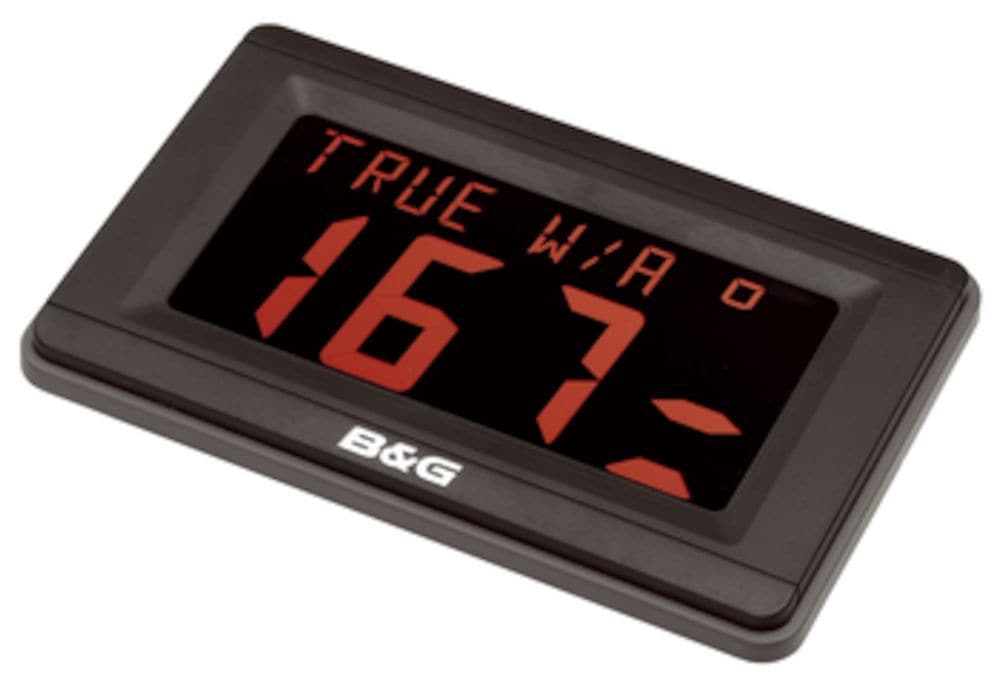

B&G 20/20HV Display pack for H5000 or Triton systems

HVision presents the clearest information through unique display technology. The 20/20HV offers a lightweight, high performance data display for every application.

Able to store 14 configurable pages, whether you want to see True Wind Angle, COG or SOG, getting the crucial information in the right place is simple.

This is the ideal display for focus areas such as pedestals and trimming positions, or an ideal mast display for yachts in the 30ft to 50ft range, with zero condensation and outstanding contrast.

• Race Proven H-Vision Technology.
• High-Contrast Optically Bonded LCD.
• Durable, lightweight alloy construction.
• Inverse “white on black” display.
• Red or White night lighting.
• Configurable from H5000 or Triton Instrument systems.
• Zero condensation.
• Extremely low power consumption.
• Fast, responsive display.
• Single network cable supplies data and power.

Approvals

Compliance	IEC/EN 60945

Connectivity

NMEA 2000	1 x NMEA2000 Micro-C port, 2 LEN

Display

Backlight Color	Red, White
Size and Type	Custom High Contrast Segmented LCD

Electrical

Power Consumption, max.	0.8W
Power Consumption, typical	0.5W
Recommended Fuse Rating	5A
Supply Voltage	12V DC (10-16V DC)
Humidity	Up to 95% RH

Environment

Operating Temperature Range	-10 to +55ºC (+14 to 131ºF)
Waterproof rating	IP67

MFD

Compass Safe Distance – Metric, imperial	200mm (7.9″)

Physical

Dimensions (W x H x D)	178 x 114 x 50mm (7 x 4.5 x 2.2″)
Mounting Type	Flush
Weight	0.9 kg (1.9 lbs)

Other

Warranty Period	2 Years
Languages	English, German, Spanish, French, Italian

Weight	0,8 kg
Dimensions	15,2 × 22,2 × 11,4 cm
Brand	B&G
SKU	000-11088-001
Family	Mast Display
GTIN	9420024123966
Model	HV 2020
Class Type	Instruments
Component	Head/Display
Item Type	Main Product
