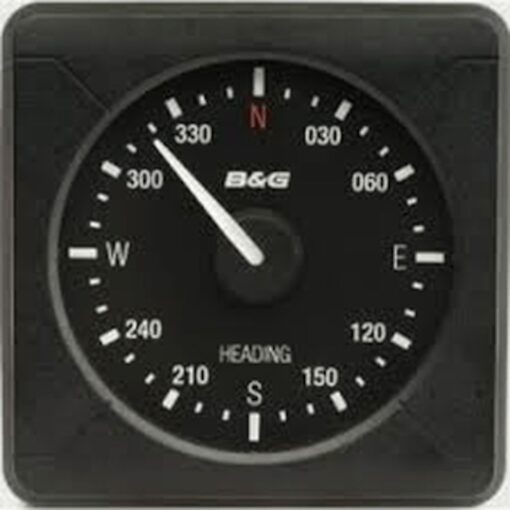

B&G H5000 Analogue Heading

The B&G H5000 Analogue Heading display provides information for offshore sailors and racers. A component in the complete B&G H5000 instrument and autopilot system line, which offers a wide range of accurate sensors, processors, and displays that can be combined to create a complete and personalized system for your vessel.

H5000 navigation, instrument and autopilot systems provide accuracy, choice and performance for offshore sailors and racers. Proven over literally millions of ocean miles, H5000 provides a wide range of displays, sensors and processors to provide a complete and personal system.

• Front mounted, low profile design.
• ‘Daisy-chain’ option for ease of installation.
• Clear night lighting.
• High integrity mechanical construction including toughened glass display window.
• Compatible with H5000 and H3000 systems.

Approvals

Compliance	IEC/EN 60945

Connectivity

N2K PGNs	127250, 130577, 129026, 127237, 127258
NMEA 2000	2 x NMEA2000 Simnet port, 2 LEN

Display

Backlight Color	White

Electrical

Recommended Fuse Rating	5A
Supply Voltage	12V DC (10-16V DC)
Humidity	Up to 95% RH

Environment

Operating Temperature Range	-10 to +55ºC (+14 to 131ºF)
Waterproof rating	IP67

MFD

Compass Safe Distance – Metric, imperial	200mm (7.9″)

Physical

Dimensions (W x H x D)	115 x 115 x 68mm (4.5 x 4.5 x 2.7″)
Mounting Type	Flush
Weight	0.5 kg (1.1 lbs)

Other

Warranty Period	2 Years

Weight	0,7 kg
Dimensions	13,3 × 14 × 12,1 cm
SKU	000-11722-001
Brand	B&G
Family	H5000
GTIN	9420024133934
Model	Analogue
Class Type	Instruments
Component	Head/Display
Item Type	Main Product
