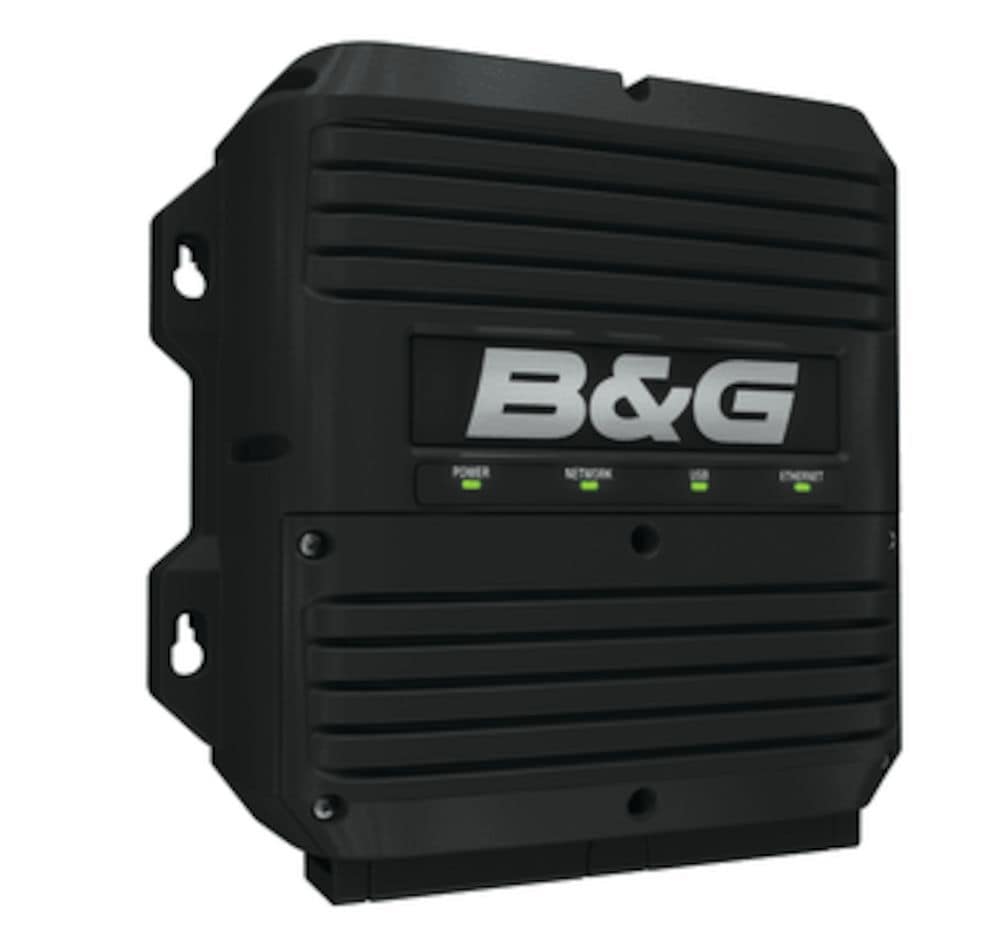

B&G H5000 CPU – Performance

The H5000 instrument system is powered by a smart Central Processing Unit (CPU), capable of running three levels of software, Hydra, Hercules and Performance. Performance is specifically designed for larger yachts. In addition to the benefits of running a CPU delivered by Hydra, plus the racing features of Hercules, Performance introduces features to facilitate the monitoring of complex systems typical of larger yachts such as support for dual wind sensors.
Additionally, the system provides support for dual rudders, including advanced features like rudder toe-in angle. Performance also monitors multiple daggerboards; port, starboard, centre and provides an active draught value (depth below the daggerboard). Further bespoke functionality delivered by Performance for sailing large yachts includes the tracking of ground wind speed and direction, Rate of Turn and enhanced polar performance targets.
It is straightforward to set up and calibrate with the new H5000 web-browser interface, however complex the system.

Key Features

-Hercules spec plus: Performance is packed with all the powerful features of the Hydra and Hercules systems, adding unique functionality for larger racing yachts and Superyachts

-User Defined Functions: This intuitive system lets you define up to 16 user functions for the ultimate in configuration flexibility.

-Enhanced Sensor Support including Dual Wind: The Performance CPU introduces features for the monitoring of more complex systems typical of larger yachts including dual wind sensors, rudders and multiple daggerboards, Ground Wind speed and direction and Rate of Turn

-Ultra-fast ARM Processor: The CPU achieves processor speeds of up to 50 times that of its predecessor, for rapid calculation, real-time data and fast updates; each with the trademark B&G precision

-GoFree™ Wireless Technology: Expand functionality even further with third-party apps and stream data via GoFree, B&G’s powerful wireless solution to remotely view H5000 instrument data via your tablet or smartphone. Requires wireless module.

-Network compatible: H5000’s highly compatible network provides peace of mind and swift, seamless integration with other instruments and electronics across the B&G marine network including AIS, radar and chartplotters

-Browser-based set-up: The CPU features browser-based setup via the new H5000 interface for fast, efficient and hassle-free commissioning and calibration

LED status indicators: Status indicators on the CPU provide a clear indication of system status.

• Powerful central processor provides all core instrument calculations.
• Enhanced feature set for large/superyachts.
• B&G Performance Wind Filter.
• Integrated webserver provides easy access to system configuration and control.
• Backup/restore config. feature.
• Dedicated interfaces for wind, speed, Man Overboard, alarm output.
• Ethernet Interface.
• Industry standard compatible CAN network.
• 2 configurable, di-directional NMEA 0183 ports.
• 4 configurable 0-5V analogue inputs.
• USB Service port for software update.

Approvals

Compliance	IEC/EN 60945

Connectivity

NMEA 0183 Sentences supported	Input: GGA, GLL, RMA, RMB, RMC, VTG, ZDA, VBW, APB, BOD, BWC, GSA, GSV, AAM, DPT, HDT, HDG, XTW, MWV, THS, XDR, MTW. Output: GGA, GLL, RMB, RMC, VTG, ZDA, VBW, APB, BWC, GSA, GSV, AAM, VHW, VLW, DPT, HDT, HDG, ROT, XTE, MWV, THS, XDR, MTW, MWD, VDR
Ethernet	1 x 100 Mbit
NMEA 0183	2x Tx, 2x Rx NMEA 0183, Baud Rates 4,800 – 115,200. (Optional cable required)
NMEA 2000	1 x NMEA2000 Micro-C port, 1 LEN
PC Connectivity	1x Ethernet (webserver), 1x USB (software update)

Electrical

Power Consumption, typical	2.4W
Recommended Fuse Rating	5A
Supply Voltage	12V DC (9-16V DC)

Environment

Operating Temperature Range	-10 to +55ºC (+14 to 131ºF)
Waterproof rating	IPX5

MFD

Compass Safe Distance – Metric, imperial	300mm (1.0′)

Physical

Dimensions (W x H x D)	211 x 196 x 66mm (8.3 x 7.7 x 2.6″)
Weight	0.7 kg (1.6 lbs)

Other

Warranty Period	2 Years
Interface	Webserver
Languages	English

Weight	1,1 kg
Dimensions	22,5 × 26 × 13 cm
Brand	B&G
SKU	000-11547-001
Family	H5000
GTIN	9420024130360
Model	CPU
Class Type	Instruments
Component	Processor/Computer/Ethernet Module
Item Type	Main Product
