B&G H5000 Graphic Display

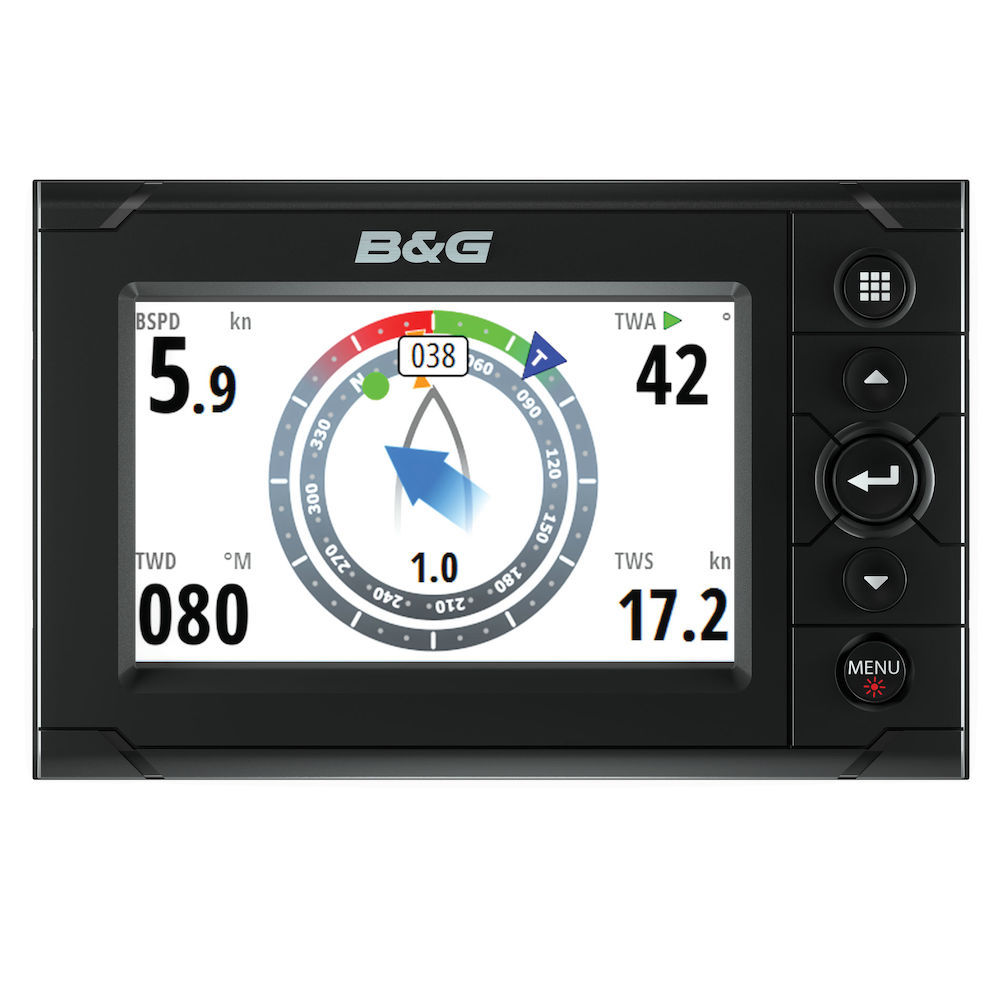

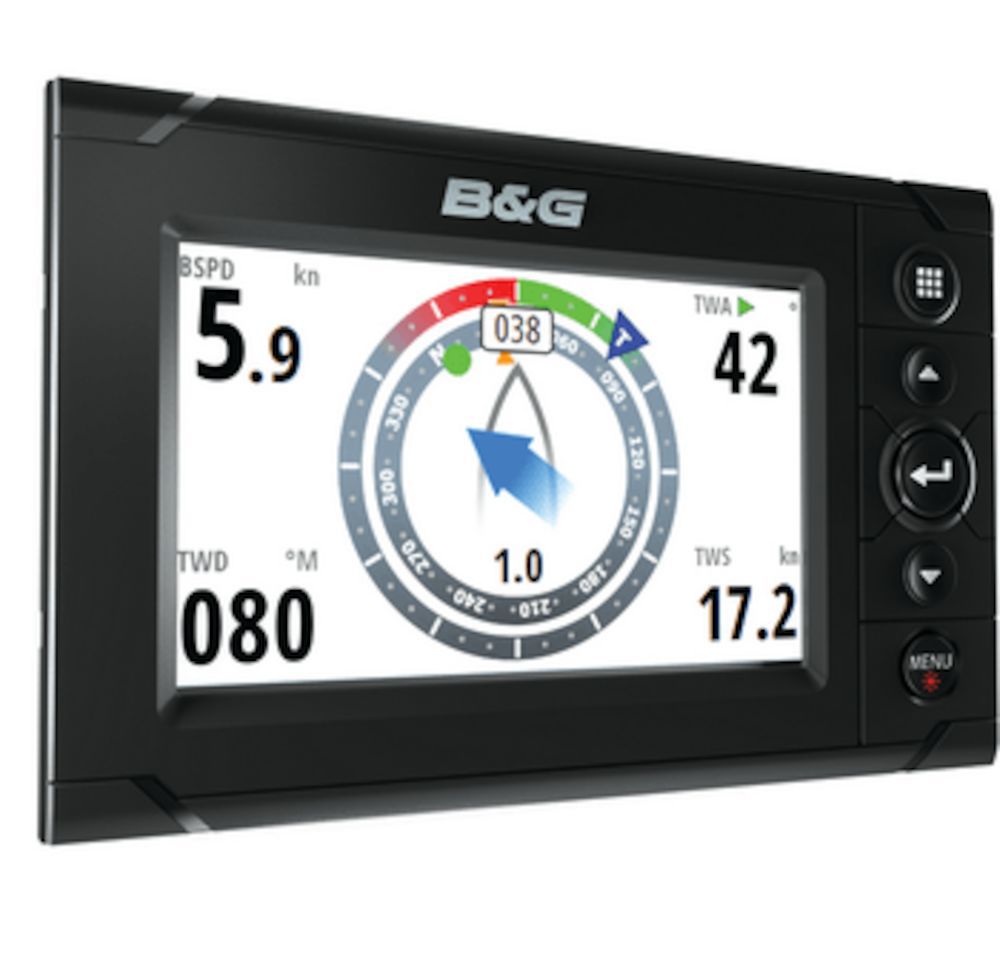

The H5000 Graphic Display is a powerful 5-inch, sunlight viewable, colour display with a straightforward user interface. Enjoy extremely wide viewing angles while displaying your sailing data in digital or graphical form. Designed for sailing, it is packed with unique features including SailSteer, Start Line, WindPlot, Laylines, MOB and more. It is glass bonded for zero condensation and enhanced contrast. NMEA compatible, use the Graphic Display as the main visual information hub of your H5000 system or as a full-colour alternative to a Race Display.

The Display uses an incredibly small amount of power, yet is the brightest and clearest display in its class. Refresh rates of up to 10Hz are possible using its modern ARM processor. It is packed with the popular features of its predecessor, the H3000, while modernising it for simpler operation and enhanced graphic capabilities. With no external metal parts, the durable H5000 Graphic Display is completely corrosion resistant. And, after dark you can dim the backlight to almost zero for outstanding low light viewing.

-Unique Sailing Features: SailSteer, Start Line, WindPlot for tracking weather trends, Laylines, MOB and more to enhance your racing or cruising experience

-Smart, Straightforward Menus: Completely redesigned operating system provides straightforward access to powerful, easy to understand, sailing features.

-Bright, Colour Display: Tough bonded glass, AR coated, 5-inch colour display; sunlight viewable by day and with backlight dimming down to almost zero for comfortable night time viewing

-Seamless networking: The H5000 Graphic Display is NMEA 2000® compatible for ease of integration into H5000 systems and your existing network.

-Tough design:built to last: Tough, corrosion free, thermoplastic and glass construction providing you with the peace of mind it can weather the elements – whether the spray of the race or the heat of the sun

-Ultra-Fast ARM Processor: Fast, modern ARM processor provides the power to deliver smooth graphical displays at refresh rates of up to 10Hz.

• High-Contrast Optically Bonded LCD.
• 5″ sunlight viewable, colour graphic, wide-screen display.
• Straight-forward, context-sensitive, user interface.

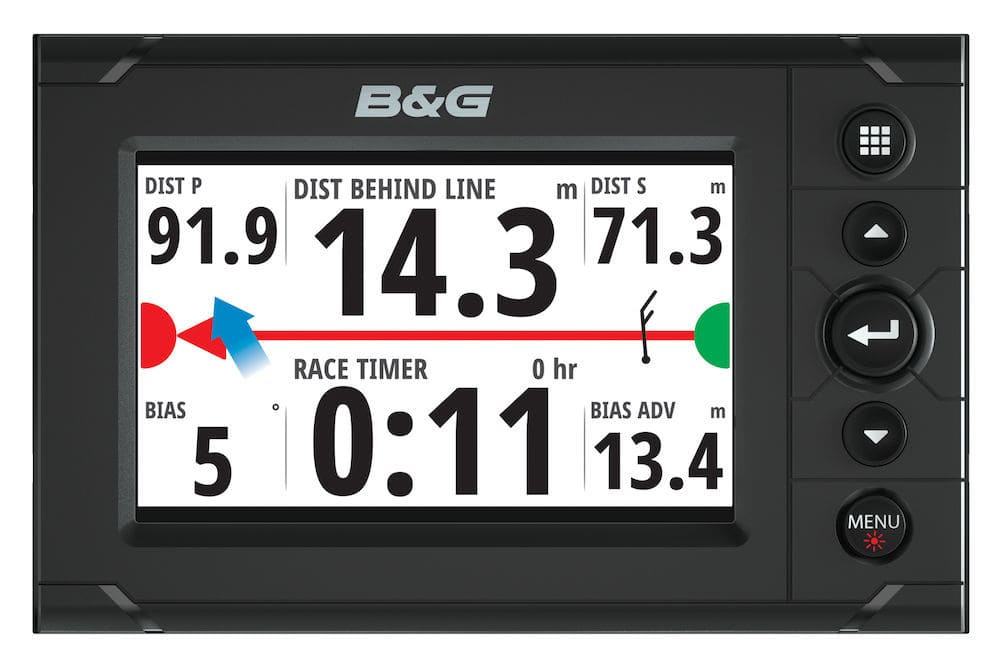

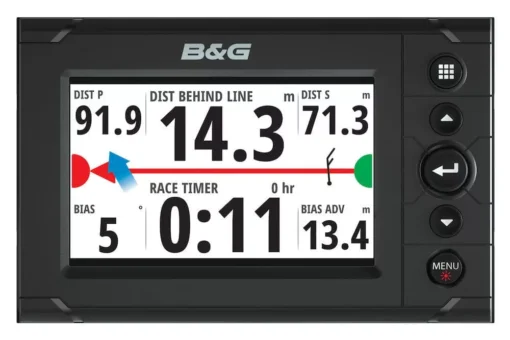

• Unique sailing features including SailSteer and Start Line.
• Robust, lightweight ABS construction.
• Core H5000 setup and calibration control.

Approvals

Compliance	IEC/EN 60945

Connectivity

NMEA 0183 Sentences supported	N/A
Bluetooth	No
NMEA 0183	No
NMEA 2000	1 x NMEA2000 Micro-C port, 4 LEN
PC Connectivity	No
WiFi	No

Display

Backlight Color	Red, White, Green, Blue
Resolution	480 x 272
Size and Type	5.0″, Transmissive TFT-LCD

Electrical

Power Consumption, max.	2.4W
Power Consumption, typical	1.9W
Recommended Fuse Rating	5A
Supply Voltage	12V DC (10-16V DC)

Environment

Operating Temperature Range	-10 to +55ºC (+14 to 131ºF)
Waterproof rating	IPX7

MFD

Compass Safe Distance – Metric, imperial	300mm (1.0′)

Physical

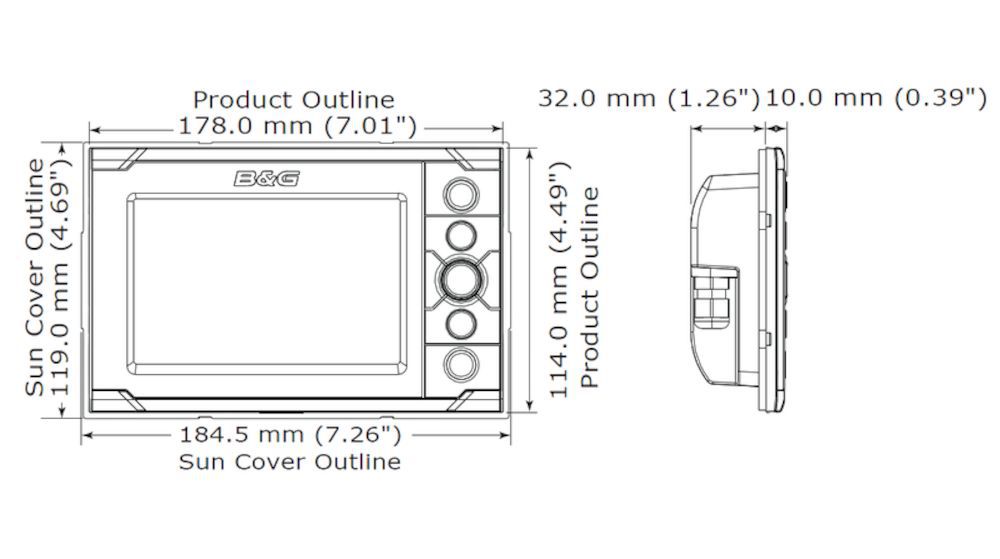

Dimensions (W x H x D)	172 x 114 x 40mm (6.8 x 4.5 x 1.6″)
Mounting Type	Flush
Weight	0.45 kg (1 lbs)

Other

Warranty Period	2 Years
Interface	keypad
Languages	English, German, Spanish, French, Italian

Weight	0,6 kg
Dimensions	15,2 × 22,2 × 11,4 cm
Brand	B&G
SKU	000-11542-001
Family	H5000
GTIN	9420024130315
Model	Graphic
Class Type	Instruments
Component	Head/Display
Item Type	Main Product
