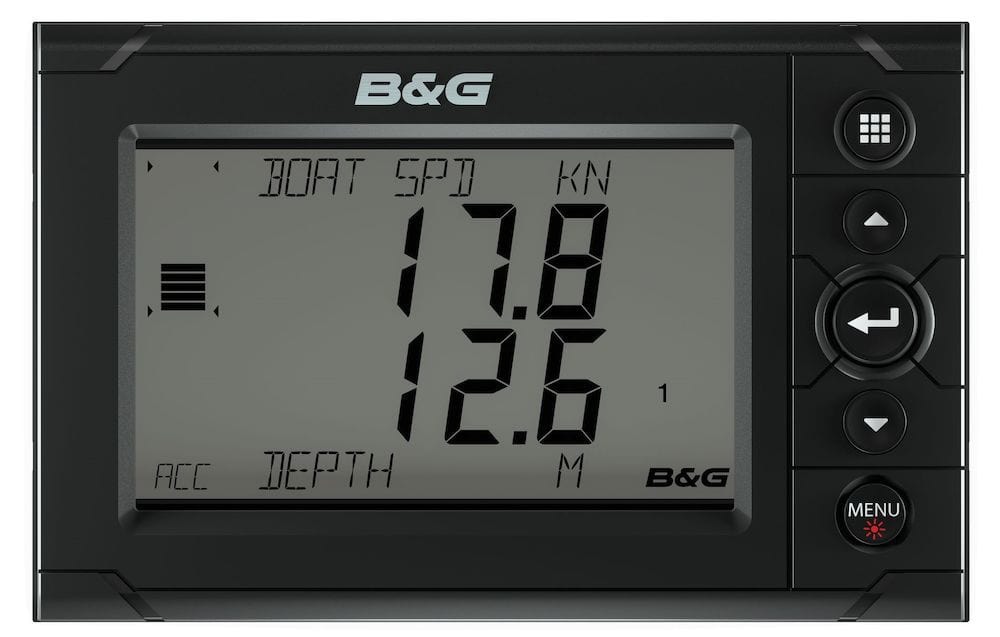

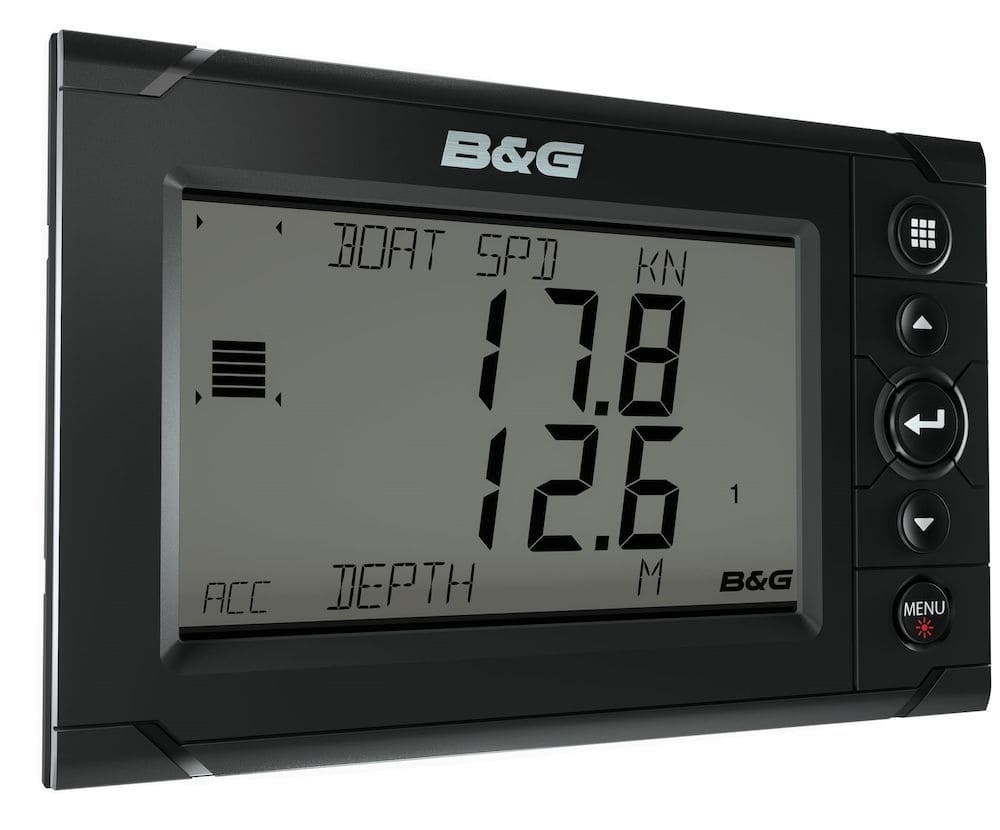

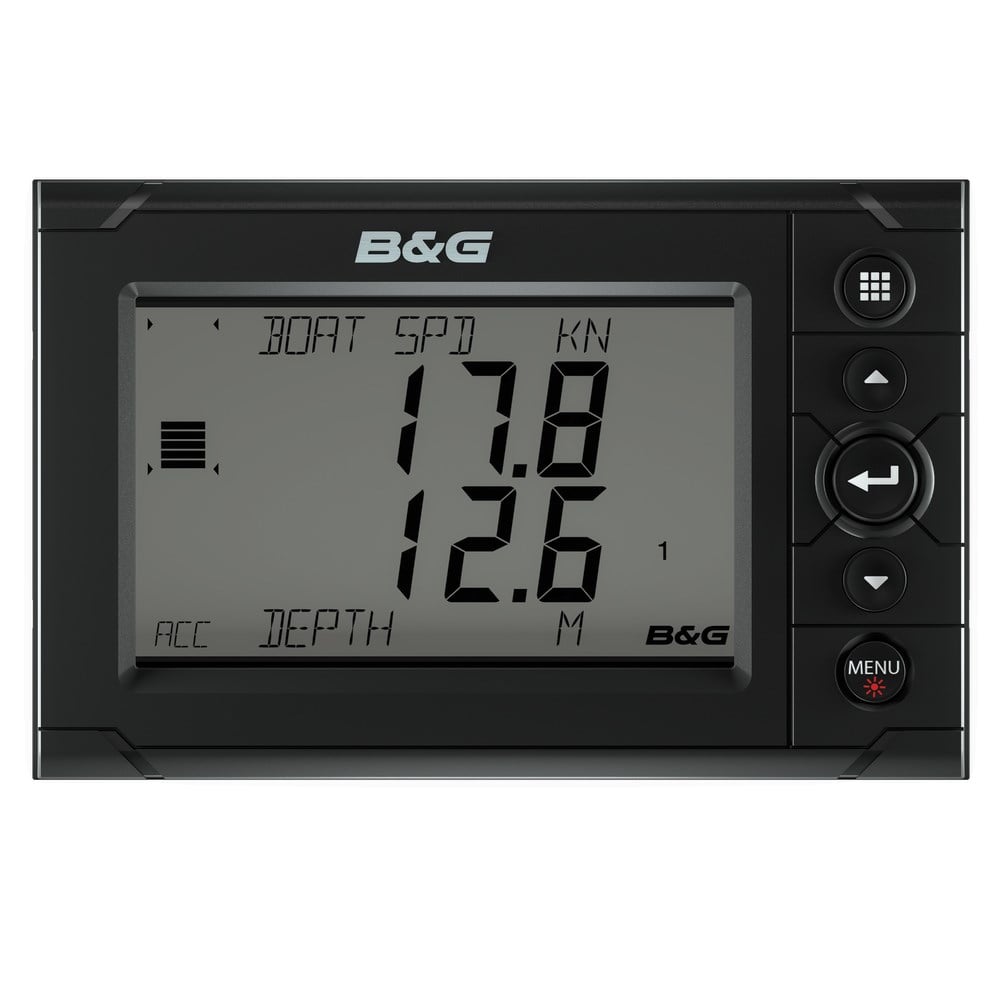

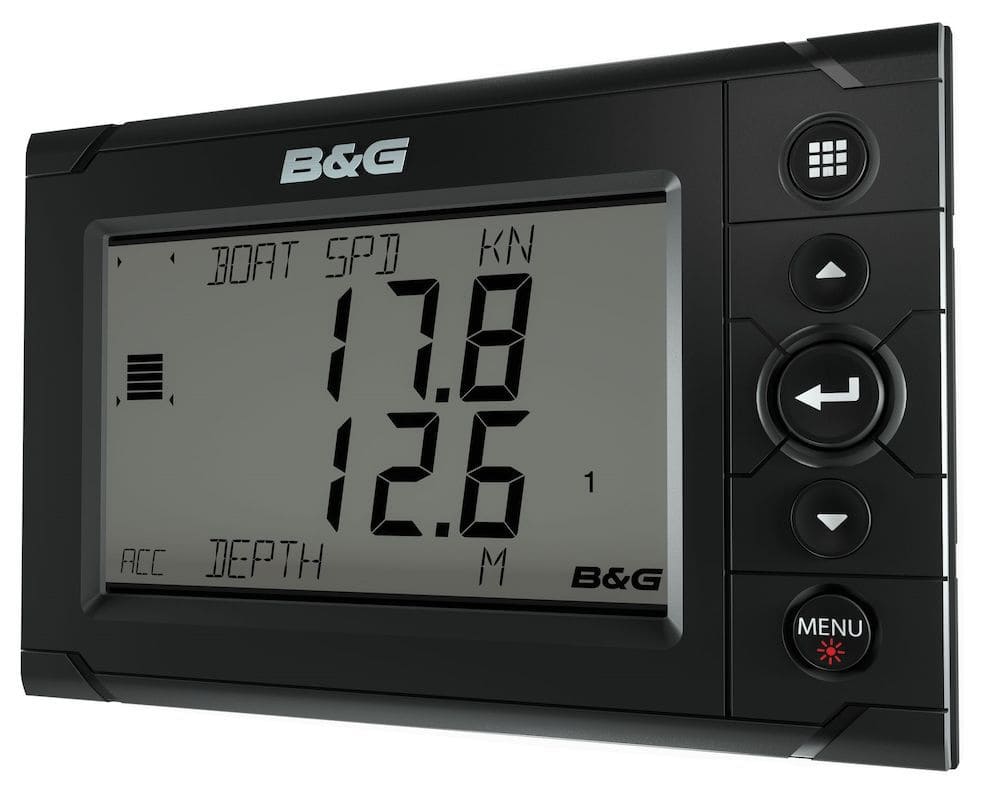

B&G H5000 Race Display

The H5000 Race Display features a large, clear, 5-inch screen, designed for viewing essential data at a glance. A dedicated page key allows quick switching between stored pages which each display 2 data values, updated at rates of up to 10Hz, alongside a unique bar graph providing immediate visual indication of performance targets, countdown timer status and more.

The Race Display is straightforward to install either alongside other H5000 system components, as a display for the highly accurate H5000 CPU data, or as part of a new or existing NMEA 2000® compatible network. With no external metal parts, the durable H5000 Race Display is completely corrosion resistant. It is glass bonded for zero condensation and enhanced contrast.

Key Features

-Bright, 5-inch bonded LCD display: The transflective H5000 Race Display is highly visible both in bright sunlight and at night.
-Visual Target Indicator: The Race Display’s unique bar graph gives you an instant visual on target data, start time and more.
-Low Power: Incredibly low power draw – perfect for offshore racing and blue water cruising
-Tough design – built to last: No external metal parts and completely corrosion resistant, providing you with the peace of mind it can weather the elements – whether the spray of the race or the heat of the sun
-Seamless networking: The H5000 Race Display is NMEA 2000® compatible for ease of integration into your existing network

• Extremely High-Contrast Optically Bonded LCD.
• 5″ sunlight viewable, segmented monochrome, wide-screen display.
• Straight-forward user interface.
• System status icons.
• Bargraph option for graphical view of selected data.
• Robust, lightweight ABS construction.
• HV, Race TImer and backlight control for H5000.

Approvals

Compliance	IEC/EN 60945

Connectivity

NMEA 2000	1 x NMEA2000 Micro-C port, 2 LEN

Display

Backlight Color	Red, White
Size and Type	5.0″, Transfective – 7 segment LCD

Electrical

Power Consumption, max.	1.0W
Power Consumption, typical	0.6W
Recommended Fuse Rating	5A
Supply Voltage	12V DC (10-16V DC)

Environment

Operating Temperature Range	-10 to +55ºC (+14 to 131ºF)
Waterproof rating	IPX7

MFD

Compass Safe Distance – Metric, imperial	300mm (1.0′)

Physical

Dimensions (W x H x D)	172 x 114 x 40mm (6.8 x 4.5 x 1.6″)
Mounting Type	Flush
Weight	0.45 kg (1 lbs)

Other

Warranty Period	2 Years
Interface	keypad
Languages	English, German, Spanish, French, Italian

Weight	0,6 kg
Dimensions	15,2 × 22,2 × 11,4 cm
Brand	B&G
SKU	000-11543-001
Family	H5000
GTIN	9420024130322
Model	Race Display
Class Type	Instruments
Component	Head/Display
Item Type	Main Product
