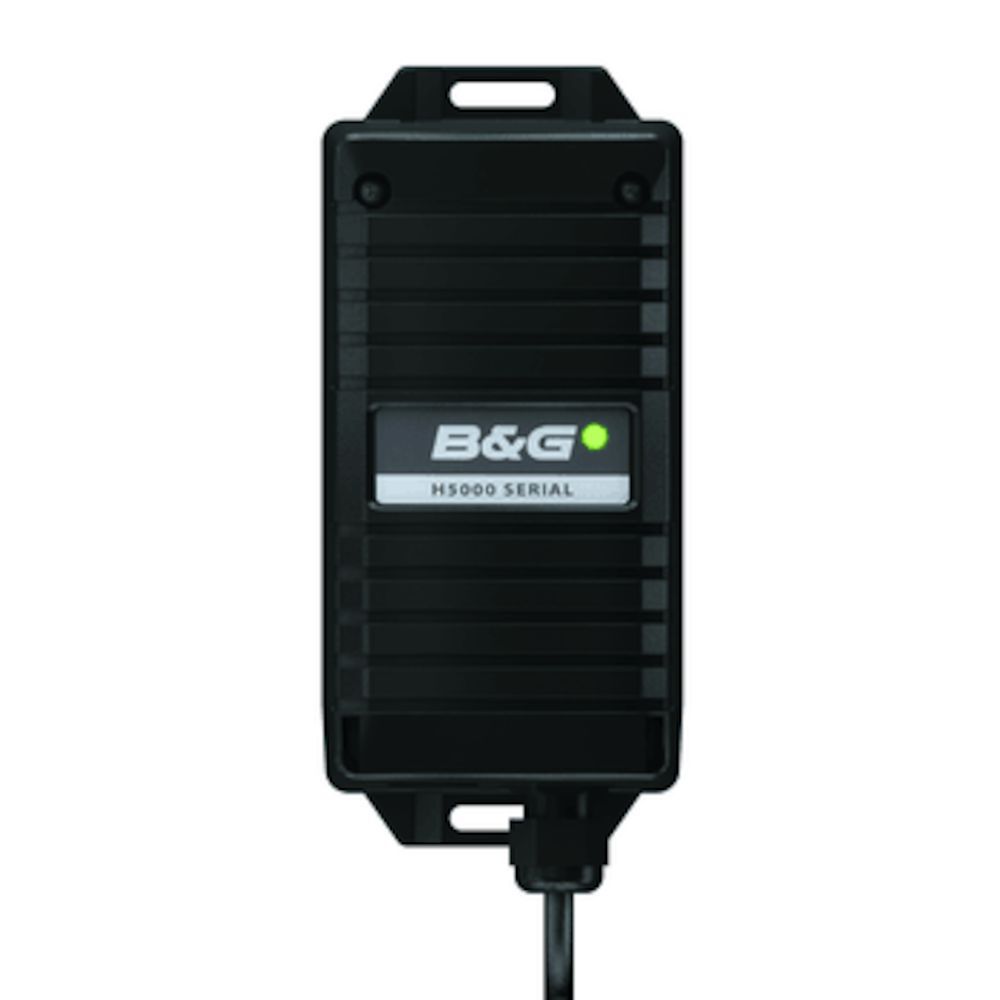

B&G H5000 Serial Expansion

Allows expansion of an H5000 system to enable additional serial interfacing options. Typically used for interfacing HGSC compass, GPS units, Gyro Compasses and other NMEA 0183 devices.

The H5000 CPU, calculating precise data up to 50 times faster than its predecessor, provides Hydra, Hercules and Performance level software options tailored for all users from serious cruisers to professional racers.

This powerful 5-inch, sunlight viewable, colour display with a straightforward user interface is packed with unique sailing features including SailSteer and Start Line. From clever sailing algorithms, including B&G’s unique boat motion corrections, to dedicated start line features, the H5000 won’t be beaten.

• 2x bi-directional Serial ports.
• Configurable NMEA 0183 input/output sentences.
• Configurable baud rate and data update rates.
• Support for HGSC Compass.
• Configuration via H5000 CPU web browser.
• Industry standard compatible CAN network.

Approvals

Compliance	IEC/EN 60945

Connectivity

NMEA 0183	2x Tx, 2x Rx NMEA 0183, Baud Rates 4,800 – 115,200. (Optional cable required)
NMEA 2000	1 x NMEA2000 Micro-C port, 1 LEN

Electrical

Power Consumption, typical	0.6W
Recommended Fuse Rating	5A
Supply Voltage	12V DC (10-16V DC)

Environment

Operating Temperature Range	-10 to +55ºC (+14 to 131ºF)
Waterproof rating	IP66

Physical

Dimensions (W x H x D)	61 x 131 x 45mm (2.4 x 5.2 x 1.8″)
Weight	0.17 kg (0.37 lbs)

Other

Warranty Period	2 Years
Interface	via Webserver on CPU

Weight	0,4 kg
Dimensions	15,2 × 22,2 × 11,4 cm
SKU	000-11726-001
Brand	B&G
Family	H5000
GTIN	9420024133972
Model	Expansion Module
Class Type	Instruments
Component	Processor/Computer/Ethernet Module
Item Type	Main Product
