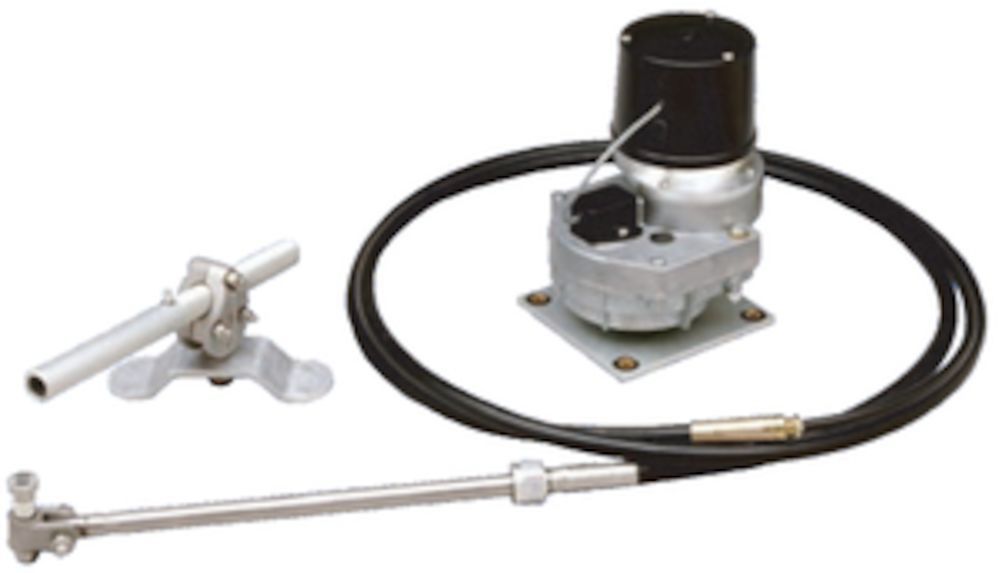

B&G SD10 Mechanical Drive unit for sailboat 25’-37’
1.130,13€
SD10 Mechanical Drive unit for sailboat 25’-37’ with 6’ steering cable with electromagnetic clutch with override function, built in Rudder feedback and 12 V power supply (AC12 required).
Detailed Information
Product Description
Highly Accurate
Minor incremental adjustments provide a smooth auto-steering experience.
Powerful
180kg of cable thrust ensures the rudder moves, even under heavy loads.
Easy & Economical
Reduce the price of your installation with this cost effective package.
12V DC Power Supply
Integrated Rudder Feedback The built-in rudder feedback unit ensures gentle and accurate steering.
B&G Construction
Brutally strong and built to withstand the environment.
Product Details
- Highly Accurate.
- Powerful.
- Easy & Economical.
- 12V DC Power Supply.
- Integrated Rudder Feedback.
- Simrad Yachting Construction.
Product Specifications
Autopilot
| Max Boat Displacement | 6500 kg (14300 lbs) |
|---|---|
| Max Boat Length | 37 ft |
| Maximum Thrust | 180 kp |
| Max Stroke | 305mm (12,0″) |
| Max Torque | 45 kgm |
Electrical
| Power Consumption, max. | 7A |
|---|---|
| Power Consumption, typical | 2A |
| Supply Voltage | 2-12 VDC from AP Computer |
Environment
| Operating Temperature Range | -15 to +55C (5 to 131F) |
|---|---|
| Storage Temperature Range | -40 to +85C (-40 to +185F) |
| Waterproof rating | IPx2 |
MFD
| Compass Safe Distance – Metric, imperial | 1,5m (4,9 ft) |
|---|
Physical
| Dimensions (W x H x D) | 170 x 220 x 140 mm (6,7 x 8,7 x 5,5″) |
|---|---|
| Mounting Type | Deck or bracket |
| Weight | 4,9kg (10,8 lb) |
Other
| Warranty Period | 2 years |
|---|
Additional information
| Weight | 9,977 kg |
|---|---|
| Dimensions | 40,656 × 66,701 × 18,422 cm |
| Brand | |
| Family | |
| Model | |
| Class Type | |
| Component | |
| Item Type |
