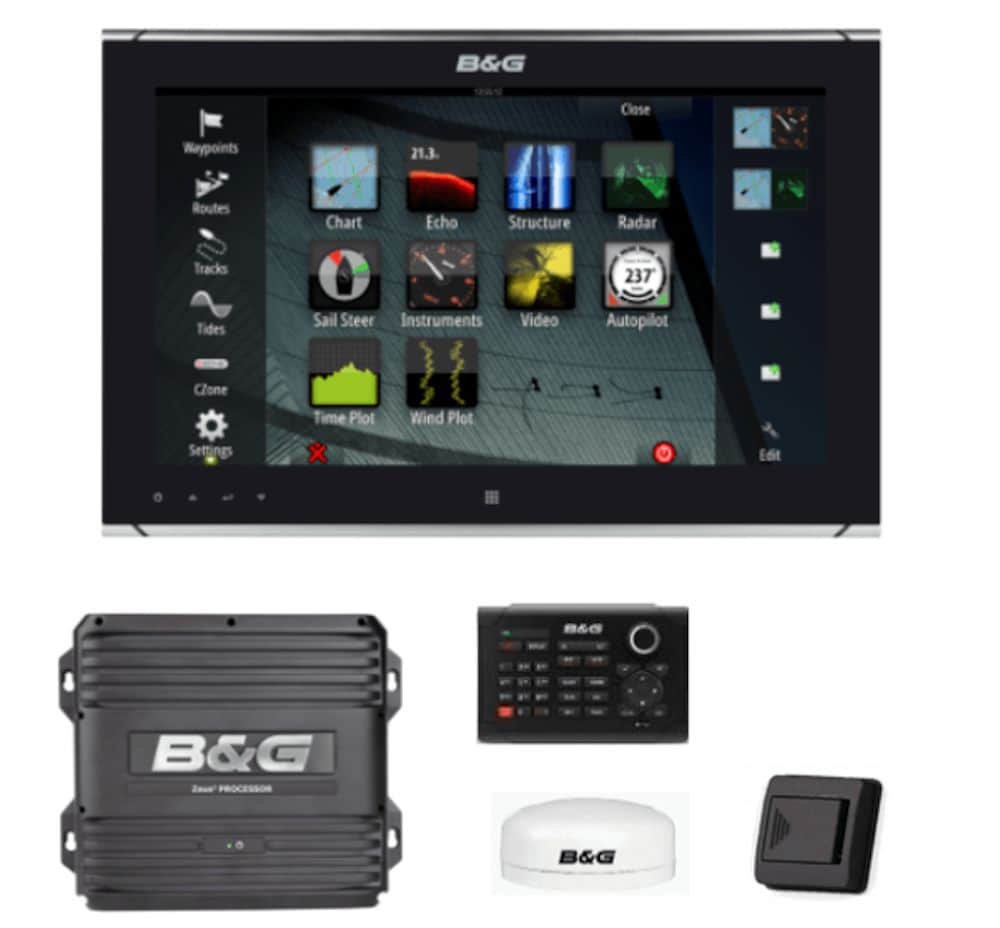

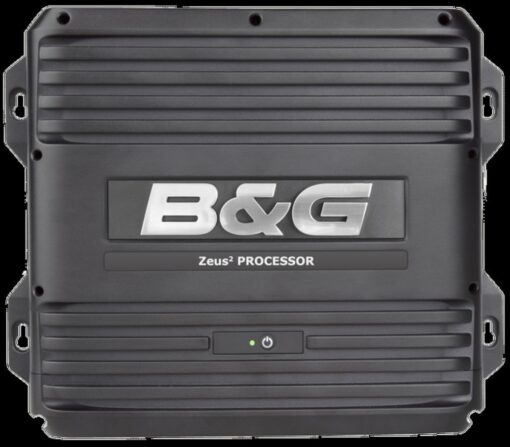

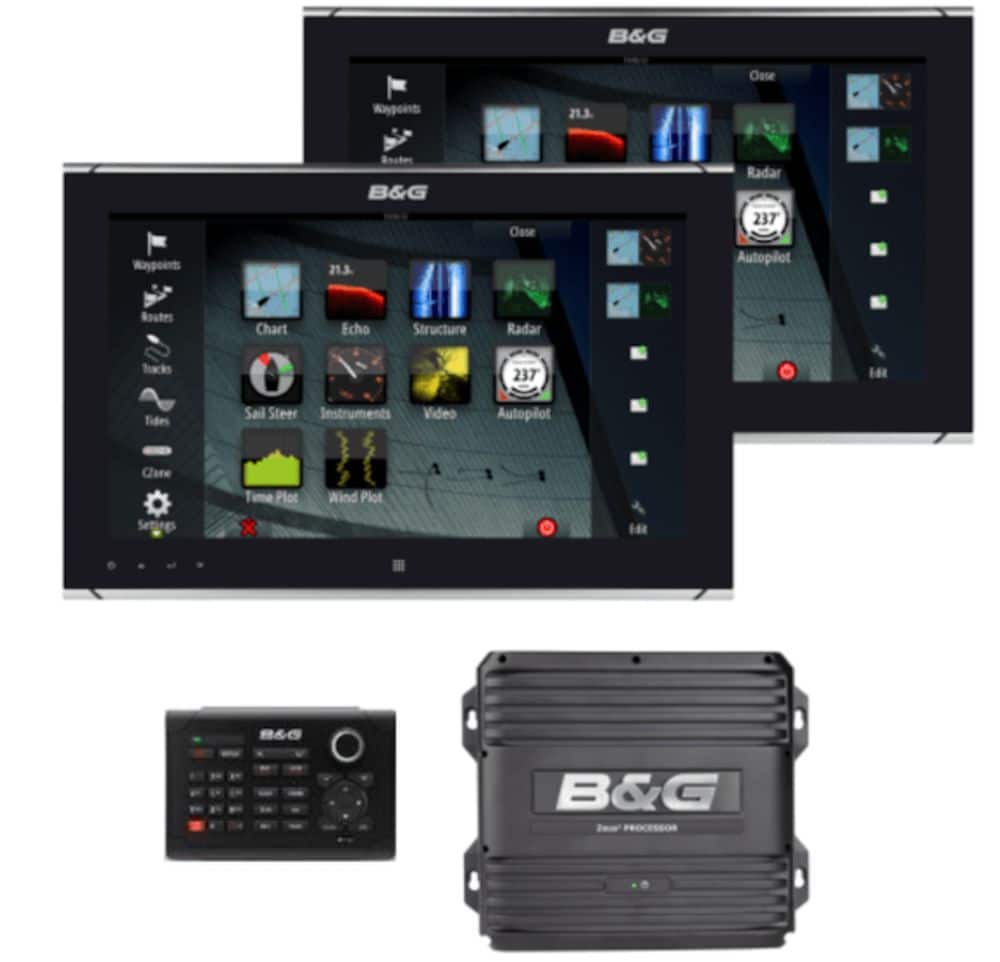

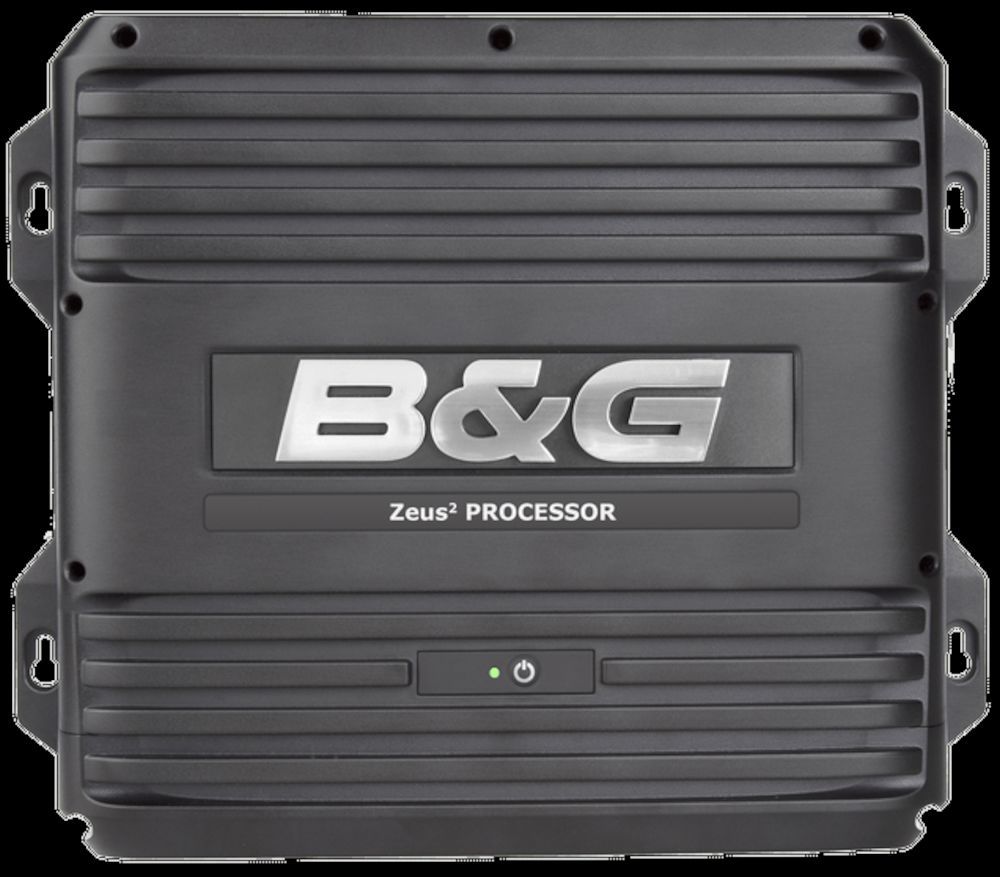

B&G ZEUS² 16 Glass Helm with ZM16-T Monitor, ZC1 Remote, ZG100 GPS antenna

Zeus2 Glass Helm System Overview

The Zeus2 Glass Helm navigation system is B&G’s latest multifunction display offering for large cruising and performance sailboats. The Zeus2 Glass Helm system integrates seamlessly with current B&G displays, Autopilots, Radar, Echosounders and instrument systems. Zeus2 is available with 16” and 19” widescreen displays to integrate with the largest of luxury helm stations.

Zeus2 Glass Helm System Key Features

-Large screen navigation system
-Dual independent video outputs
-Full HD video outputs
-Performance module integration
-Small, lightweight design
-Quad core processors for fast operation
-Cartography choices
-Controller options
-High bright multi-touch monitors available in 16” & 19”
-Widescreen displays
-Integrates with the new H5000 systems

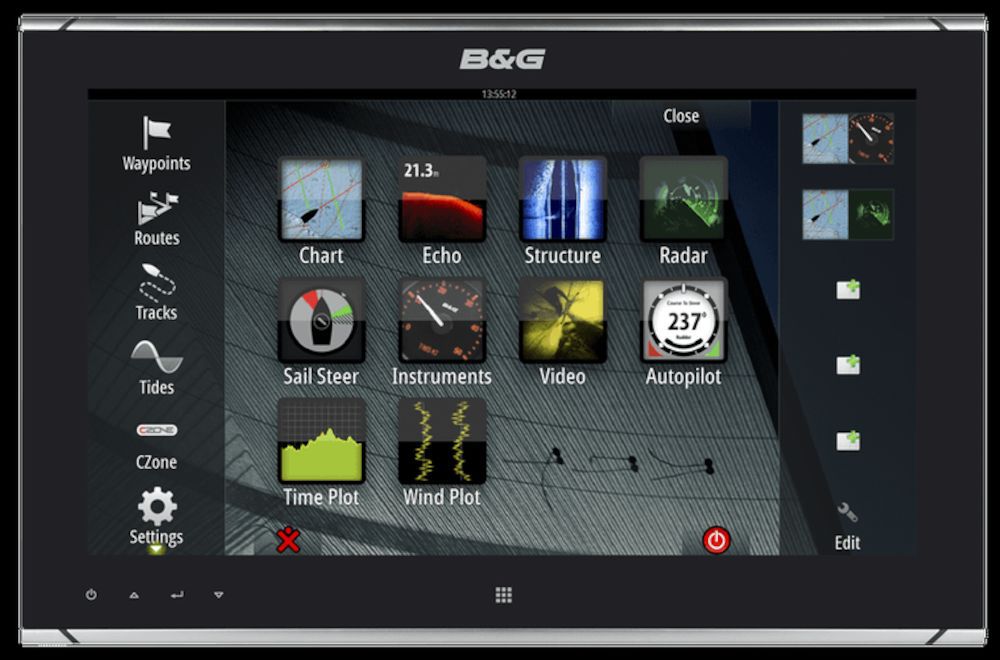

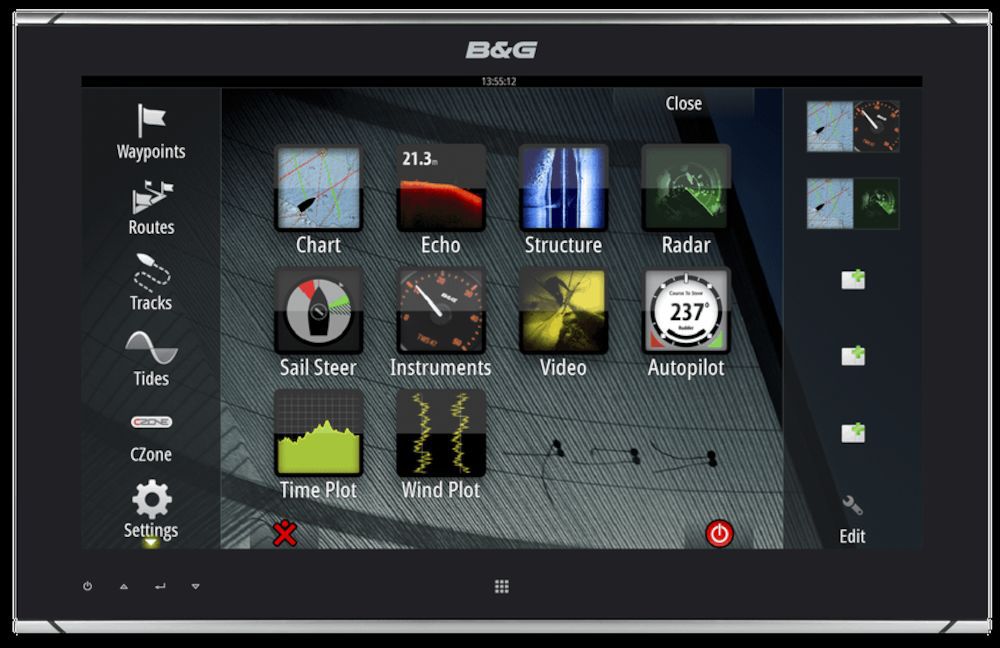

New User Interface Software for Zeus2

All new Zeus2 Software has been engineered for ease of use and to maximise the benefits of widescreen multi-touch display technology
-Zeus2 has been designed for mixed-mode user control to provide a powerful multi-touch user interface that can also be operated by a ZC1 remote when the sea conditions get challenging
-Zeus2 software is more customisable, allowing users to completely configure the system to their needs: Personalised Wallpaper: Fully customisable favourites that can be accessed by a long press of the ‘Home’ key
-Zeus2 utilizes multi-touch gestures for object manipulation and menu access. These types of controls are mainstream in todays Tablet/Smartphone market and very intuitive and easy to adapt to:Pinch to zoom Chart controls: Drag the status bar down from the top of the display to access system controls
-ZC1 Remote, Keyboard and Trackball controllable

Cartography Options

Choose from the many available Cartography options on offer to best suit your Location and usage
-C-MAP MAX-N
-Navionics
-Insight
-Insight Genesis
-NV Digital Charts

Zeus2 is fully compatible with the new B&G H5000 System, allowing seamless data sharing.
-Key integration features include:Use H5000 as a high-accuracy source of sailing data, including True Wind, Polar Targets* and advanced sensor data
-H5000 Calibration, including:True Wind Angle, True Wind Speed
-Configure Polar Tables (*H5000 Hercules and Performance levels only)
-Trip Log synchronisation with H5000 CPU
-Race Timer synchronisation with H5000 CPU
-H5000 based tide calculations for improved accuracy
-H5000 Motion sensor, Barometric pressure sensor and MHU can be configured from Zeus2
Language Packs

-Standard Language Pack:

English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch,Norwegian, Portuguese, Swedish

-Asian Language Pack:

English (US), Japanese, Korean, Thai, Chinese,

-Eastern European Language Pack:

English (US), English (UK), Bulgarian, German, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Lithuanian, Latvian, Polish, Slovak, Turkish

-Russia/Ukraine Language pack:

English (US), English(UK), German, Spanish, French, Italian, Russian, Ukrainian

Middle Eastern Language Pack:

English (US), English (UK), Arabic, German, Spanish, Farsi, French, Italian

• 15.6″ high-bright widescreen multi-touch display.
• Quad core processor with dual independent HD video out (additional purchase required for 2nd display).
• Integrates with current B&G instruments, Pilots, displays, sensors and radars.
• Packed with award winning sailing features like SailSteer, Laylines & Sailing Time.
• Cartography options includes C-Map, Navionics, Insight and NV Digital Charts.
• GoFree™ wireless technology for online chart downloads, map creation, and smartphone/tablet integration (requires optional Wi-Fi module).

Approvals

Compliance	CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1

Autopilot

Manouevres / Turn Patterns	U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking
Steering Modes	Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail)

Connectivity

NMEA 0183 Sentences supported	Input: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, HDT, HDM, MWV, MWD, DSC, DSE, VDM. (Note AIS sentences are not bridged to or from NMEA 2000) Output: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, MWV, MWD, TLL, TTM
Bluetooth	No
Ethernet	3 x RJ45 1 Mbit ports, max 3 MPU on network
N2K PGNs	Receive only 59392 ISO Acknowledgement, 59904 ISO Request, 60928 ISO Address Claim, 65285 Temperature with Instance, 65323 Data User Group Request, 65325 Reprogram Status, 65341 Autopilot Mode, 65480 Autopilot Mode, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127503 AC input status, 127504 AC Output Status, 127505 Fluid Level, 127506 DC Detailed Status, 127507 Charger Status, 127508 Battery Status, 127509 Inverter Status, 129033 Time & Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Addressed Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 129809 AIS Class B “CS” Static Data Report, Part A, 129810 AIS Class B “CS” Static Data Report, Part B, 130313 Humidity, 130314 Actual Pressure, 130576 Small Craft Status, 130842 SimNet DSC Message, 130851 Event Reply, 130817 Product Info, 130820 Reprogram Status, 130832 Fuel Used – High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130843 Sonar Status, Frequency and DSP Voltage, Transmit and Receive: 61184 Parameter Request/Command, 65289 Trim Tab Insect Configuration, 65291 Backlight Control, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 126208 ISO Command Group Function, 126992 System Time, 126996 Product Info, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, Water referenced, 128267 Water Depth, 128275 DistanceLog, 129025 Position, Rapid Update, 129026 COG & SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats in View, 130074 Route and WP Service – WP List – WP Name & Position, 130306 Wind Data, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130831 Suzuki Engine and Storage Device Config, 130835 SetEngineAndTankConfiguration, 130839 Pressure Insect Configuration Transmit only 65287 Configure Temperature INSOcts, 65290 Paddle Wheel Speed Configuration, 129285 Route/Waypoint Data, 130818 Reprogram Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Insect Configuration, 130837 Fuel Flow Turbine Configuration
NMEA 0183	2 x Transmit, 2 x Receive NMEA 0183, One on each display head. Baud Rates 4800, 9600, 19200, 38400. TX and RX use same baud rate. Optional data cable required (P/N 000-11247-001)
NMEA 2000	1 x NMEA 2000 Micro-C port, 1 LEN
PC Connectivity	No
Video	Inputs: 2 x composite (BNC connectors) inputs. PAL or NTSC: Output 1 x HDMI
WiFi	Compatible with WIFI-1 external module

Display

Resolution	Output Resolutions 1366×768 (WXGA), 1920×1080 (Full HD 16:9), 1920×1200 (WUXGA 16:10), 1280×800 (16:10), 1280×1024 (SXGA 5:4)

Electrical

Power Consumption, max.	45W
Recommended Fuse Rating	5A
Supply Voltage	9 – 31.2 V DC

Environment

Operating Temperature Range	-15°C to +55°C (5° F to 131° F)
Storage Temperature Range	“-20°C to +60°C (4°F to 140°F)
Waterproof rating	IPX2

MFD

AIS	Receive AIS data over NMEA 2000 or *NMEA 0183 (has to be wired to both NMEA 0183 ports on the MPU)
Autopilot	Full auto pilot control and commissioning
Cartography included	Base Map
Cartography supported	Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+)
Digital Switching	BEP C-Zone
External Storage	1 SD slot, or optional USB reader. max. 32GB
Internal Storage	90 MB
Multimedia	via SonicHub, SonicHub2, FusionLink, *Sirius (*USA only)
Radar (inc. compatibility)	Broadband Radar, Halo Pulse Compression Radar, HD Pulse
Sonar (inc. compatibility)	No Internal echosounder. Compatible with: SonarHub, StructureScan, StructureScan3D, BSM-3, BSM-2, BSM1 network echo sounders
Weather	SiriusXM via WM-3 (USA only), GRIB
Waypoints, Routes, Tracks	6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.

Physical

Dimensions (W x H x D)	281 x 232 x 66 mm (11 x 9.1 x 2.5″)
Mounting Type	Bracket (Supplied) , panel, flush
Weight	1.06 kg (2.33 lbs.)

Other

Warranty Period	2 Years
Interface	Touch control on Moxx-T Monitors, USB Keyboard, USB Mouse OP40, OP50 remotes
Languages	Standard Language Pack: English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, Swedish Asian Language Pack: English (US), Japanese, Korean, Thai, Chinese, Eastern European Language Pack: English (US), English (UK), Bulgarian, German, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Lithuanian, Latvian, Polish, Slovak, Turkish Russia/Ukraine Language pack: English (US), English(UK), German, Spanish, French, Italian, Russian, Ukrainian Middle Eastern Language Pack: English (US), English (UK), Arabic, German, Spanish, Farsi, French, Italian

Brand	B&G
Family	Zeus2
Model	ZBB
Class Type	Chartplotter – Multi-Function Display (MFD)
Component	Head/Display
Item Type	KIT
