B&G ZEUS²9 Multi-function Display, World Base Map

Overview

The new Zeus² chartplotter is packed full of B&G’s unique sailing specific features. Additional benefits include an easy to use, highly intuitive and responsive user interface, multi-touch widescreen with pinch to zoom technology – all backed up by B&G’s signature rotary controller. From the ultra-fast processor, which offers seamless chart redraw and super sharp graphics, to the bonded glass, bright LED backlit screen, every inch of the Zeus² has been engineered to provide style and performance in the toughest of environments.

Zeus² integrates seamlessly with your network including Broadband Radar, AIS, CZone Digital Switching and much more. Perfect for the sailor who likes to spend more time on the water than at the chart table, the Zeus² has an array of options to help improve on water navigation and maximize sailing success.

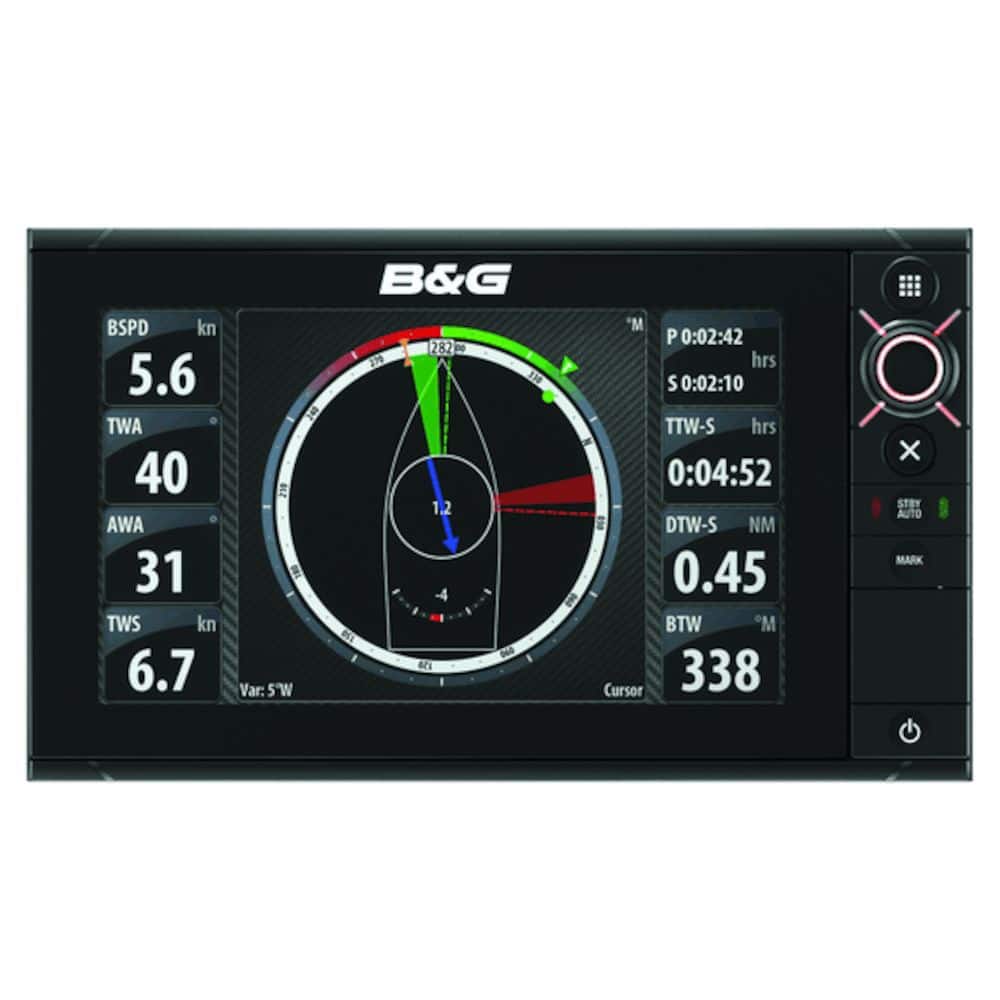

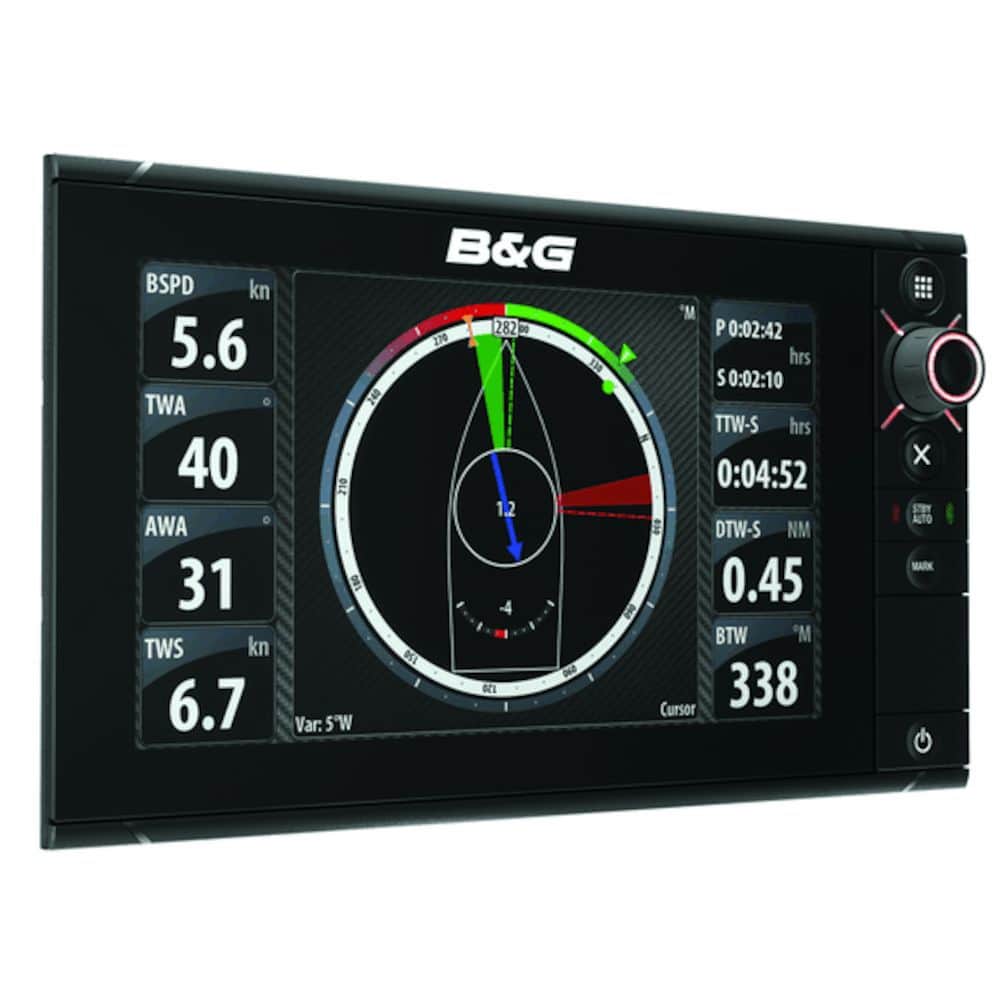

SailSteer: A composite sailing screen, which combines key sailing data into one clear display. The SailSteer navigation screen shows Heading and COG, Current Layline, Calculated Tide, True Wind Angle indicator, Rudder Angle Indicator and Opposite Tack Layline to name but a few features. All data is shown relative to the boat—so it’s quick and easy to relate to reality.

GoFree: The most powerful multifunction display wireless solution available anywhere!! Control and view your Zeus² via your tablet—wherever you are. View data on a Smartphone and carry a chartplotter in your pocket. Requires GoFree WiFi-1 Wireless Gateway Module

Enhanced Sail Navigation includes:

SailTime calculations—no more reliance on ETAs and distances that are only useful for powerboats
Enhanced Laylines—see your tacking angles on a chart, even without an active waypoint
Enhanced Tides—internal tidal calculations and Navionics® Dynamic Tides and Currents data (requires Navionics cartography) ensure a clear overview of tides and currents.

Key Features

-Sailing-specific navigation: Loaded with unique sailing features including features including Laylines, SailSteer, SailTime, WindPlot and more
-Pioneering design: Zeus² features a bright, crisp color display with maximum screen-to-unit size ratio and ultra-low profile casing for less clutter and a smart finish
-Intuitive:responsive multi-touch display, Pinch to zoom, tap to select and swipe to pan for faster control and absolute ease of use
-Choice of leading cartography options: Select a chart that suits your requirements from Navionics, C-Map, Insight and more. Zeus² features dual media card slots to run multiple datasets and give you the level of detail you need
-GoFree™ Wireless Technology
-Internal high-sensitivity GPS antenna
-Broadband Radar™ compatible
-Low power consumption
-Video input/output (Output on 12 and 16 only)
Integrated Pilot control
NMEA 2000, 0183 and Ethernet compatibility

• Intuitive, responsive 9″ widescreen multi-touch display.
• Packed with award winning sailing features like SailSteer, Laylines & Sailing Time.
• Cartography options include C-Map, Navionics, Insight and NV Digital Charts.
• Compatible with GoFree™ Wireless technology.
• Internal high-sensitivity GPS antenna.
• Broadband Radar™ compatible.
• Low power consumption.
• Video input.
• Integrated Pilot control.
• NMEA 2000, 0183 and Ethernet compatibility.
• Integrates with current B&G instruments, Pilots, displays, sensors and radars.

Approvals

Compliance	CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1

Autopilot

Manouevres / Turn Patterns	U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking
Steering Modes	Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail)

Connectivity

NMEA 0183 Sentences supported	Input: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, HDT, HDM, MWV, MWD, DSC, DSE, VDM. (Note AIS sentences are not bridged to or from NMEA 2000)Output: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, MWV, MWD, TLL, TTM
Bluetooth	No
Ethernet	1 x 5 pin yellow connector x 1 Mbit, max 6 processors on network
N2K PGNs	Receive only59392 ISO Acknowledgement, 59904 ISO Request, 60928 ISO Address Claim, 65285 Temperature with Instance, 65323 Data User Group Request, 65325 Reprogram Status, 65341 Autopilot Mode, 65480 Autopilot Mode, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127503 AC input status, 127504 AC Output Status, 127505 Fluid Level, 127506 DC Detailed Status, 127507 Charger Status, 127508 Battery Status, 127509 Inverter Status, 129033 Time & Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Addressed Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 129809 AIS Class B “CS” Static Data Report, Part A, 129810 AIS Class B “CS” Static Data Report, Part B, 130313 Humidity, 130314 Actual Pressure, 130576 Small Craft Status, 130842 SimNet DSC Message, 130851 Event Reply, 130817 Product Info, 130820 Reprogram Status, 130832 Fuel Used – High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130843 Sonar Status, Frequency and DSP Voltage,Transmit and Receive:61184 Parameter Request/Command, 65289 Trim Tab Insect Configuration, 65291 Backlight Control, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 126208 ISO Command Group Function, 126992 System Time, 126996 Product Info, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, Water referenced, 128267 Water Depth, 128275 DistanceLog, 129025 Position, Rapid Update, 129026 COG & SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats in View, 130074 Route and WP Service – WP List – WP Name & Position, 130306 Wind Data, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130831 Suzuki Engine and Storage Device Config, 130835 SetEngineAndTankConfiguration, 130839 Pressure Insect ConfigurationTransmit only65287 Configure Temperature INSOcts, 65290 Paddle Wheel Speed Configuration, 129285 Route/Waypoint Data, 130818 Reprogram Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Insect Configuration, 130837 Fuel Flow Turbine Configuration
NMEA 0183	1 x Transmit, 1 x Receive NMEA 0183, Baud Rates 4800, 9600, 19200, 38400. TX and RX use same baud rate. Optional data cable required (P/N 000-00129-001)
NMEA 2000	1 x NMEA 2000 Micro-C port, 1 LEN
PC Connectivity	No
Video	2 x composite (RCA connectors) inputs. Optional video/ data cable required (P/N 000-00129-001). PAL or NTSC
WiFi	Compatible with WIFI-1 external module

Display

Backlight Color	White
Resolution	480 x 800, WVGA, 15:9
Screen Brightness	1200 nits
Size and Type	9″ optically bonded TFT
Viewing Angles	50° top / 60° bottom, 70° left/right

Electrical

Power Consumption, max.	12W
Power Consumption, min.	4W
Power Consumption, typical	10W
Recommended Fuse Rating	5A
Supply Voltage	9 – 31.2 V DC

Environment

Operating Temperature Range	-15°C to +55°C (5° F to 131° F)
Storage Temperature Range	“-20°C to +60°C (4°F to 140°F)
Waterproof rating	IPX6 and 7

GPS

Correction	WASS, EGNOS, MSAS
GPS Receiver Channels	32 Channels
Position Accuracy	Horizontal Accuracy 3 m (9.8 ft)
Time to First Fix	Cold start 50 sec, Satellite Reacquisition 5 sec
Update rate	10 Hz

MFD

AIS	Receive AIS data over NMEA 2000 or *NMEA 0183 (has to be wired to all NSS processors)
Autopilot	Full auto pilot control and commissioning
Cartography included	World base map
Cartography supported	Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+)
Digital Switching	BEP C-Zone
External Storage	2 MicroSD slots, max. 32GB each
GPS	Internal, 10Hz, WASS, MSAS, EGNOS
Internal Storage	90 MB
Multimedia	via SonicHub, SonicHub2, FusionLink, *Sirius (*USA only)
Radar (inc. compatibility)	4G Broadband Radar supplied. Can also work with Halo Pulse Compression Radar, HD Pulse
Sonar (inc. compatibility)	No Integrated echosounder. Compatible with: SonarHub, BSM-3, BSM-2, BSM1 network echo sounders
Weather	SiriusXM via WM-3 (USA only), GRIB
Waypoints, Routes, Tracks	6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.

Physical

Dimensions (W x H x D)	280 x 164 x 107 mm (11 x 6.5 x 4.2″)
Mounting Type	Bracket (Supplied) , panel, flush
Weight	1.507 kg (3.32 lbs.)

Other

Warranty Period	2 Years
Interface	Touch Sensible combination of multi-touch screen and keypad/rotary, ZC1, ZC2
Languages	Standard Language Pack: English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, SwedishAsian Language Pack: English (US), Japanese, Korean, Thai, Chinese, Eastern European Language Pack: English (US), English (UK), Bulgarian, German, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Lithuanian, Latvian, Polish, Slovak, TurkishRussia/Ukraine Language pack: English (US), English(UK), German, Spanish, French, Italian, Russian, UkrainianMiddle Eastern Language Pack: English (US), English (UK), Arabic, German, Spanish, Farsi, French, Italian

Weight	3,7 kg
Dimensions	27,9 × 37,4 × 22,8 cm
Brand	B&G
Family	Zeus2
Model	Z2-9
Class Type	Chartplotter – Multi-Function Display (MFD)
Component	Packaged Systems
Item Type	Main Product
