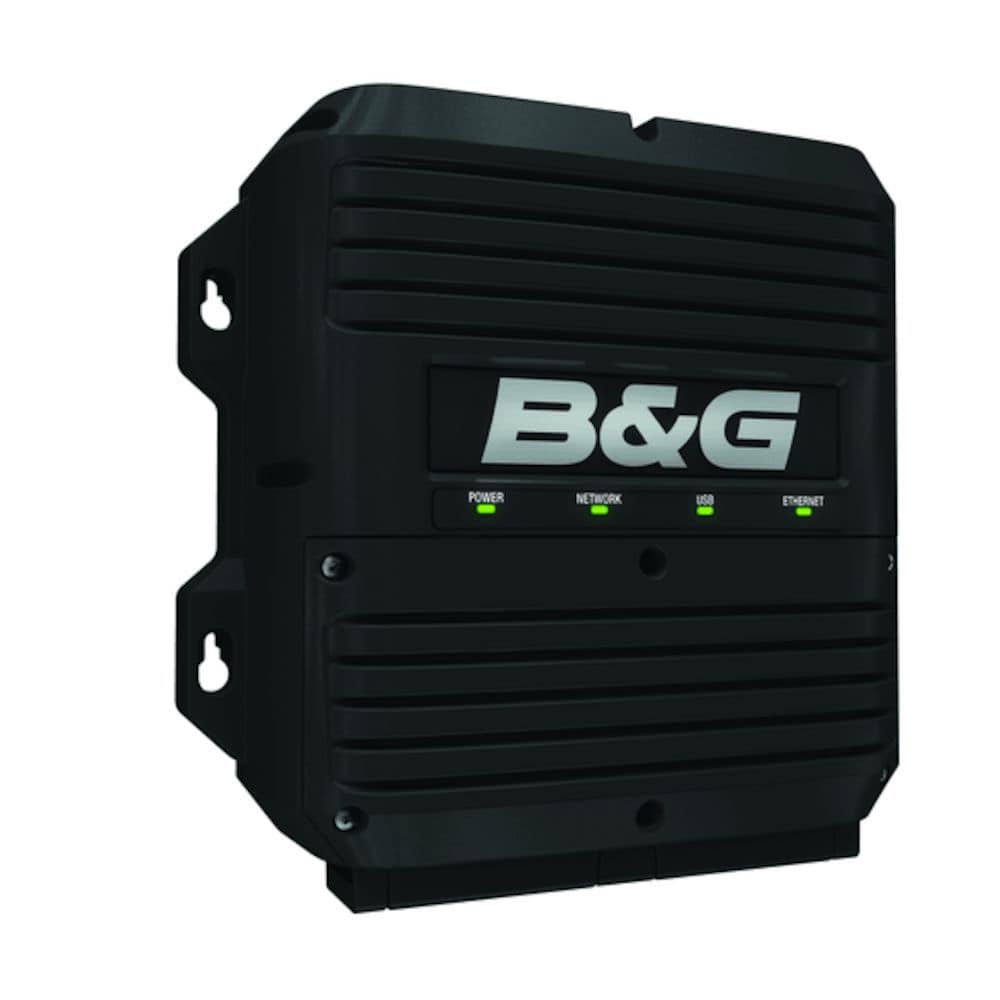

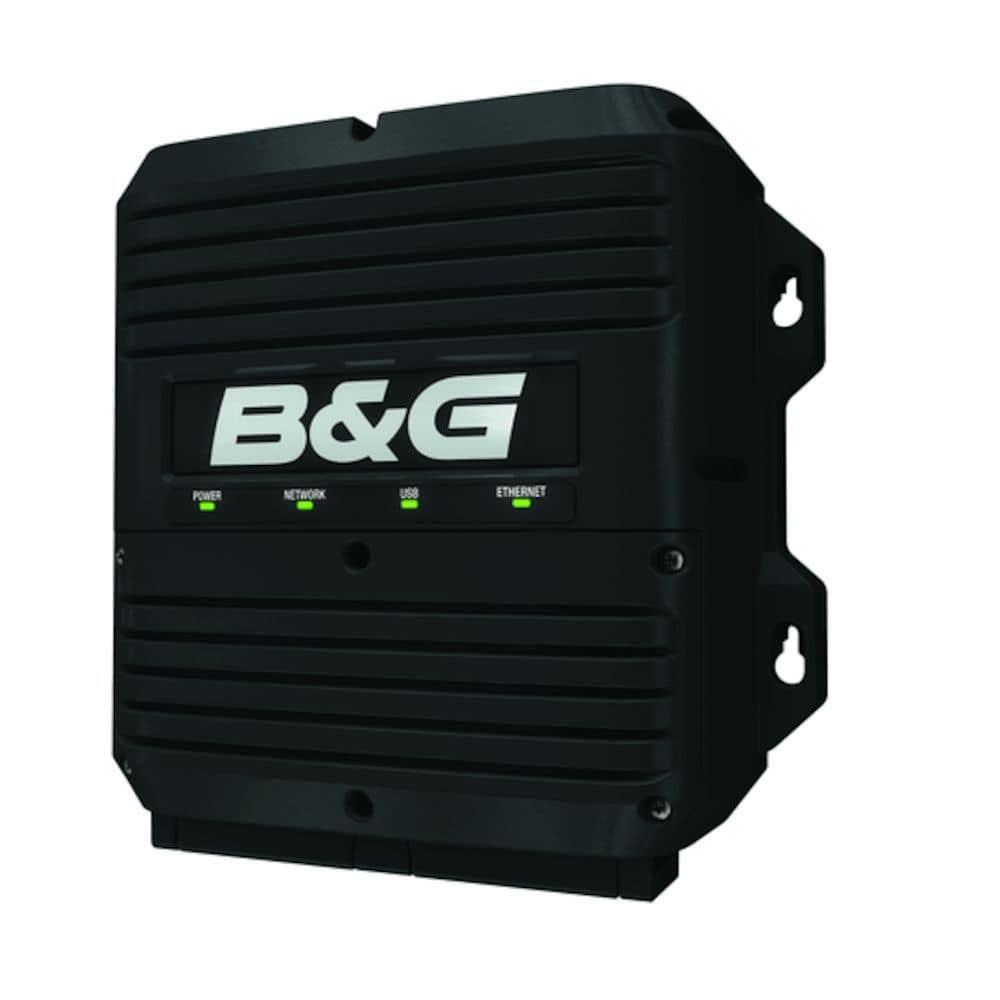

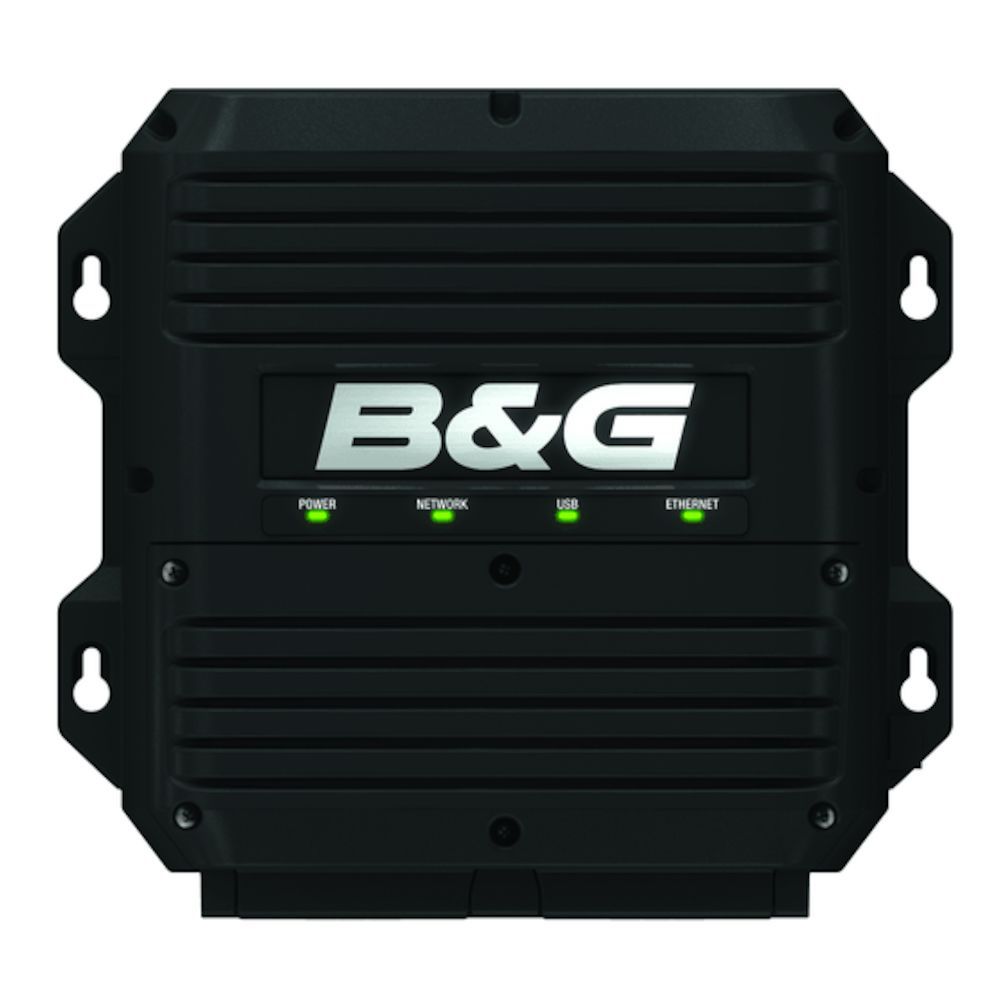

B&G H5000 CPU – Hercules

The H5000 CPU with Hercules software is geared for success on the race course. Hercules builds on the Hydra level and adds race focused features including Polar Tables for performance targets, and 3D Motion correction support for the ultimate in wind data accuracy.

On top of the benefits provided by Hydra, Hercules adds a whole tier of race functionality with the advantages of more accurate data and more race specific features, alongside web-browser integration for ease of set-up. By adding optional sensors, you can benefit from 3D Motion wind correction, offsetting the unavoidable discrepancy of induced wind errors caused by boat motion, for more accurate results. An integrated Polar table provides target boat speed, target wind angles and performance monitoring for a real racing advantage.

• Powerful central processor provides all core instrument calculations.
• Enhanced feature set for racing yachts.
• B&G Performance Wind Filter.
• Integrated webserver provides easy access to system configuration and control.
• Backup/restore config. feature.
• Dedicated interfaces for wind, speed, Man Overboard, alarm output.
• Ethernet Interface.
• Industry standard compatible CAN network.
• 2 configurable, di-directional NMEA 0183 ports.
• 4 configurable 0-5V analogue inputs.
• USB Service port for software update.

Approvals

Compliance	IEC/EN 60945

Connectivity

NMEA 0183 Sentences supported	Input: GGA, GLL, RMA, RMB, RMC, VTG, ZDA, VBW, APB, BOD, BWC, GSA, GSV, AAM, DPT, HDT, HDG, XTW, MWV, THS, XDR, MTW. Output: GGA, GLL, RMB, RMC, VTG, ZDA, VBW, APB, BWC, GSA, GSV, AAM, VHW, VLW, DPT, HDT, HDG, ROT, XTE, MWV, THS, XDR, MTW, MWD, VDR
Ethernet	1 x 100 Mbit
NMEA 0183	2x Tx, 2x Rx NMEA 0183, Baud Rates 4,800 – 115,200. (Optional cable required)
NMEA 2000	1 x NMEA2000 Micro-C port, 1 LEN
PC Connectivity	1x Ethernet (webserver), 1x USB (software update)

Electrical

Power Consumption, typical	2.4W
Recommended Fuse Rating	5A
Supply Voltage	12V DC (9-16V DC)

Environment

Operating Temperature Range	-10 to +55ºC (+14 to 131ºF)
Waterproof rating	IPX5

MFD

Compass Safe Distance – Metric, imperial	300mm (1.0′)

Physical

Dimensions (W x H x D)	211 x 196 x 66mm (8.3 x 7.7 x 2.6″)
Weight	0.7 kg (1.6 lbs)

Other

Warranty Period	2 Years
Interface	Webserver
Languages	English

Weight	1,1 kg
Dimensions	22,5 × 26 × 13 cm
Brand	B&G
SKU	000-11546-001
Family	H5000
GTIN	9420024130353
Model	CPU
Class Type	Instruments
Component	Processor/Computer/Ethernet Module
Item Type	Main Product
