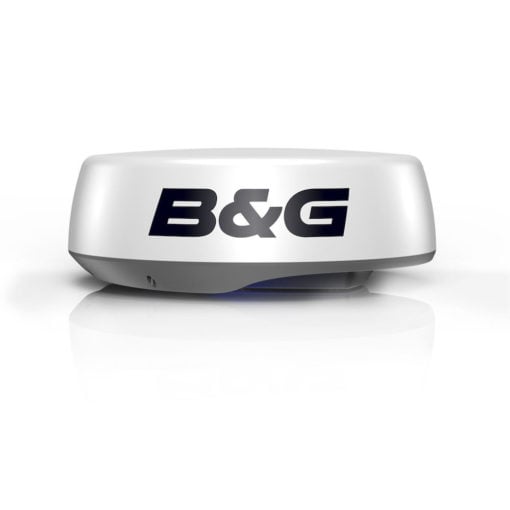

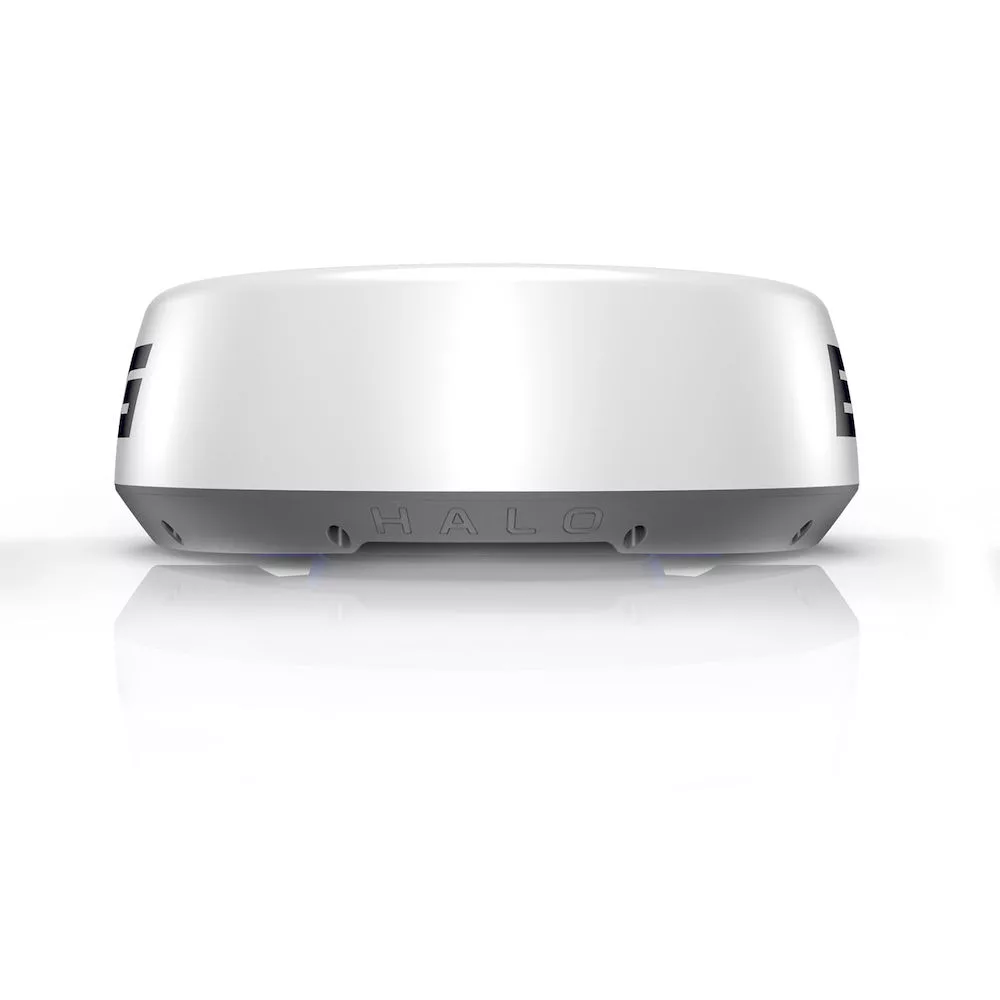

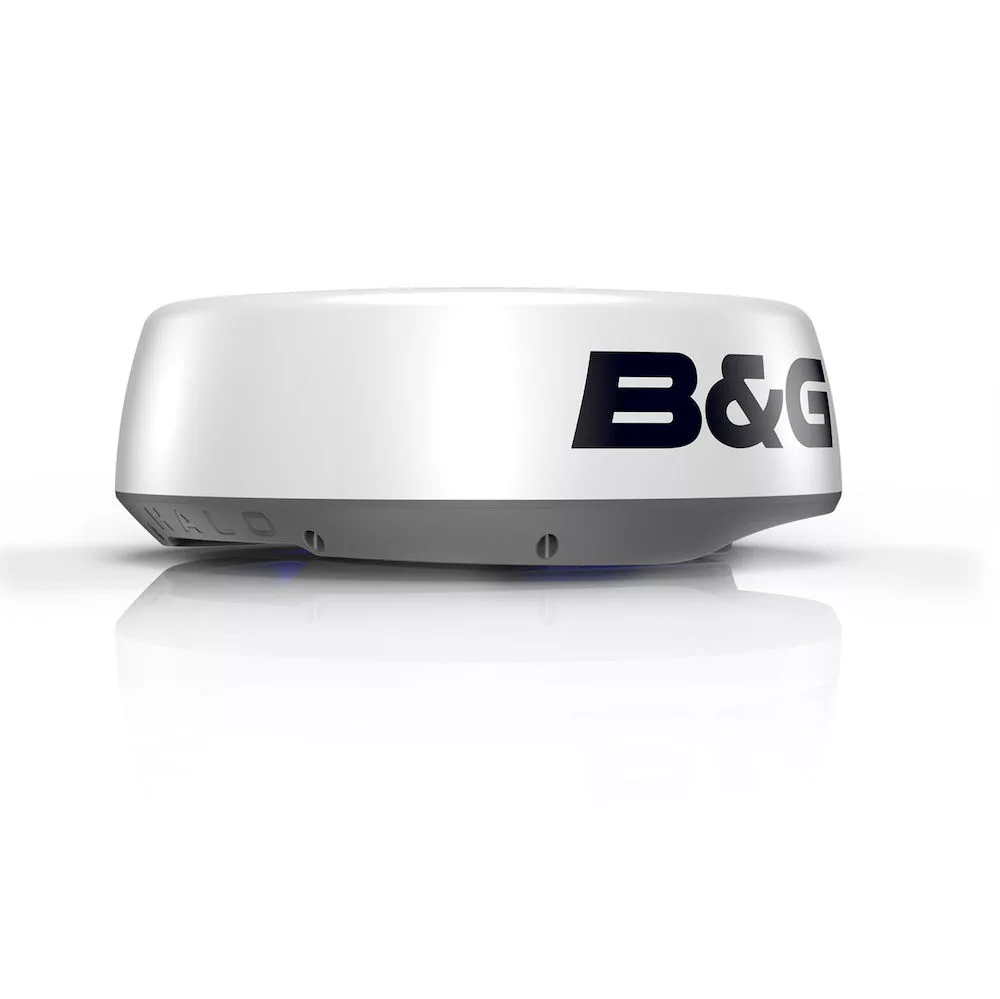

Perfect for mid-sized to large sailboats, HALO24 comes in a compact dome antenna and offers high-quality short, mid and long-range detection. Display two ranges at once in our patented Dual Range mode, which enables you to keep an eye on far away weather cells, while watching for collision dangers up close. HALO24 radar’s pulse compression technology means no compromises in detection at either selected range, while beam sharpening provides enhanced separation between small or distant targets.
The Ultimate View for Collision Avoidance
HALO24 radar delivers a full 360 degree sweep every second, thanks to its industry-first 60 RPM rotation at ranges up to 1.5 nautical miles. These ultra-fast updates give you an almost real-time view at close range, helping you prevent any collision hazard.
VelocityTrack™ Doppler Technology Built-In
VelocityTrack™ technology provides instant visual feedback on whether targets are coming towards you or moving away. Simple colour coding highlights potential dangers, improving your situational awareness and further reducing your risk of collision. HALO24 radar automatically checks every target in range; there’s no need to manually select individual targets, and no limit to the number of targets on screen at one time.
Ready When You Are
HALO24 radar wakes instantly from its low-power standby mode, delivering this high-speed radar coverage exactly when and where you need it. Even if your HALO24 radar is completely powered down, start-up is a matter of seconds, not minutes like traditional pulse radar. Whether you’re navigating through crowded waterways or contending with poor visibility, HALO24 radar immediately cuts through the clutter to give you a clear and current picture of your surroundings.
The Lightest 24’’ Radar for Enhanced Performance
HALO24 lightweight compacted design –6.75kg, 14.9lb- minimizes the inclination of the boat to maximize your boat’s performance when every second counts.
- 48 nm range from a compact 24-inch dome
- The lightest 24’’ radar (6.75kg, 14.9lb)
- Advanced pulse compression technology with beam sharpening
- Simultaneous Dual Range operation sees both near and far
- Ultra-fast 60 RPM operation at ranges up to 1.5 nm
- VelocityTrack™ Doppler technology for collision avoidance
- Easy operation with harbour, offshore, weather, and bird modes
- MARPA target tracking (up to 10 targets, 20 in dual range)
- Instantly awake from standby
- Best in class weather & target detection
- Compatible with Vulcan R, Zeus², Zeus³, Zeus² Glass Helm and Zeus³ Glass Helm (NOS 18.2 or higher required for all ranges)
|Compliance||FCC, Part 47 CFR 80 and 90: RED, Article 3 of Directive 99/5/EC: CE: EN, EN302-248 V2.1.1: Industry Canada, RSS238: RCM (C-Tick): IEC60945 Sec 9.2,9.3, 10.3-10.9, 11.2: IEC60950 Electrical Safety|
|Ethernet||100 Base T|
|Power Consumption, max.||29W|
|Power Consumption, typical||20W|
|Recommended Fuse Rating||5A|
|Supply Voltage||10.5 – 31.2 VDC (12/24V systems)|
|Humidity||95% RH at 35°C (95°F)|
|Operating Temperature Range||-25° to + 55°C (-13° to +130°F)|
|Dimensions (W x H x D)||610mm dia x 225 mm H. (24″ dia x 8.9″ H)|
|Weight||6.75 kg (14.9 lbs) without cable|
|Beam width||3.9° H nonminal (-3dB) 2° with target separation on high x 22° V|
|Max Range, scale||48 NM|
|Max Operating Wind Speed||100 knots (51 m/s)|
|Min Range, scale||50 m / 200 ft / 50 yd|
|Radar Modes||Harbour, Offshore, Weather, Bird Dual Range, North Up Course Up, Relative motion, True Motion|
|Radar Technology||Pulse Compression|
|Rotation speed||Up to 60 RPM (Range Dependent)|
|Warranty Period||2 Years|
