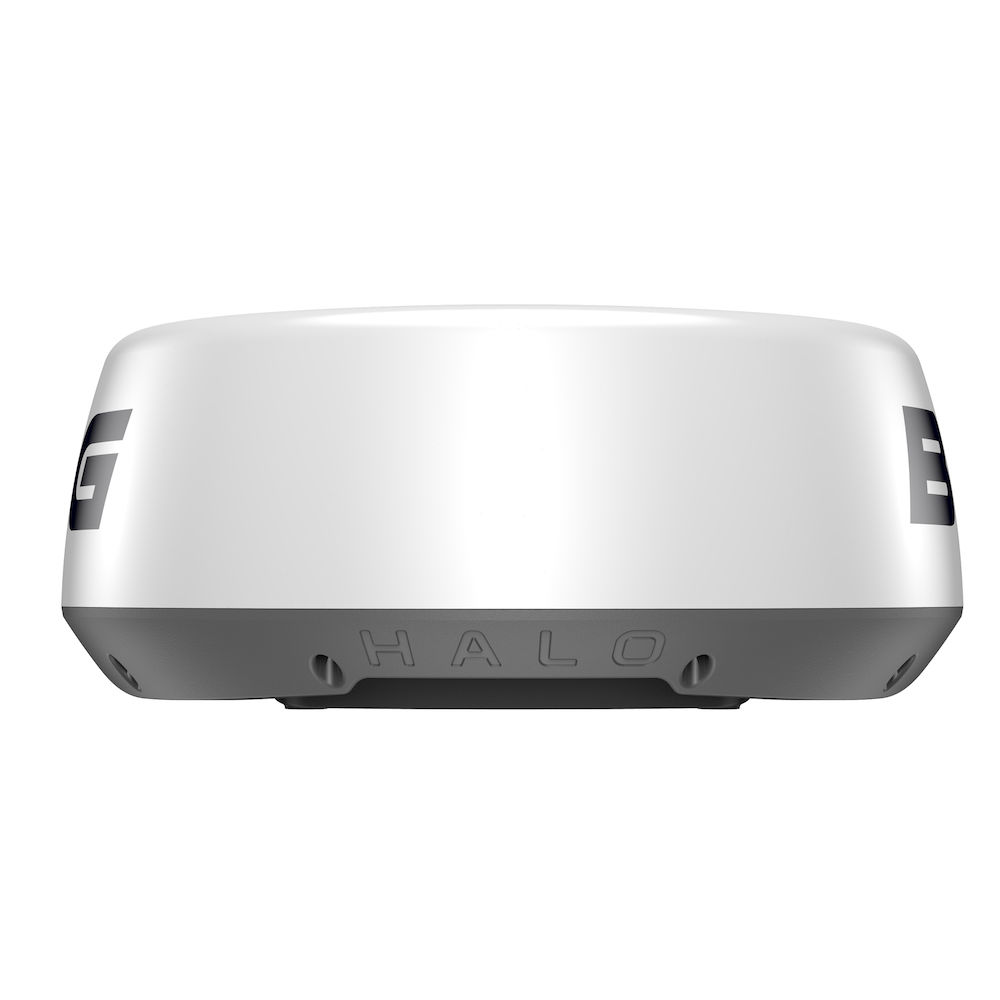

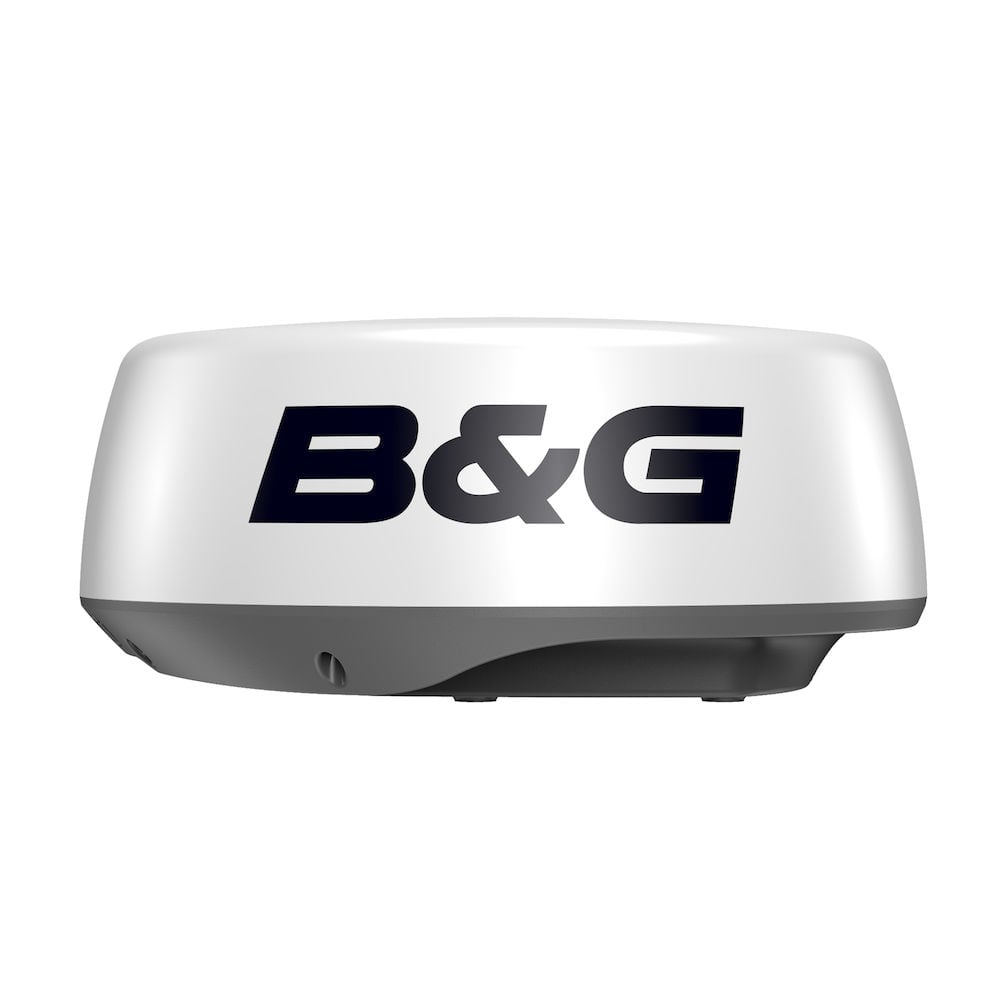

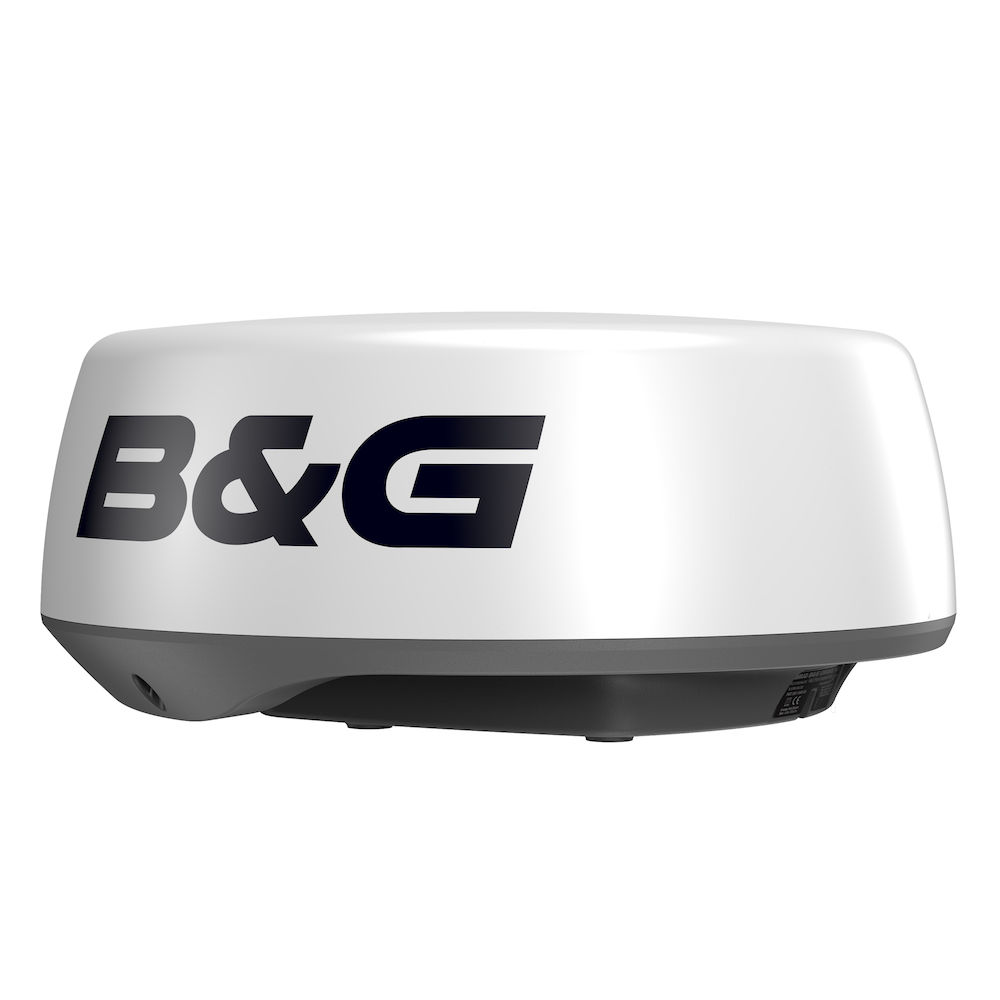

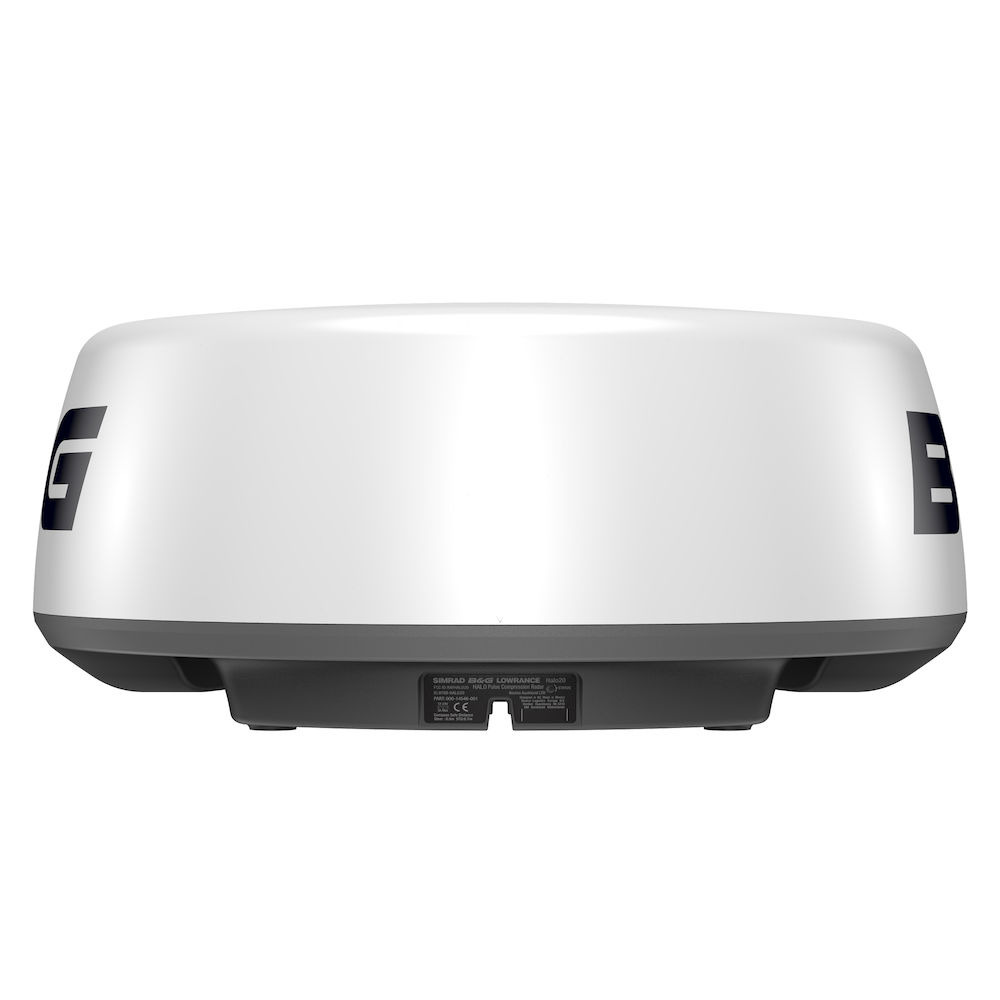

B&G Halo20 24 Nm 20″ Pulse Compression Radar

Unrivalled Short-To-Mid-Range Performance
Extend your view from the bow of your boat out to 24 nautical miles with pulse-compression radar technology that not only delivers a powerful mix of short and long-range detection, but provides precise target definition with minimal clutter.

Better Situational Awareness, Collision Avoidance
HALO20 radar delivers a comprehensive range of features to enhance your situational awareness and on-water safety. Monitor selected collision hazards with MARPA target tracking, tracking up to 10 targets, or 20 in dual range. Whether you’re navigating through crowded waterways or contending with poor visibility, HALO20 radar cuts through the clutter to give you a clear and current picture of your surroundings.

Ready Instantly
HALO20 Radar wakes instantly from its low-power standby mode, delivering radar coverage exactly when and where you want it. Even if your HALO20 radar is completely powered down start-up is a matter of seconds, not minutes like traditional pulse radar.

Easy to Use
Harbour, offshore, weather and custom modes tune HALO20 Radar’s advanced signal processing to help ensure that targets can be seen vividly – even in the toughest environmental conditions.

Approvals

Compliance	FCC, Part 47 CFR 80 and 90: RED, Article 3 of Directive 99/5/EC: CE: EN, EN302-248 V2.1.1: Industry Canada, RSS238: RCM (C-Tick): IEC60945 Sec 9.2,9.3, 10.3-10.9, 11.2: IEC60950 Electrical Safety

Electrical

Power Consumption, max.	20W
Power Consumption, typical	18W
Recommended Fuse Rating	5A
Supply Voltage	10.5 – 31.2 VDC (12/24V systems)
Humidity	95% RH at 35°C (95°F)

Environment

Operating Temperature Range	-25° to + 55°C (-13° to +130°F)
Waterproof rating	IPX6

Physical

Dimensions (W x H x D)	510mm dia x 223 mm H. (20″ dia x 8.8″ H)
Weight	5.9 kg (13 lbs) without cable

Radar

Beam width	4.9° H x 25° V
Max Range, scale	24 NM
Max Operating Wind Speed	100 knots (51 m/s)
Min Range, scale	50 m / 200 ft / 50 yd
Radar Modes	Harbour, Offshore, Weather, North Up, Course Up, Relative motion, True Motion
Radar Technology	Pulse Compression
Rotation speed	24 RPM

Other

Warranty Period	2 Years
Interface	B&G MFD

Weight	9 kg
Dimensions	58,5 × 66 × 9 cm
SKU	000-14540-001
Brand	B&G
Class Type	Radars
GTIN	9420024173824
Component	Packaged Systems
Family	B&G Radar-Halo Dome
Item Type	KIT
Model	B&G Halo20+
