Detailed Information
Product Description
Product Details

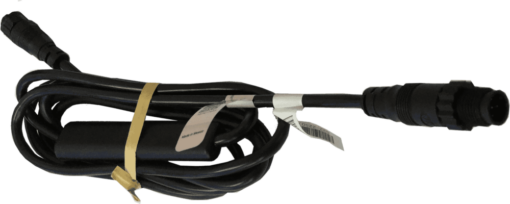

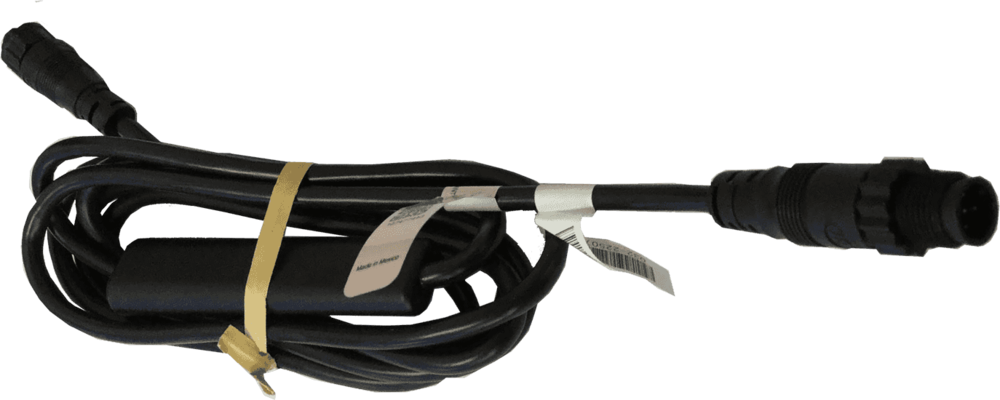

- Interfaces a WS310 wind sensor to a NMEA 2000 network.
Product Specifications
Approvals
| Compliance | IEC/EN 60945 |
|---|
Connectivity
| NMEA 0183 Sentences supported | MWV,R |
|---|---|
| NMEA 0183 | 1 x Rx NMEA 0183, Baud Rate 38400 |
| NMEA 2000 | 1 x Micro-C port, 1 LEN |
Electrical
| Supply Voltage | 12V DC (9 – 16V DC) |
|---|
Environment
| Operating Temperature Range | -15°C to +55°C (5°F to 131°F) |
|---|---|
| Storage Temperature Range | -20°C to +60°C (4°F to 140°F) |
| Waterproof rating | IPX7 |
MFD
| Compass Safe Distance – Metric, imperial | 300mm (12″) |
|---|
Physical
| Dimensions (W x H x D) | 90 x 20 x 10mm (3.5 x 0.8 x 0.4″) |
|---|
Other
| Warranty Period | 2 Years |
|---|
Additional information
| SKU | 000-14389-001 |
|---|---|
| Brand | |
| Class Type | |
| GTIN | 9420024171486 |
| Component | |
| Family | |
| Item Type | |
| Model |
