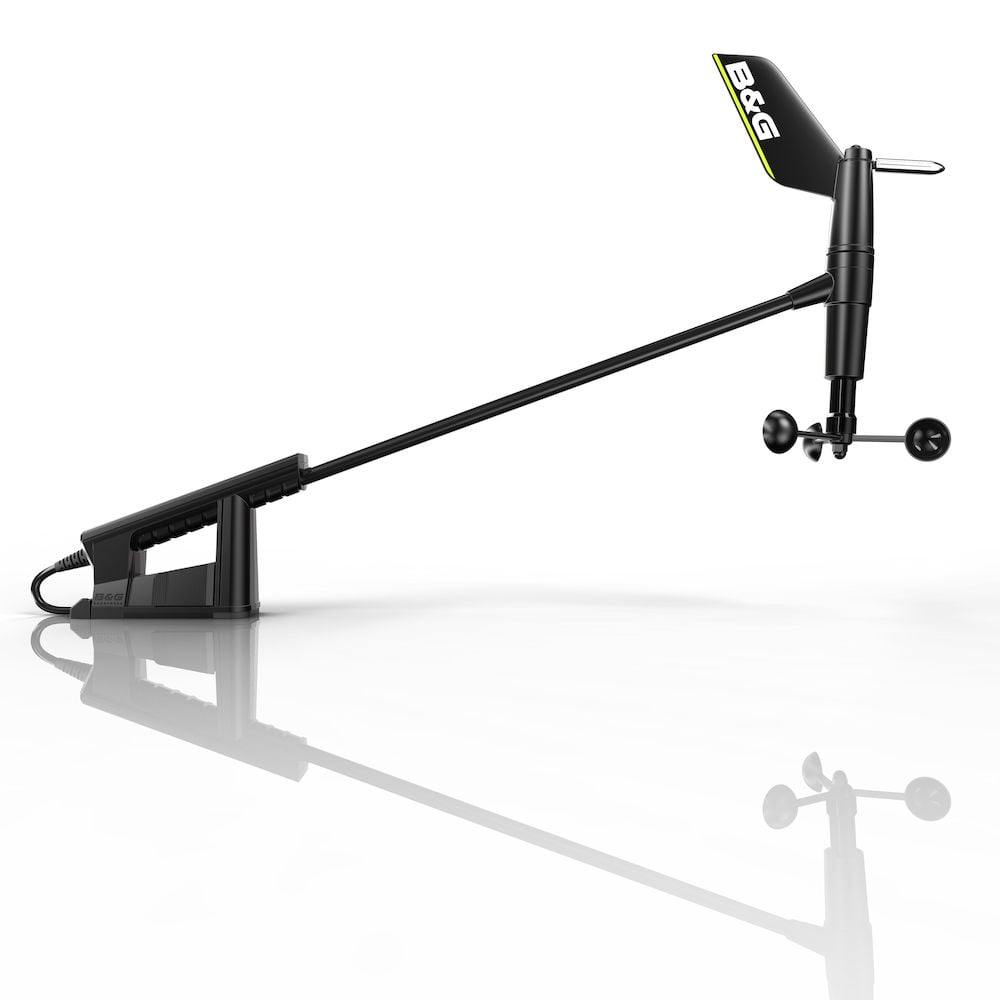

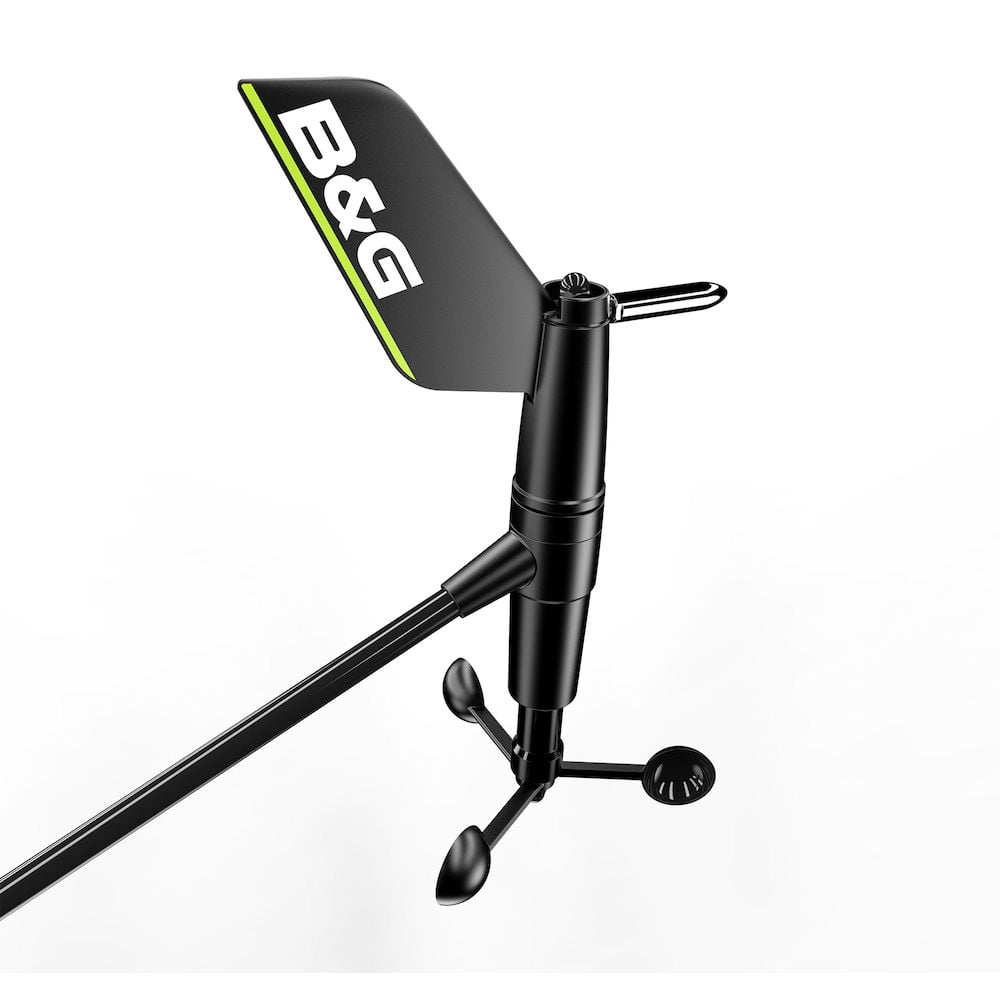

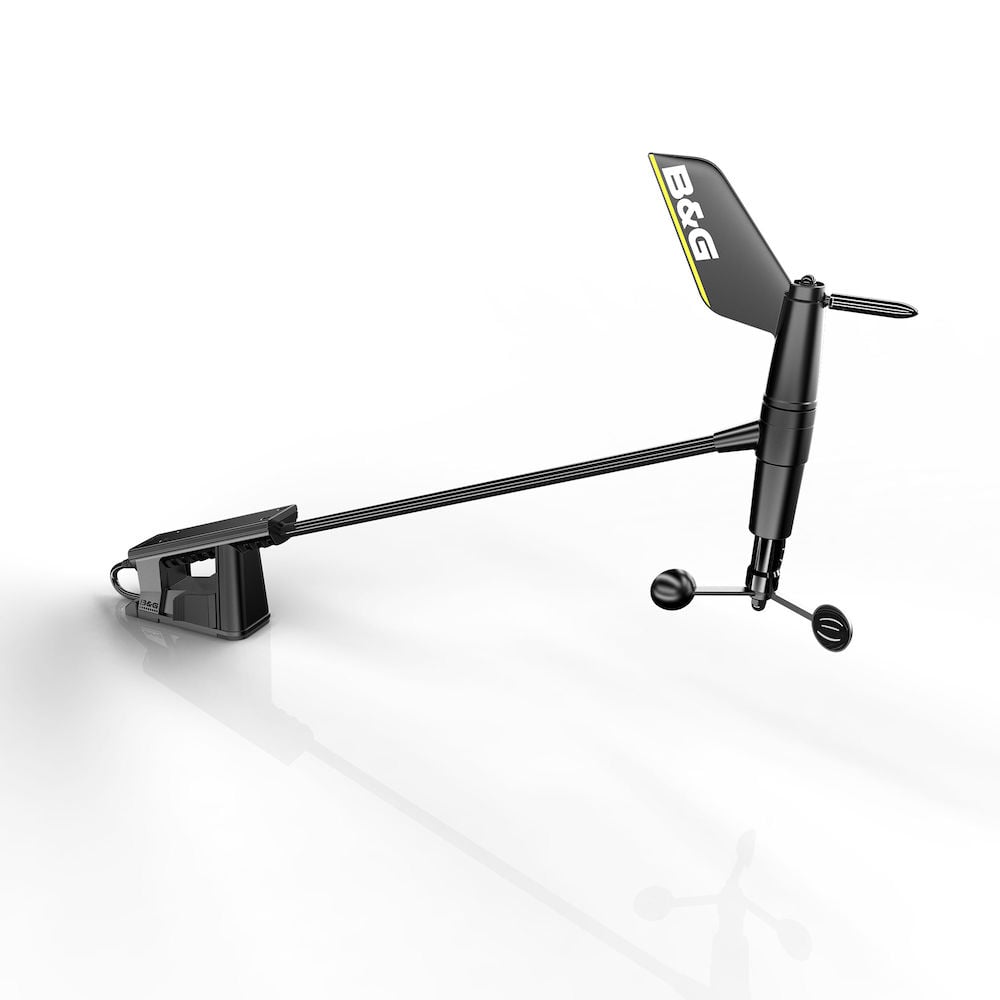

B&G WS310 Wired Wind Sensor Only

WS300 Series: Description

A new range of high precision B&G wind sensors, designed for cruising and club racing sailors. An evolution of B&G’s previous sensors, developed through hours of iterative testing to provide the best solution for sailing wind sensors. The WS300 series meets the following design objectives:

High Performance
Designed to provide highly accurate wind data in all conditions at all points of sail and heel. WS300 has been benchmarked against multiple different sensors in over 500 individual wind tunnel tests.
-Angle accuracy < 1 degree *
-Speed accuracy <0.2kt or 5% *

Reliability
As the most exposed sensor on a yacht, the wind sensor, critical for instruments and autopilot steering, must meet an exceptionally high
standard. In addition to B&G’s standard testing WS310 and WS320 sensors have been subject to combined field tests of over 200,000 hours.

* NOTE: Specifications are subject to change (improvement) following final calibration wind tunnel tests due end May. Updates will be made prior to dealer launch.

Key Selling Points

The WS310 wind sensor has been designed to provide a highly accurate
-High accuracy* for the best instrument and autopilot performance. High performance aerodynamic design is the result of over 500 individual wind tunnel tests
-Wide compatibility – direct NMEA 0183 output or connect via interface to a NMEA 2000® network
– Straight-forward installation. Single cable, cable runs of up to 80m
* <1 degree angle accuracy, <0.2kt or 5% wind speed error across working range.

Approvals

Compliance	IEC/EN 60945

Connectivity

NMEA 0183 Sentences supported	MWV,R at 10Hz
NMEA 0183	1 x Tx NMEA 0183, Baud Rate 38400

Electrical

Power Consumption, typical	< 0.1W
Supply Voltage	12V DC (9 – 16V DC)

Environment

Operating Temperature Range	-15°C to +55°C (5°F to 131°F)
Storage Temperature Range	-20°C to +60°C (4°F to 140°F)
Waterproof rating	IPX6 (spray), IPX7 (immersion)

Physical

Dimensions (W x H x D)	500 x 330 x 50mm (20 x 13 x 2″)
Weight	0.3 kg (0.66 lbs)

Other

Warranty Period	2 Years

SKU	000-14391-001
Brand	B&G
Class Type	Instruments
GTIN	9420024171509
Component	Sensor/Transducer/Scanner/Antenna
Family	B&G Sensor – Wind
Item Type	Main Product
Model	B&G WS310
