B&G WS730 Vertical Wind Sensor Only, 1450mm

Name: B&G WS730 Vertical Wind Sensor Only, 1450mm
SKU: 000-14394-001
Price: 2772 EUR
Availability: InStock

Original price was: 3.080,00 €.Current price is: 2.772,00 €.
You save

SKU: 000-14394-001 Category: B&G WS730
Brand: B&G

1ST ORDER DISCOUNT

Claim your initial 5% discount on your first order.
Claim it here!

PRICE GUARANTEE

If you find a cheaper price in the next 72 hours we will match it.

OFFICIAL WARRANTY

We are Authorised Dealers for all brands. You will be fully covered.

Terms and Conditions

FAQ & Terms

LOCAL DELIVERY OPTIONS

Standard Delivery usually 3-7 days.
Express Delivery usually 2-4 days.

Rebate

PRICE GUARANTEE

If you find a cheaper price in the next 72 hours we will match it.

1ST ORDER DISCOUNT

Claim your initial 5% discount on your first order by registering on the SailRACE community.

CERTIFIED SUPPORT

Get support by officially certified experts. Detail us your refitting needs and we will help you determining the best solution.

Detailed Information

Product Description

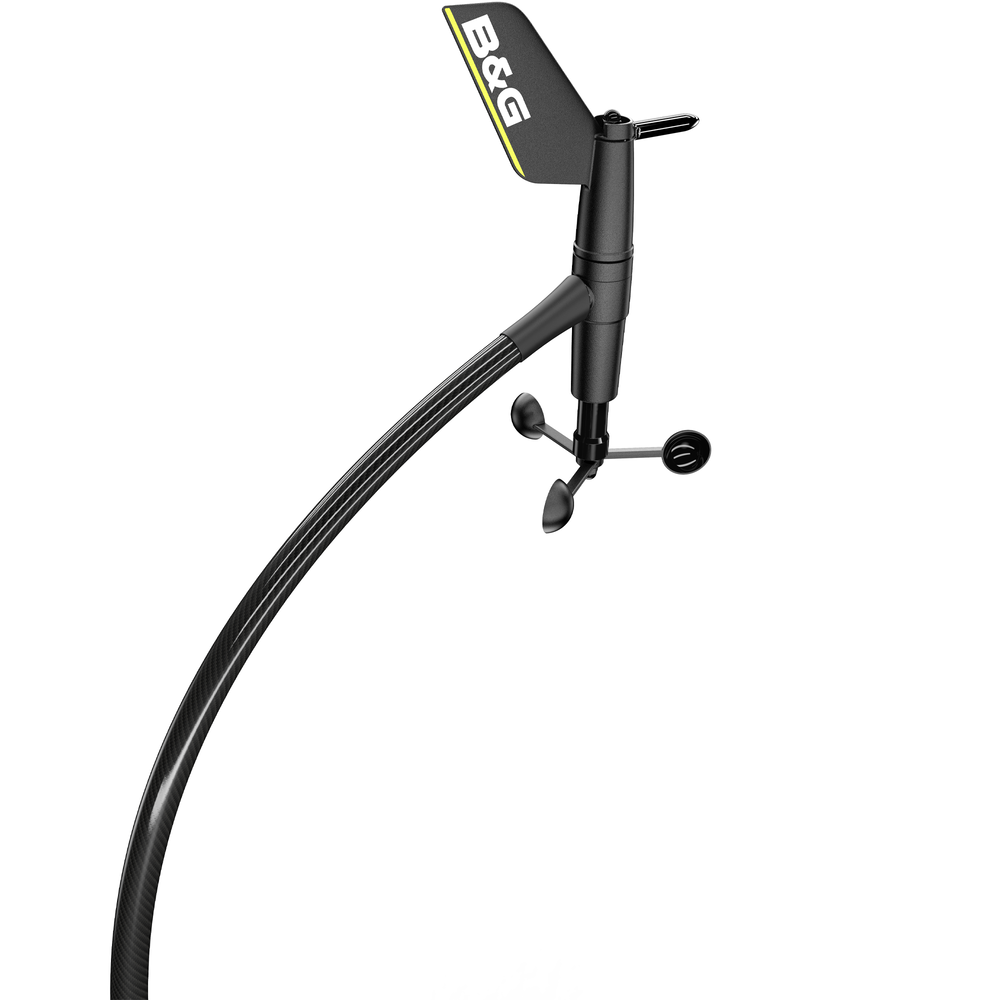

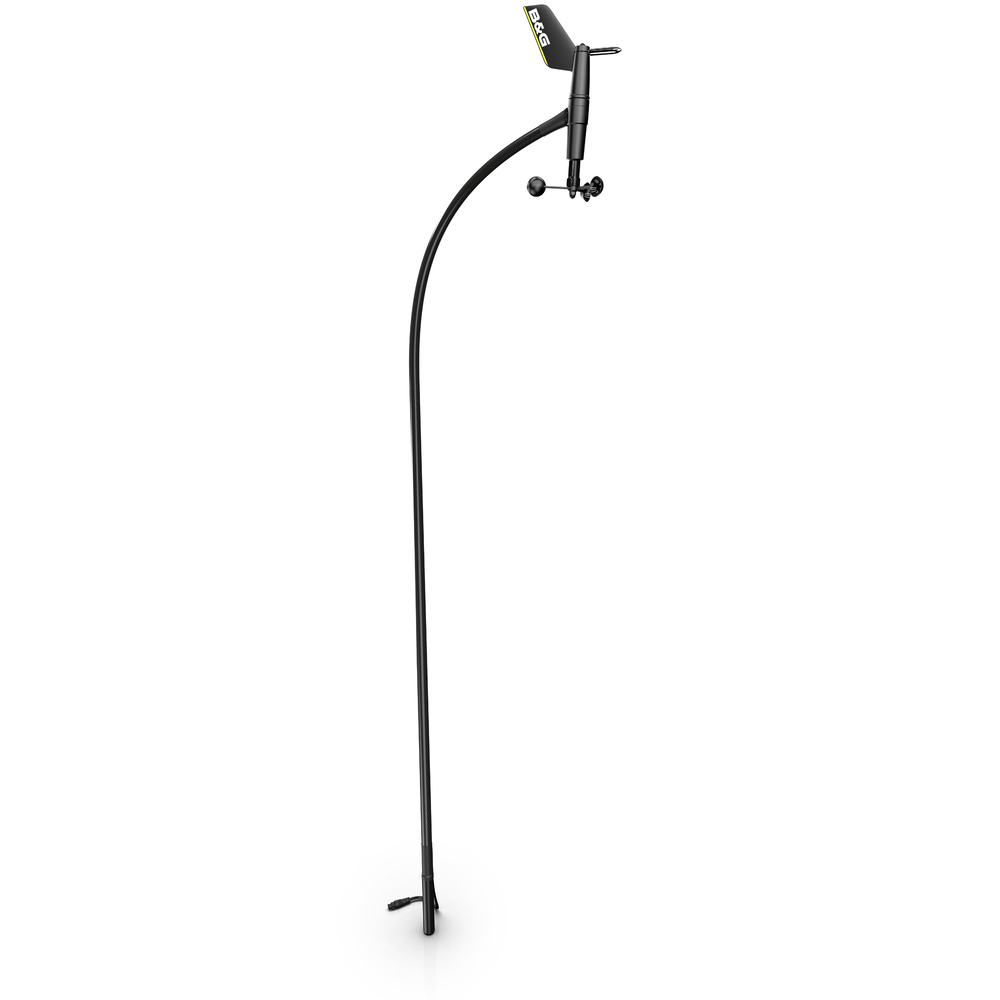

The WS730 high-performance wind sensor offers superb aerodynamics and accuracy. A 1.4m high modulus carbon spar elevates the wind sensor into clear air, above any sail-plan disturbance at the masthead.

The WS700 series is the ultimate wind sensor for performance sailing, providing the most accurate wind angle and speed data. The new one-piece vane design gives superb aerodynamics and stability, as a result of over 200,000 hours of combined design and wind tunnel testing.

Higher altitude for clearer readings
The vertical spar minimises the effect of sail-plan on wind measurement ensuring the best performance with minimum calibration. This means reliable True Wind Direction to make precise race calls when needed and better steer-to-wind performance in all conditions when on autopilot.

Flexibility

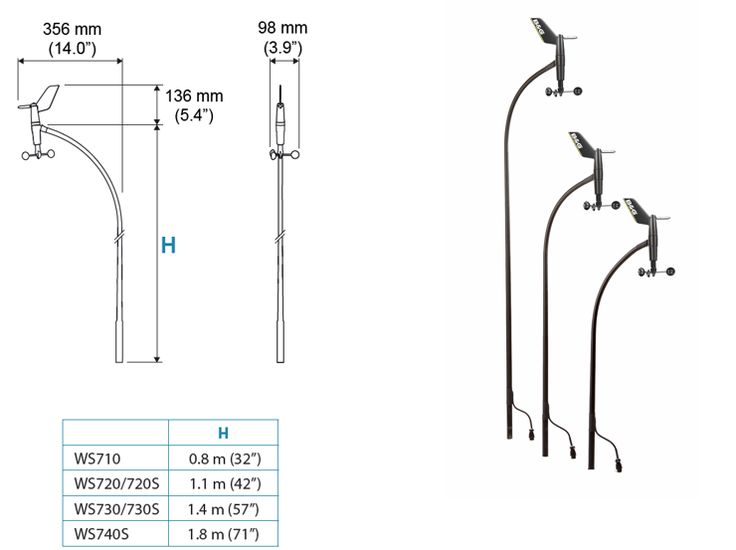

Choose from 6 options of vertical high-modulus carbon spars from 0.8 to 1.8m**

WS700 series follows the same physical mounting as previous models (VHMU) providing an easy upgrade path.

Wide compatibility
Connect directly to H5000 or WTP3 via a NMEA 0183 input or to NMEA 2000 via the wired interface (sold separately)

Straightforward installation
WS700 connects to your instrument system via a single mast cable, available in 4 different lengths from 25 to 80m.

**Spar sizes are indicative

Product Details

High precision and accuracy
High performance aerodynamic design
Ocean Race proven
Straightforward installation

Product Specifications

Approvals

Compliance	IEC/EN 60945

Connectivity

NMEA 0183 Sentences supported	MWV,R at 10Hz
NMEA 0183	1 x Tx NMEA 0183, Baud Rate 38400

Electrical

Power Consumption, typical	< 0.2W
Supply Voltage	12V DC (9 – 16V DC)

Environment

Operating Temperature Range	-15°C to +55°C (5°F to 131°F)
Storage Temperature Range	-20°C to +60°C (4°F to 140°F)
Waterproof rating	IPX6

Physical

Dimensions (W x H x D)	356 x 1450 x 22mm (14 x 57 x 0.9″) nominal
Weight	0.4 kg (0.9 lbs)

Other

Warranty Period	2 Years

Additional information

SKU	000-14394-001
Brand	B&G
Class Type	Instruments
GTIN	9420024171530
Component	Sensor/Transducer/Scanner/Antenna
Family	B&G Sensor – Wind
Item Type	Main Product
Model	B&G WS730
