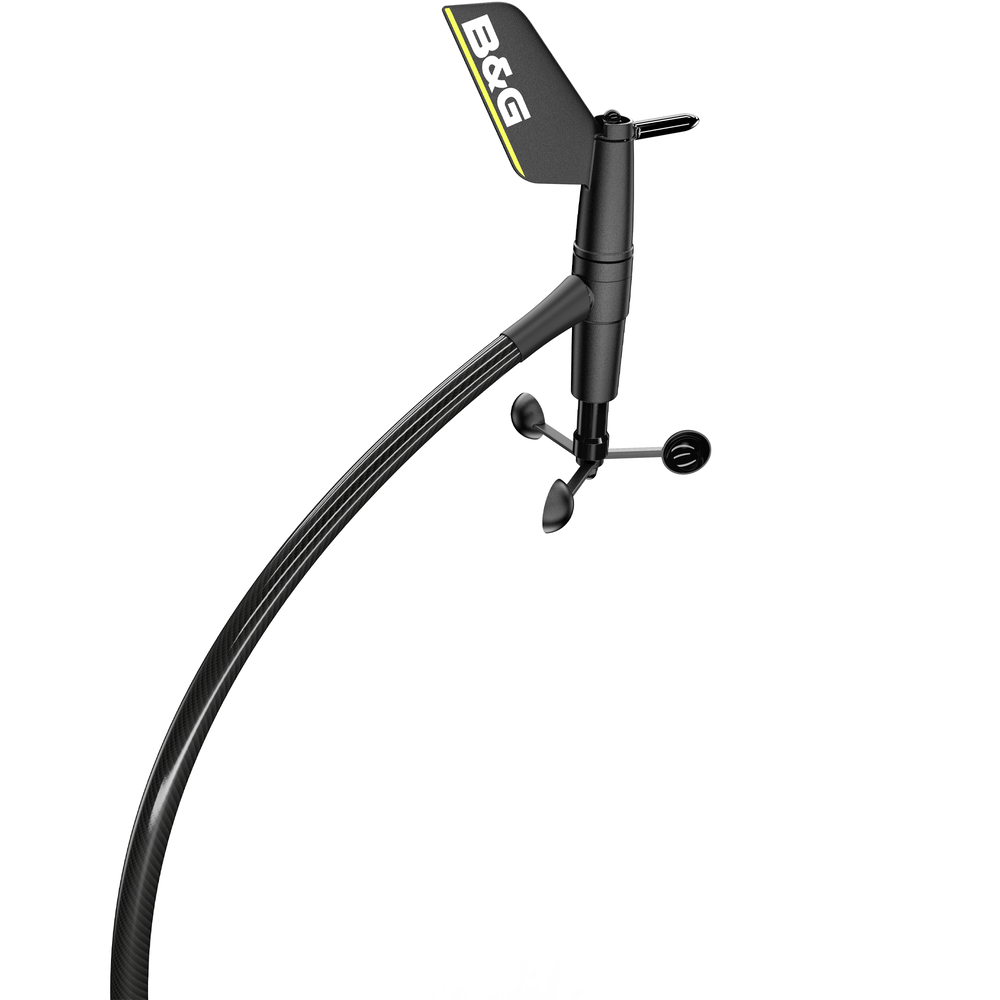

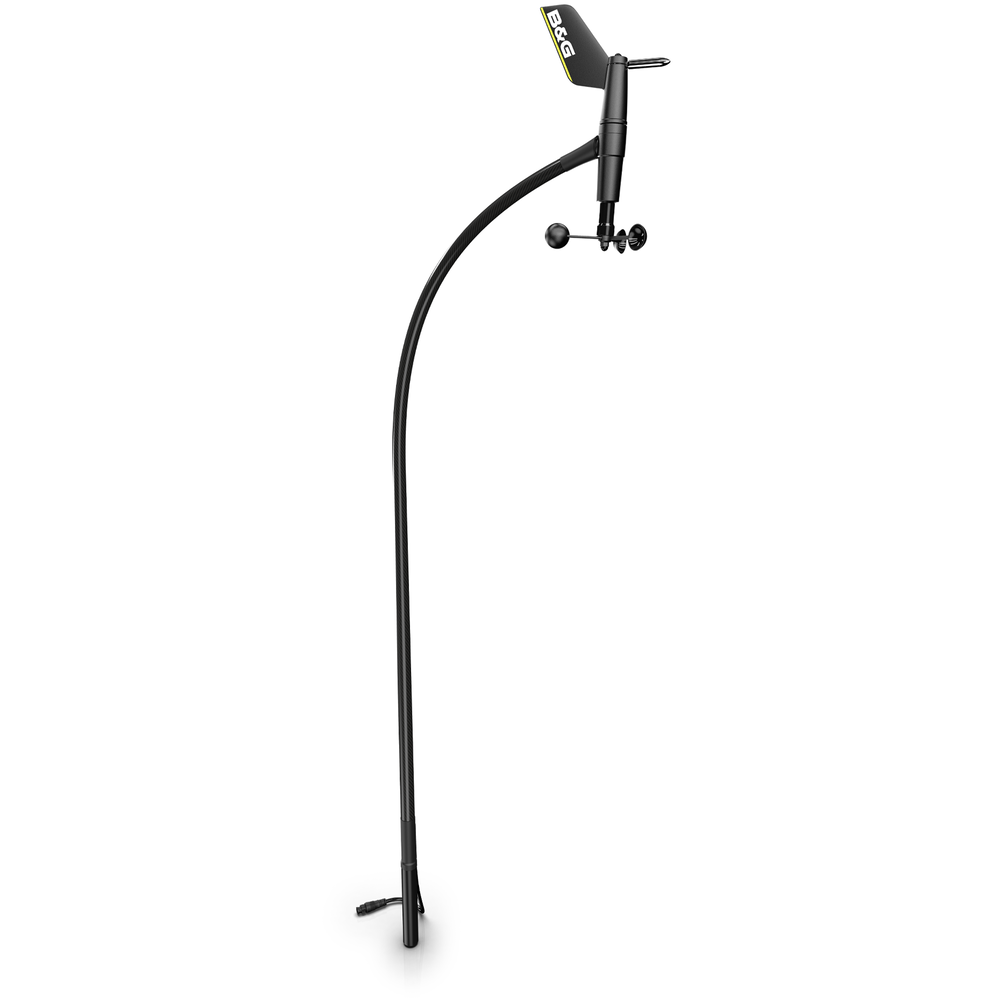

B&G WS730S Ocean Spec Vertical Wind Sensor Only, 1450mm

The WS730 high-performance wind sensor offers superb aerodynamics and accuracy. A 1.4m high modulus Ocean spec carbon spar elevates the wind sensor into clear air, above any sail-plan disturbance at the masthead.

The WS700 series is the ultimate wind sensor for performance sailing, providing the most accurate wind angle and speed data. The new one-piece vane design gives superb aerodynamics and stability, as a result of over 200,000 hours of combined design and wind tunnel testing.

Higher altitude for clearer readings
The vertical spar minimises the effect of sail-plan on wind measurement ensuring the best performance with minimum calibration. This means reliable True Wind Direction to make precise race calls when needed and better steer-to-wind performance in all conditions when on autopilot.

Flexibility

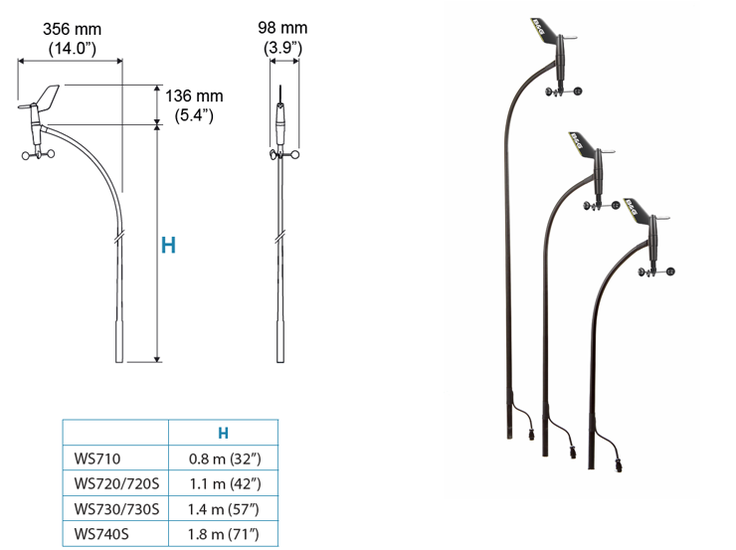

Choose from 6 options of vertical high-modulus carbon spars from 0.8 to 1.8m**

WS700 series follows the same physical mounting as previous models (VHMU) providing an easy upgrade path.

Wide compatibility
Connect directly to H5000 or WTP3 via a NMEA 0183 input or to NMEA 2000 via the wired interface (sold separately)

Straightforward installation
WS700 connects to your instrument system via a single mast cable, available in 4 different lengths from 25 to 80m.

**Spar sizes are indicative.

Approvals

Compliance	IEC/EN 60945

Connectivity

NMEA 0183 Sentences supported	MWV,R at 10Hz
NMEA 0183	1 x Tx NMEA 0183, Baud Rate 38400

Electrical

Power Consumption, typical	< 0.2W
Supply Voltage	12V DC (9 – 16V DC)

Environment

Operating Temperature Range	-15°C to +55°C (5°F to 131°F)
Storage Temperature Range	-20°C to +60°C (4°F to 140°F)
Waterproof rating	IPX6

Physical

Dimensions (W x H x D)	356 x 1450 x 25mm (14 x 57 x 1″) nominal
Weight	0.5 kg (1.1 lbs)

Other

Warranty Period	2 Years

SKU	000-14984-001
Brand	B&G
Class Type	Instruments
GTIN	9420024179062
Component	Sensor/Transducer/Scanner/Antenna
Family	B&G Sensor – Wind
Item Type	Main Product
Model	B&G WS730
