B&G Zeus³S 16″ Glass Helm System Pack

System Pack
The Zeus³S Glass Helm Processor and Monitor System Pack contains everything you need to begin your glass helm system, including a 16” touchscreen monitor, a ZC2 remote keypad, a chart card reader and GPS antenna. Built-in wireless connectivity links Zeus3S Glass Helm to your existing mobile devices for remote viewing and control, and delivers easy online software upgrades via any wireless internet hotspot. Wired Ethernet, NMEA 2000®, and J1939 networking provide almost limitless integration options, from vessel-wide display systems to radar, sonar, autopilot, and much more.

Supreme sailing performance
The new Zeus³S Glass Helm Processor has twice the previous versions performance, which delivers category leading response times for incredibly smooth transitions and giving you instant access to the sailing and system information you need, you need, as you need it, no matter the conditions, all thanks to the new iMX 8 integrated six-core processor. Create your own custom helm layouts to suit any activity, and switch seamlessly between layouts in an instant. Navigate charts and use your sailing features such as RacePanel and SailSteer, whilst also viewing connected systems such as autopilot, radar and sonar, with a single touch.

Easy installation

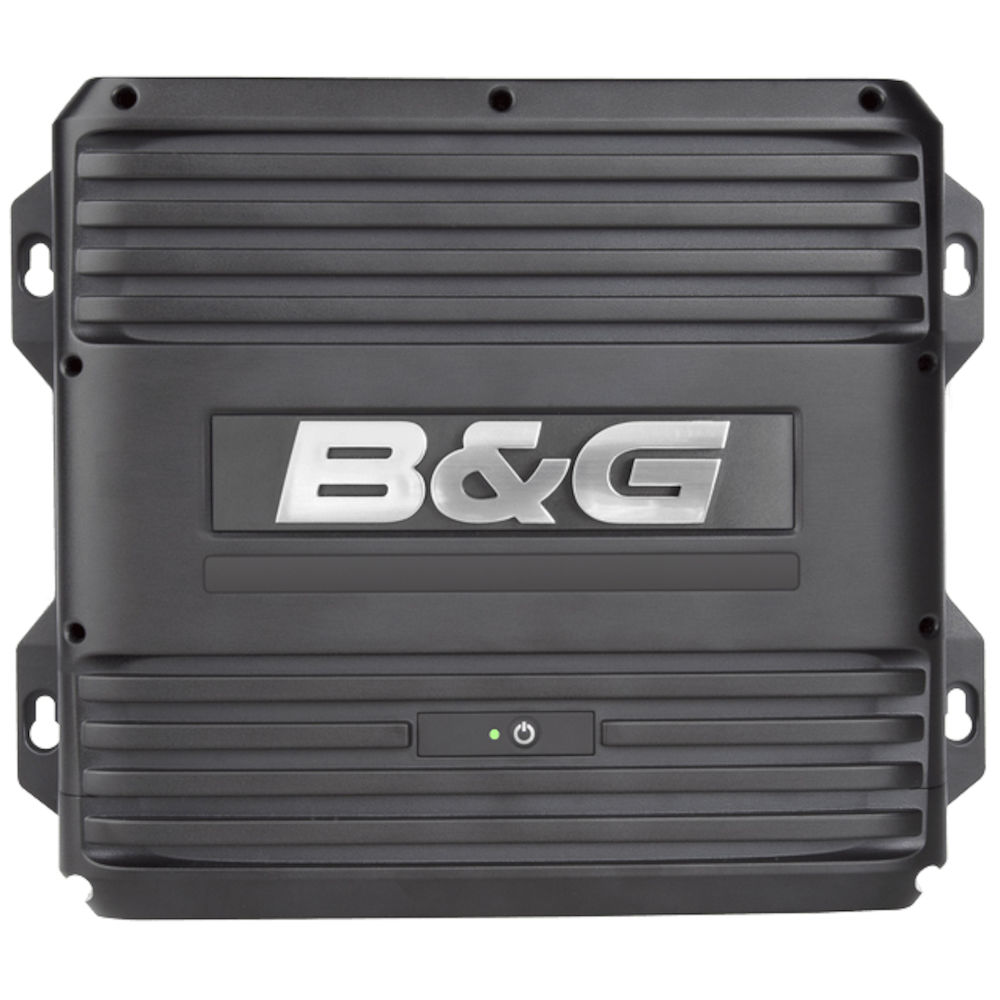

With just one ‘black box’ processor powering two separate displays. A modular design simplifies wiring and avoids the need to carry extra hardware, such as GPS receivers or sounder modules, for every display on board. Accessories can be added as required – simply connect to your Zeus³S Glass Helm Processor below deck without the need to be networked with each individual display at the helm.

Monitors designed for sailing

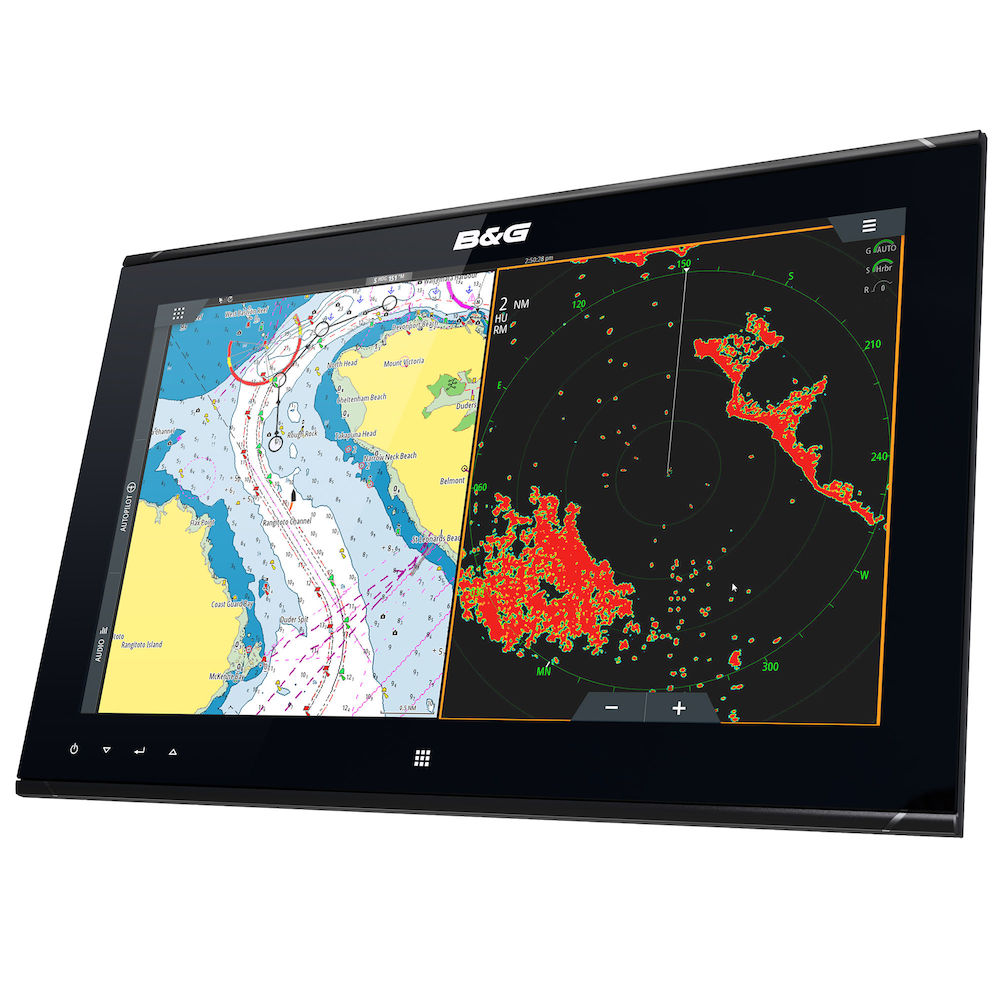

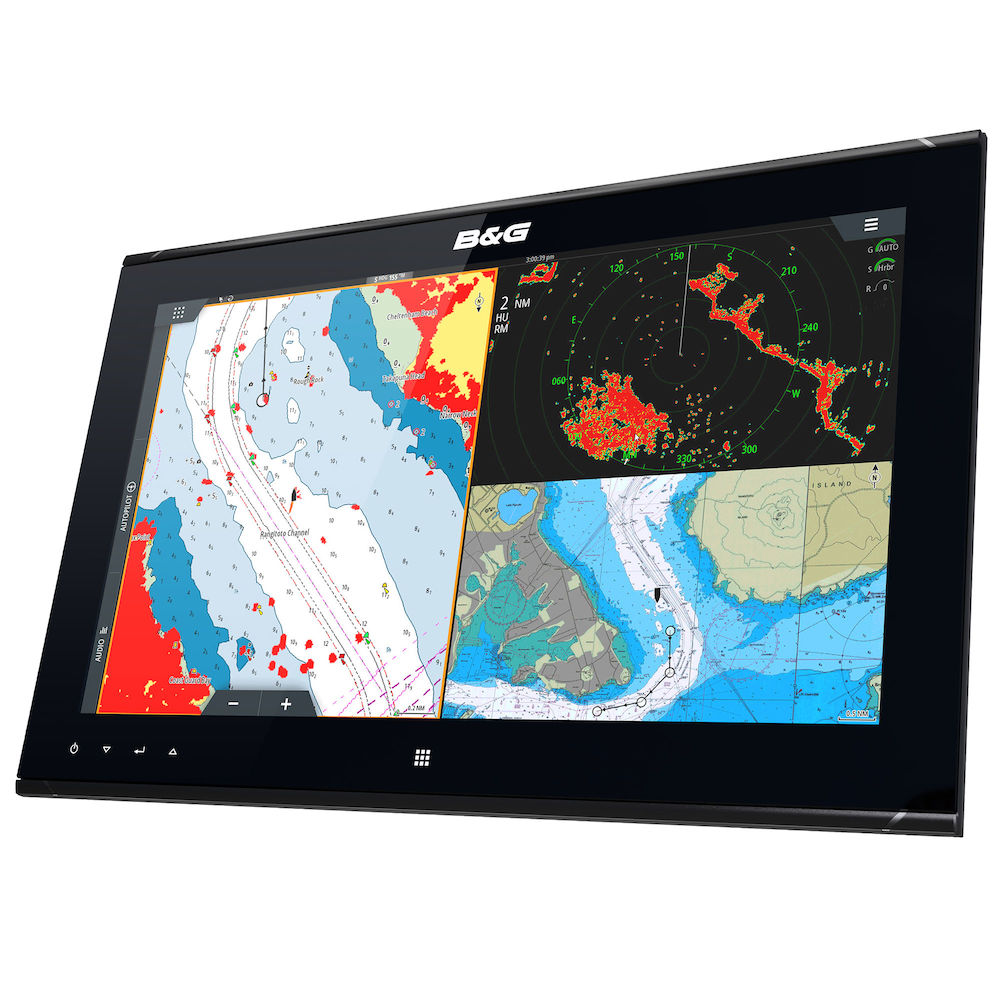

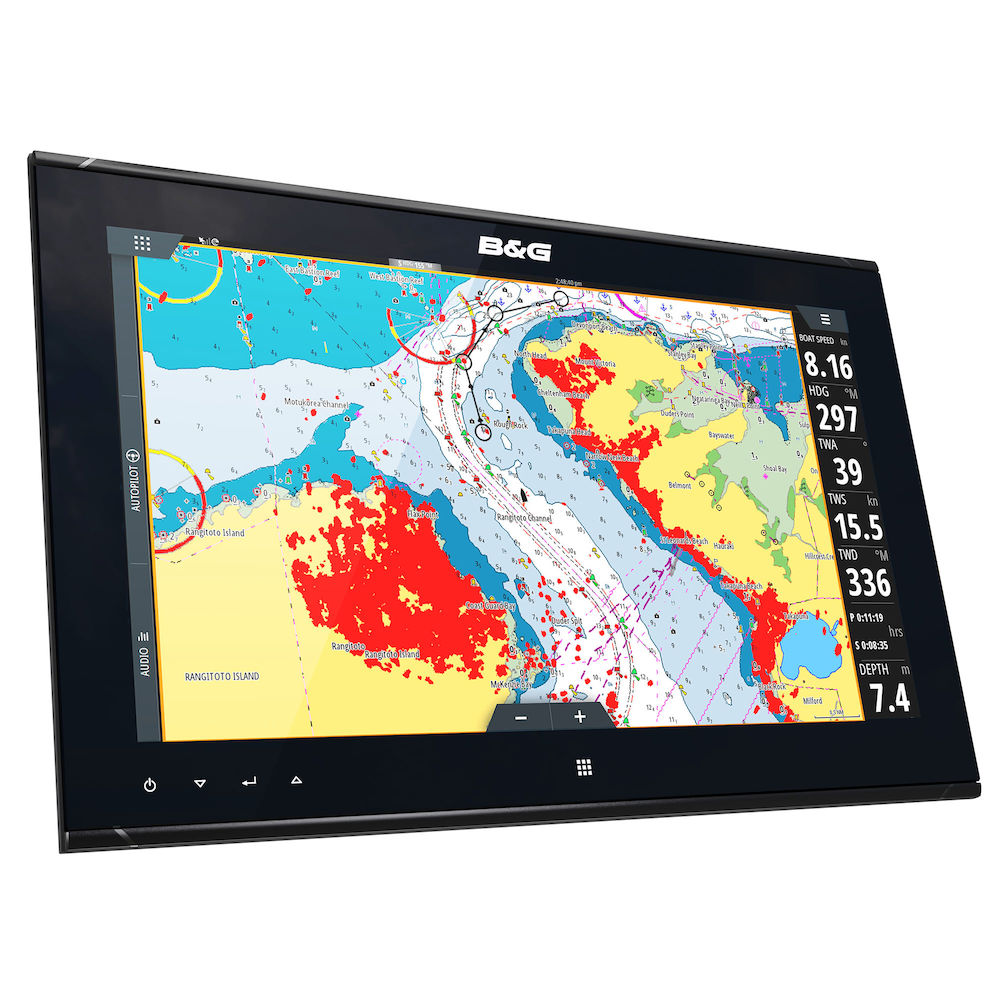

These IPX6 water-resistant displays are available in 16, 19 and 24 inch sizes, with the choice of either touchscreen or keypad versions. Our touchscreen monitors are perfect for outdoor use, featuring extra bright sunlight-viewable screens, while our non-touch monitors are great for enclosed pilothouses or cabins.

Unbeatable connectivity
Zeus³S Glass Helm offers vessel-wide integration, with Ethernet and industry-standard NMEA 2000® connectivity with an extensive selection of third party accessories. Connect with radar, autopilot, audio, Forwardscan and much more.

• The fastest / most responsive B&G System yet
• Combine with up to two Large Wide Format Touchscreen Monitors (16”/19”/24”)
• Connects to B&G’s performance network modules for the ultimate offshore performance: Halo Radar, Autopilot, ForwardScan™, NMEA 2000 and 0183, Integrated Pilot Control
• Full suite of sailing features: Sailsteer, PredictWind, RacePanel, LayLines and SailingTime
• Extended visibility with six-panel split screen option
• Built in Wi-Fi, HDMI and Video Inputs
• Connect with smartphones, tablets, and internet hotspots
• Kit includes ZC2 keypad, GPS antenna, and chart card reader

Approvals

Compliance	CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1

Autopilot

Manouevres / Turn Patterns	Tack / Gybe, Depth contour tracking
Steering Modes	Auto, Nav., No Drift, Follow up, Non-follow up, Standby, *Wind, *Wind NAV. (*Boat type set to Sail)

Connectivity

NMEA 0183 Sentences supported	Input: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, HDT, HDM, MWV, MWD, DSC, DSE, VDM. (Note AIS sentences are not bridged to or from NMEA 2000)Output: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, MWV, MWD, TLL, TTM
Bluetooth	No
Ethernet	3 x 100 Mbits/s ports, RJ45 (max 3 MPU on network)
N2K PGNs	Receive only59392 ISO Acknowledgement, 59904 ISO Request, 60928 ISO Address Claim, 65285 Temperature with Instance, 65323 Data User Group Request, 65325 Reprogram Status, 65341 Autopilot Mode, 65480 Autopilot Mode, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127503 AC input status, 127504 AC Output Status, 127505 Fluid Level, 127506 DC Detailed Status, 127507 Charger Status, 127508 Battery Status, 127509 Inverter Status, 129033 Time & Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Addressed Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 129809 AIS Class B “CS” Static Data Report, Part A, 129810 AIS Class B “CS” Static Data Report, Part B, 130313 Humidity, 130314 Actual Pressure, 130576 Small Craft Status, 130842 SimNet DSC Message, 130851 Event Reply, 130817 Product Info, 130820 Reprogram Status, 130832 Fuel Used – High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130843 Sonar Status, Frequency and DSP Voltage,Transmit and Receive:61184 Parameter Request/Command, 65289 Trim Tab Insect Configuration, 65291 Backlight Control, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 126208 ISO Command Group Function, 126992 System Time, 126996 Product Info, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, Water referenced, 128267 Water Depth, 128275 DistanceLog, 129025 Position, Rapid Update, 129026 COG & SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats in View, 130074 Route and WP Service – WP List – WP Name & Position, 130306 Wind Data, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130831 Suzuki Engine and Storage Device Config, 130835 SetEngineAndTankConfiguration, 130839 Pressure Insect ConfigurationTransmit only65287 Configure Temperature INSOcts, 65290 Paddle Wheel Speed Configuration, 129285 Route/Waypoint Data, 130818 Reprogram Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Insect Configuration, 130837 Fuel Flow Turbine Configuration
NMEA 0183	2 x Tx, 2 x Rx NMEA0183, One on each display head. Baud Rates 4800, 9600, 19200, 38400. TX and RX use same baud rate. Optional data cable required (P/N 000-11247-001)
NMEA 2000	1 x NMEA 2000 Micro-C port, 1 LEN
PC Connectivity	No
Video	Inputs: 2 x composite (BNC connectors), PAL or NTSC: Output 1 x HDMI
WiFi	Compatible with WIFI-1 external module

Display

Resolution	Output Resolutions 1366×768 (WXGA), 1920×1080 (Full HD 16:9), 1920×1200 (WUXGA 16:10), 1280×800 (16:10), 1280×1024 (SXGA 5:4)

Electrical

Power Consumption, max.	45W
Recommended Fuse Rating	5A
Supply Voltage	10 – 32 V DC

Environment

Operating Temperature Range	-15°C to +55°C (5° F to 131° F)
Storage Temperature Range	“-20°C to +60°C (4°F to 140°F)
Waterproof rating	IPX2

MFD

AIS	Receive AIS data over NMEA 2000 or *NMEA 0183 (has to be wired to both NMEA 0183 ports on the MPU)
Autopilot	Wind*, Auto, Nav., No Drift, Follow up, Non-follow up, Standby, *Wind NAV. (*Boat type set to Sail). Requires STBY button or Controller with STBY button to commission
Cartography included	World basemap
Cartography supported	Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+)
Digital Switching	BEP C-Zone
External Storage	1 SD slot, or optional USB reader. max. 32GB
GPS	External GPS required
Internal Storage	90 MB
Multimedia	via SonicHub2, FusionLink, *Sirius (*USA only)
Radar (inc. compatibility)	Halo Pulse Compression Radar, Broadband Radar, HD Radars
Sonar (inc. compatibility)	No Internal echosounder. Compatible with: SonarHub, StructureScan, StructureScan3D, BSM-3, BSM-2, BSM1 network echo sounders
Weather	SiriusXM (USA only), GRIB, Predict Wind
Waypoints, Routes, Tracks	6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.
Compass Safe Distance – Metric, imperial	50 cm (20″)

Physical

Dimensions (W x H x D)	281 x 232 x 66 mm (11 x 9.1 x 2.5″)
Mounting Type	Bracket (Supplied) , panel, flush
Weight	1.06 kg (2.33 lbs.)

Other

Warranty Period	2 Years
Interface	Touch control on M0xx-T Monitors, USB Keyboard, USB Mouse ZC1, ZC2 remotes
Languages	Standard Language Pack: English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, SwedishAsian Language Pack: English (US), Japanese, Korean, Thai, Chinese, Eastern European Language Pack: English (US), English (UK), Bulgarian, German, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Lithuanian, Latvian, Polish, Slovak, TurkishRussia/Ukraine Language pack: English (US), English(UK), German, Spanish, French, Italian, Russian, UkrainianMiddle Eastern Language Pack: English (US), English (UK), Arabic, German, Spanish, Farsi, French, Italian

Weight	9,362 kg
Dimensions	45 × 55 × 9,362 cm
SKU	000-15125-001
Brand	B&G
Class Type	MFD
GTIN	9420064108435
Component	Head/Display
Family	B&G Zeus3S GH
Item Type	KIT
Model	B&G 16
