Scout KS-22 Black Edition
3 db VHF fiberglass antenna 1,5 m (5′) length – Black Edition
SCOUT celebrates the 30° anniversary with the new collection of antennas Black Edition. These design antennas fit perfectly with black boats, grey boats, and with metal/alluminium finishings.

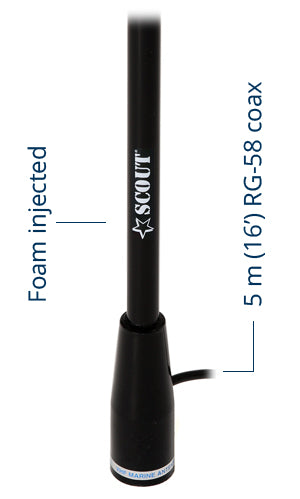

The KS-22 Black Edition is built with a 1,4 mm thick fiberglass whip that gets fully foam injected with the special Scout 100% waterproof technique.The antenna is supplied with 5m RG-58 MIL cable and 1 PL-259 connector to complete the installation on board.
- Black Edition
- Foam injected – 100% WATERPROOF – IP69
- 5 m coaxial cable RG 58 CU MIL
Technical specifications:
| Frequency | 156-162 MHz |
| Impedance | 50 ohm |
| Electrical length | 1/2 λ |
| V.S.W.R. | < 1,5:1 |
| Polarization | Vertical |
| Gain | 3 dB |
| Max power input | 50 W |
| DC ground | Yes |
| Whip material | Fiberglass |
| Coaxial cable | 5 m (16,4′) RG 58 CU MIL |
| Mounting | 1″ x 14 thread |
| Length | 1,5 m (5′) |
| Weight | 0,39 kilo |
| Code | PF AN NVHF00004 |
