Garmin Fusion® Signature Series 3i Marine Subwoofers Sport Grey CRGBW 10″

Bring the thunder. The Signature Series 3i subwoofers deliver the drama with the premium low frequencies to enhance your listening experience.

MARINIZED CONNECTORS

New, water-resistant connectors now come standard. This makes installation easy and provides superior protection from the harsh marine environment.

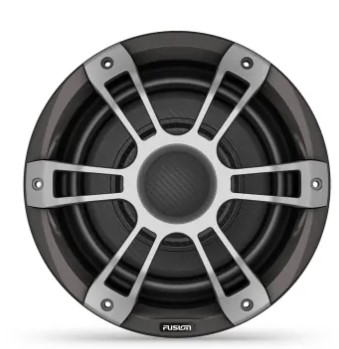

REDESIGNED GRILLE

Material enhancements and protective engineering maintain the sharp aesthetic appeal of your speakers, year after year.

TRUE-MARINE^™ PHILOSOPHY

Any product that bears the Fusion True-Marine seal of assurance has been designed by Fusion to withstand the harshest marine environments season after season and comes with an industry-leading 3-year warranty.

POLYPROPYLENE CONE TECHNOLOGY

This technology provides exceptional self-dampening, high-fidelity and bass reproduction to give you the most premium onboard listening experience imaginable.

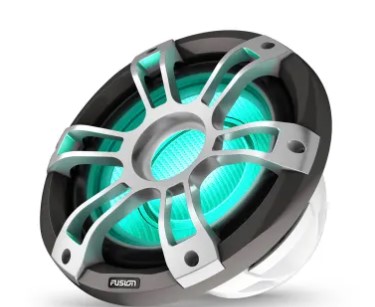

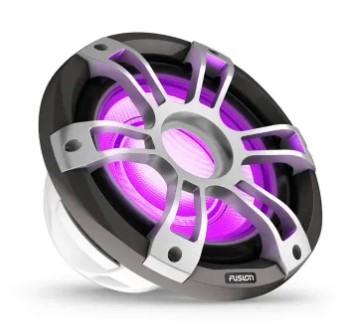

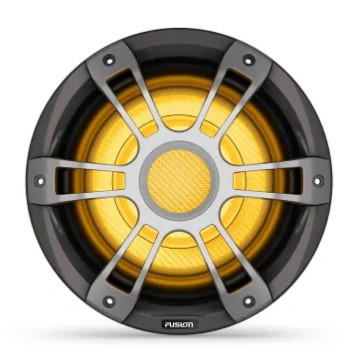

LED ILLUMINATION

Cool white, red, green, blue, warm white. You can choose or mix colors to match the mood of your music.

SYSTEM INTEGRATION

These subwoofers are designed to work optimally with Fusion^® stereo systems and amplifiers (sold separately) with custom DSP profiles. This requires the Fusion Audio smart-device app for setup.

SPORTS SUBWOOFER

Available in white or gray, CRGBW LED lights are standard on 12” size and optional on 10” size.

Content:

• One subwoofer
• 6 Phillips stainless steel mounting screws, 4.8 mm x 50 mm (10 gauge x 2”)
• Water-resistant cable assembly with 2-pin connector (5.9″ (150 mm))
• Documentation

Specifications:

General
Physical dimensions (diameter x depth)	10.83″ x 6.77″ (275 x 172 mm)
Weight	11.3 lbs (5.12 kg)
Water and dust rating	IP65
Peak power (Watts)	600 watts
RMS power rating (watts)	300 watts
Sensitivity (1 watt @ 1 metre)	86 dB
Magnetic structure	68 oz
Frequency response	30 Hz–2 kHz
Nominal impedance	4 ohm
Recommended amplifier power (watts RMS)	50–600 watts
LED lighting	Yes, CRGBW
LED supply voltage	10.8–16 VDC
LED load current @14.4 VDC (max)	300 mA
Operating temperature range	32–122 degrees F (0–50 degrees C)
Voice coil diameter	2″
Cone material	Polypropylene cone with rubber surround
Compass-safe distance	205″ (520 cm)
Subwoofer connection	Flying lead with water-resistant 2-way connector, 5.9″ (150 mm)
LED connection	Flying lead with water-resistant 6-way connector, 5.9″ (150 mm)
Warranty	3 years



Mounting Dimensions
Mounting diameter clearance	8.78″ (223 mm)
Mounting depth clearance	5.24″ (133 mm)



Optimum enclosure recommendations
Sealed enclosure volume (fully filled with absorption material)	0.95 cubic ft (27 L)
Ported (vented) enclosure volume (lined with absorption material)	1.6 cubic ft (45 L)
Port diameter	4.1″ (104 mm)
Port length	10.43″ (265 mm)
