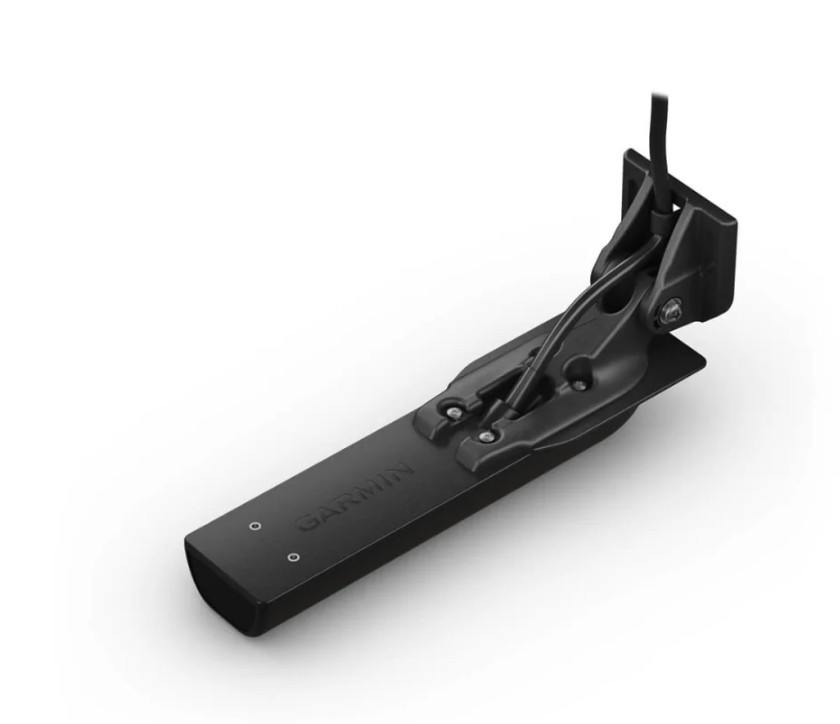

Garmin GT36UHD-TM

Thanks to the ClearVü and SideVü high-definition exploration probes, which provide totally sharp images of fish and structures, this transducer offers the ultimate in versatility, so you can spend more time fishing.

CLEARVÜ HIGH-DEFINITION SCANNING PROBE

Get totally sharp images of the structures and fish under the boat at greater depths than any other high-frequency exploration probe. A downward-facing element increases the power for the detection of targets.

SIDEVÜ HIGH-DEFINITION EXPLORATION PROBE

Observe everything the first time with incredibly sharp images of the structures and fish that are on the sides of the boat. Now, the SideVü probe has 20% more range at 1000 kHz, so you can see even further than before.

VARIOUS EXPLORATION PROBE FREQUENCIES

Use the perfect frequency for the waters you are in. The transducer provides 455 kHz, 800 kHz and 1000 kHz to ensure maximum performance at any depth.

INTENSE COLOR RANGES

Thanks to the intense and high-contrast color ranges of the exploration probes, distinguishing objectives and structures has never been easier.

ASSEMBLY OPTIONS

We all have our preferences. Hence, we have included mounting components for both the aft mirror and the electric motor.

TRADITIONAL CHIRP PROBE OPTIONAL

Use a Y-cable (sold separately) to link it with a Garmin GT8HW-IH or GT15M-IH transducer (sold separately) and add a traditional high-frequency band CHIRP probe to obtain an extraordinarily clear lens separation.

Specifications:

Physical And Performance Characteristics
FREQUENCY	ClearVü/SideVü: 455 kHz (425-485 kHz), 800 kHz (790-850 kHz) y 1000 kHz (940-1100 kHz)
ENERGY	ClearVü/SideVü: 500 W
BEAM WIDTH	ClearVü 0,52 x 52 a 1000 kHz 0,64 x 35 a 800 kHz 1,1 x 52 a 455 kHzSideVü 0,52 x 52 a 1000 kHz
MAXIMUM DEPTH	ClearVü: 122 m; SideVü: 152 m
CABLE LENGTH	7,62 m
DEPTH/SPEED/TEMPERATURE	Depth and temperature
NUMBER OF SIDEBURNS	12 pin
AFT MIRROR ANGLES ALLOWED	Stern mirror angle of 0°-70°



Brand	Garmin
