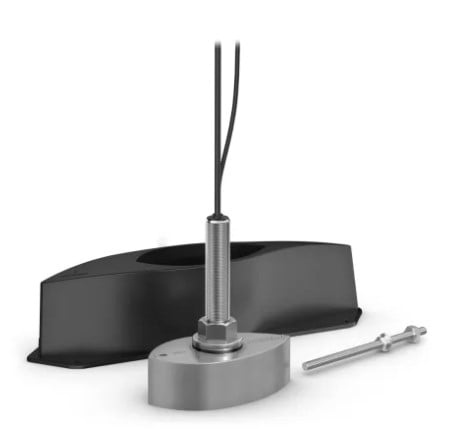

Garmin Panoptix™ PS70 With Transducer and Fairing Block
Garmin Panoptix™ PS70 With Transducer and Fairing Block - Image 2
Garmin Panoptix™ PS70 With Transducer and Fairing Block - Image 3
Garmin Panoptix™ PS70 With Transducer and Fairing Block - Image 4

Garmin Panoptix™ PS70 With Transducer and Fairing Block

Original price was: 5.999,99 €.Current price is: 4.958,69 €.
You save

The Panoptix PS70 stainless steel thru-hull transducer is powered by Garmin RapidReturn™ sonar, which gives you live sonar views up to 1,000’ below the surface.

×
Total:
Request a Quote
SKU: 010-02768-00 Category:
Terms and Conditions
LOCAL DELIVERY OPTIONS

Standard Delivery usually 3-7 days.
Express Delivery usually 2-4 days.

PRICE GUARANTEE

If you find a cheaper price in the next 72 hours we will match it.

1ST ORDER DISCOUNT

Claim your initial 5% discount on your first order by registering on the SailRACE community.

CERTIFIED SUPPORT

Get support by officially certified experts. Detail us your refitting needs and we will help you determining the best solution.

Detailed Information

The Panoptix PS70 stainless steel thru-hull transducer is powered by Garmin RapidReturn™ sonar, which gives you live sonar views up to 1,000’ below the surface.

GARMIN RAPIDRETURN SONAR

This sonar sends multiple simultaneous pings through the water column. The result is live sonar capabilities up to 1,000’, giving deep sea anglers a real-time view of what’s below the surface.

LIVEVÜ™ DOWN SONAR

See real-time live sonar images up to 1,000’. With Garmin RapidReturn, anglers can see small baitfish and target game fish in real time. The wide 120-degree beam angle covers huge areas of water.

TRADITIONAL SONAR

View crisp, clear fish arches with excellent separation of targets under the boat.

TRIPLE-BEAM SONAR

Get a 3-way traditional sonar split that gives sonar returns from the port and starboard directions, as well as targets directly under the boat, in an easy-to-understand traditional sonar view. Adjust the beam angles to fine-tune your 3 columns of sonar data.

REALVÜ™ 3D SONAR

Historical scanning technology helps find fish and build a map of the ocean floor while your boat is moving. It shows the entire water column you have passed over in 3D, from the bottom to the surface and all fish in between. The True Motion 3D sonar returns feature now follows the vessel’s course over ground.

QUICKDRAW CONTOURS FEATURE

Survey areas of the ocean floor in great detail. New QuickDraw Contours feature improvement allows users to survey wide swaths of the ocean floor, even at depths up to 1,000’.

LIVE SONAR DISPLAY RATE

Panoptix PS70 will display at a minimum of 10 frames per second (6 to 8 times faster than the competition), which results in faster sonar returns.

WIDE SONAR BEAM

Locate bait and fish quickly with wide 120-degree by 8-degree sonar beam, which covers more of the water column at once.

IMAGE STABILIZATION

An internal sensor will stabilize sonar returns, so you see a clear view even in rough waters.

THRU-HULL INSTALLATION

The stainless steel thru-hull transducer can be flush mount or pocket mounted. A fairing block allows for deadrise angles of 0 to 20 degrees. The optional fairing block can survive high operating speeds and withstand the rough conditions found offshore.

HIGH-POWER SONAR

800-watt power output gives you stronger sonar penetration through the water.

Content:

  • PS70 down-looking thru-hull down transducer
  • Fairing block
  • Stainless steel thru-hull mounting hardware
  • Power cable
  • Network cable 40 ft (12 meters) with network adapter
  • Documentation

Specifications:

General
Transducer beamwidth 120° x 8°
Transducer cable length 8 ft + 40 ft extension
Dimension 8.50″ x 4.49″ x 9.61″ (21.6 x 11.4 x 24.4 cm)
Weight 10.12 lbs (4.6 kg)
Temperature range 0° C to 40° C



Electrical Features
Power input 10-35 V
Power usage 35 W
Fuse 7.5 A



Sonar Features
Frequency 190-210 kHz
Transmit power 800 W
Maximum depth Saltwater: 1000′ (304.8 m)
Sonar Type Multi-beam phased array



Connections
Garmin Marine Network Ports 1 (small connector)



Sonar Modes
RealVü 3D Historic
3-beam traditional
Traditional sonar source
