Harken 10mm “D” Shackle — High Resistance

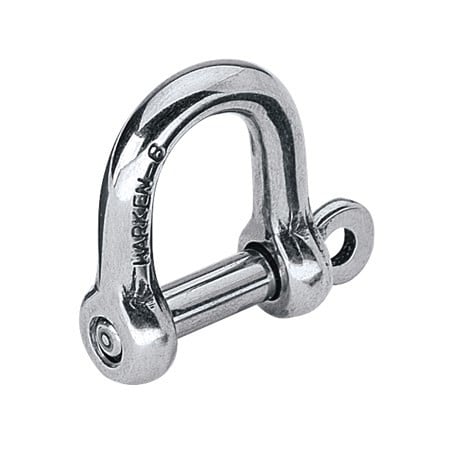

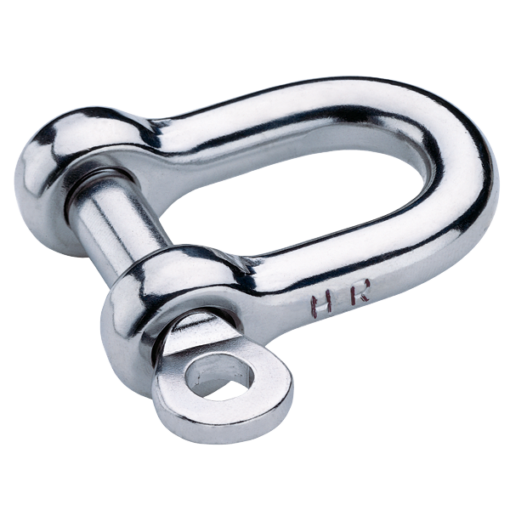

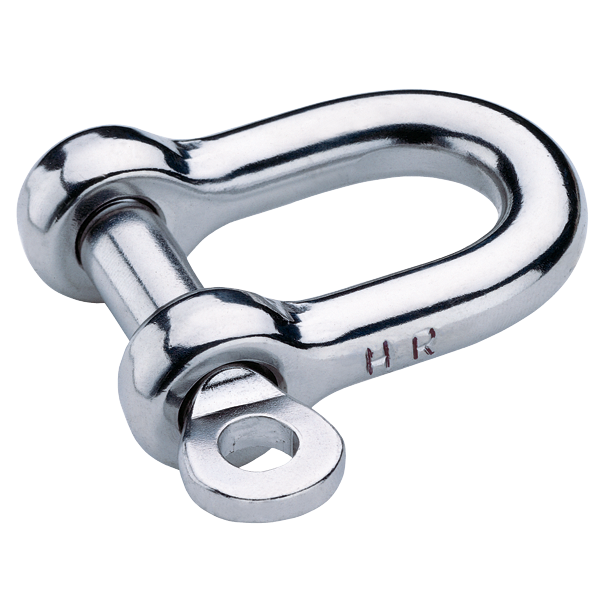

Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. High-Resistance (HR) shackles are forged in 17-4PH stainless steel to handle high loads. They have an “HR” imprint for easy identification. Shackle pin Ø (mm) 10 mm
Shackle pin Ø (in) 13/32 in
Weight (g) 111 g
Weight (oz) 3.92 oz
A (mm) 32 mm
A (in) 1 1/4 in
B (mm) 20 mm
B (in) 13/16 in
Maximum working load (kg) 3720 kg
Maximum working load (lb) 8210 lb
Breaking load (kg) 7450 kg
Breaking load (lb) 16420 lb

Brand	HARKEN
SKU	2123
GTIN	097653035992
