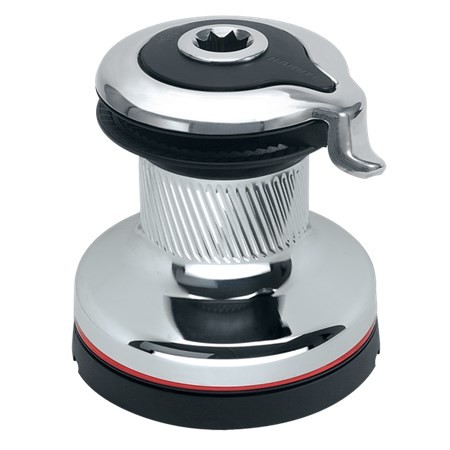

Harken 20 Self-Tailing Radial Chrome Winch

The Radial winch drum’s gripping surface is shaped for each winch size and drum material and features diagonal ribs (rather than textured abrasive materials) to maximize gripping power and greatly reduce line wear. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails. Material Chrome
Configuration Self-tailing
Speed 1
Drum Ø (mm) 73 mm
Drum Ø (in) 2 7/8 in
Base Ø (mm) 137 mm
Base Ø (in) 5 3/8 in
Height (mm) 148 mm
Height (in) 5 13/16 in
Weight (kg) 3.4 kg
Weight (lb) 7.5 lb
Line entry height (mm) 61 mm
Line entry height (in) 2 3/8 in
Minimum line Ø (mm) 6 mm
Minimum line Ø (in) 1/4 in
Maximum line Ø (mm) 12 mm
Maximum line Ø (in) 1/2 in
Fastener circle (mm) 110 mm
Fastener circle (in) 4 3/8 in
Fasteners (mm) 6 SH mm
Fasteners (in) 1/4 SH in
Number of fasteners 5
Gear ratio – 1 2.76
Power ratio – 1 19.20
Available power Manual

Brand	HARKEN
SKU	20STC
GTIN	097653600411
