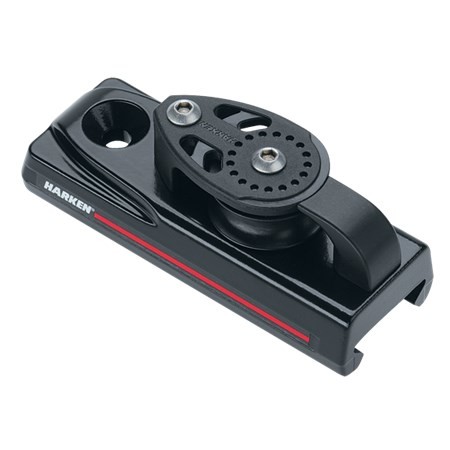

Harken 27mm ESP End Control — Dead End, 3. 1, Set of 2

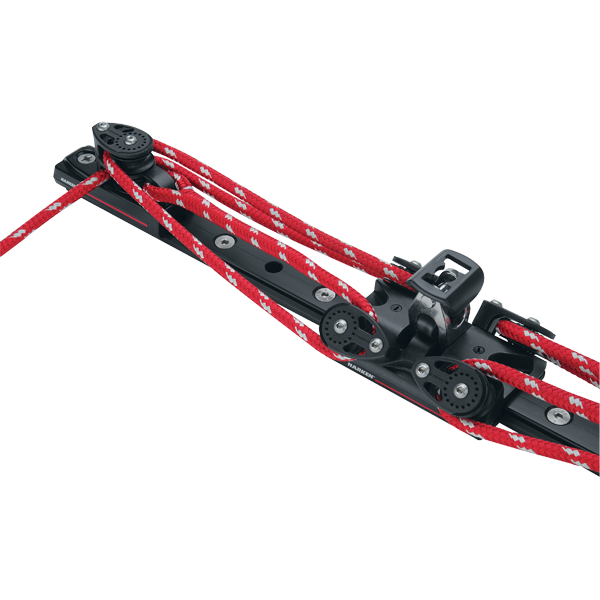

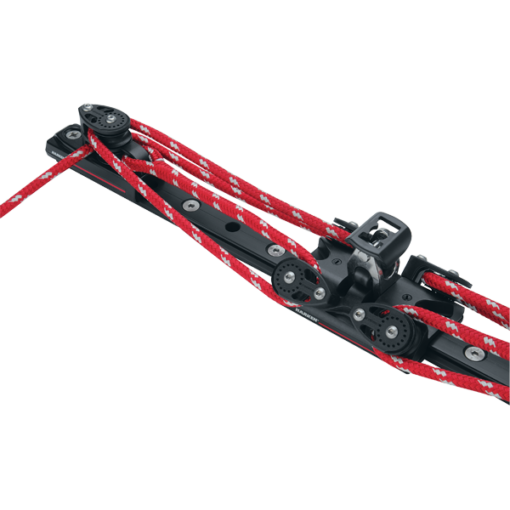

ESP end controls are value-oriented options for the installation of 2:1 to 5:1 systems. Designed for strength and durability, controls feature axle bearing sheaves with sideload ball bearings. Sheave Ø (mm) 35 mm
Sheave Ø (in) 1 3/8 in
Length (mm) 122 mm
Length (in) 4 13/16 in
Width (in) 1 13/16 in
Width (mm) 45 mm
Height above track (mm) 36 mm
Height above track (in) 1 7/16 in
Weight for pair (g) 554 g
Weight for pair (oz) 19.54 oz
Maximum line Ø (mm) 10 mm
Maximum line Ø (in) 3/8 in
Maximum working load (kg) 816 kg
Maximum working load (lb) 1800 lb
Breaking load (lb) 3600 lb
Breaking load (kg) 1633 kg
Purchase 1:1 / 2:1

Brand	HARKEN
SKU	E2730
GTIN	097653229032
