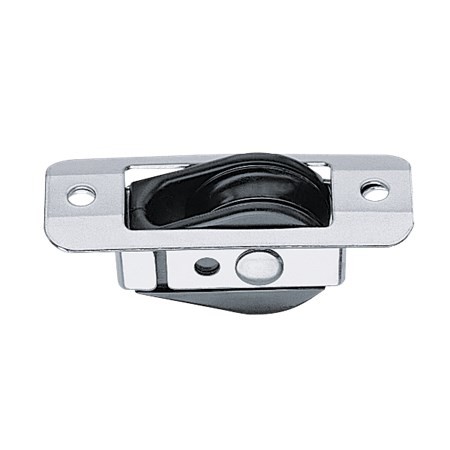

Harken 29mm Through-Deck Bullet Block — Stainless Steel Cover

Low-friction Bullet blocks lead control lines aft. They are compact and lightweight, with fast trim and release under high or low loads. A range of styles lets these blocks adapt to almost all control line applications. Sheave Ø (mm) 29 mm
Sheave Ø (in) 1 1/8 in
Length (mm) 76 mm
Length (in) 3 in
Weight (g) 35 g
Weight (oz) 1.25 oz
Maximum line Ø (mm) 8 mm
Maximum line Ø (in) 5/16 in
Fasteners (mm) 5 RH mm
Fasteners (in) #10 RH in
Mounting hole spacing (mm) 57 mm
Mounting hole spacing (in) 2 1/4 in
Cutout (mm) 19 x 44 mm
Cutout (in) 3/4 x 1 3/4 in
Maximum working load (kg) 136 kg
Maximum working load (lb) 300 lb
Breaking load (kg) 907 kg
Breaking load (lb) 2000 lb

Brand	HARKEN
SKU	287
GTIN	097653010081
