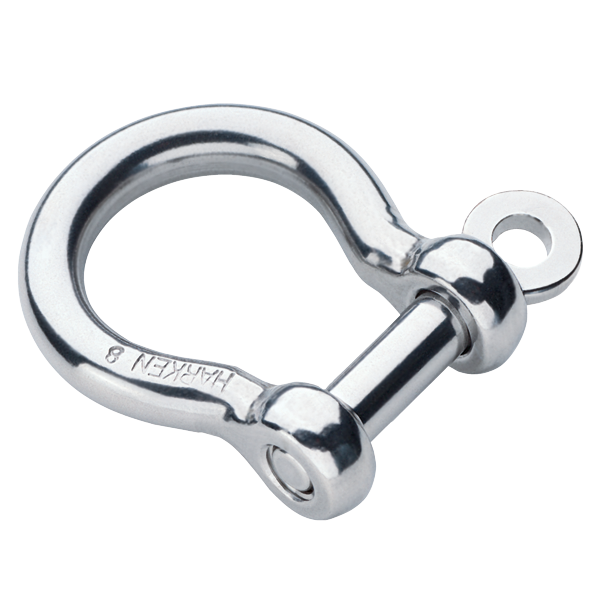

Harken 5mm Captive Halyard Shackle

Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. These shackles have a secondary pin to keep the shackle permanently secured to the halyard and in the correct orientation. Shackle pin Ø (mm) 5 mm
Shackle pin Ø (in) 3/16 in
Weight (g) 32 g
Weight (oz) 1.12 oz
A (mm) 35 mm
A (in) 1 3/8 in
B (mm) 14 mm
B (in) 9/16 in
C (mm) 14 mm
C (in) 9/16 in
Maximum working load (kg) 540 kg
Maximum working load (lb) 1190 lb
Breaking load (kg) 1080 kg
Breaking load (lb) 2380 lb

Brand	HARKEN
SKU	2107
GTIN	097653035831
