Harken 6mm “D” Shackle — High Resistance

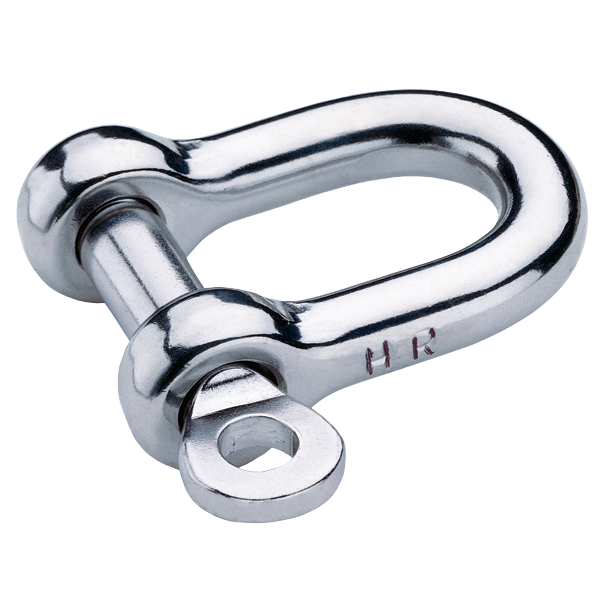

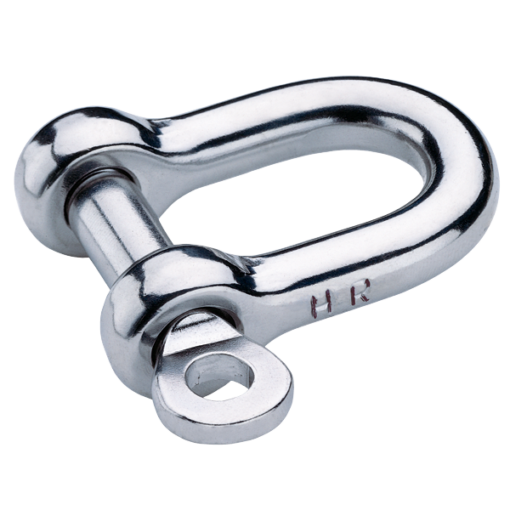

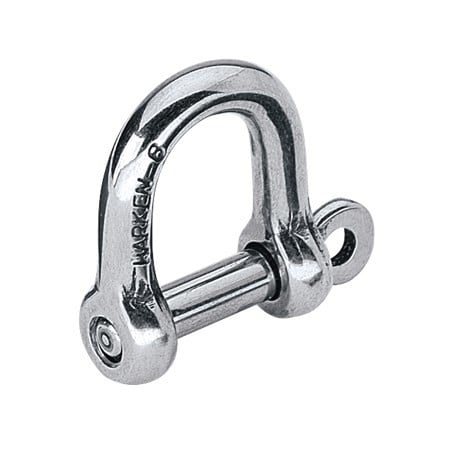

Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. High-Resistance (HR) shackles are forged in 17-4PH stainless steel to handle high loads. They have an “HR” imprint for easy identification. Shackle pin Ø (mm) 6 mm
Shackle pin Ø (in) 1/4 in
Weight (g) 22.5 g
Weight (oz) 0.8 oz
A (mm) 19 mm
A (in) 3/4 in
B (mm) 14 mm
B (in) 9/16 in
Maximum working load (kg) 1260 kg
Maximum working load (lb) 2770 lb
Breaking load (kg) 2510 kg
Breaking load (lb) 5540 lb

Brand	HARKEN
SKU	2109
GTIN	097653035855
