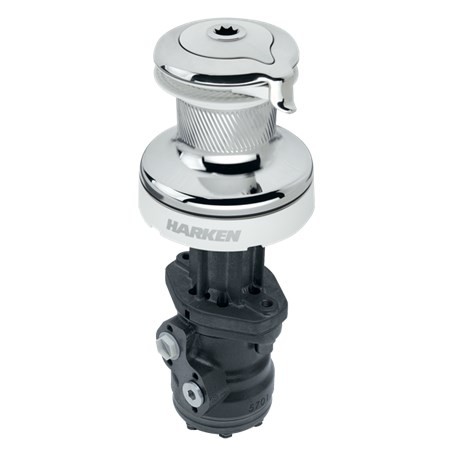

Harken 70 Hydraulic Self-Tailing Radial White Winch — 3 Speed, Vertical

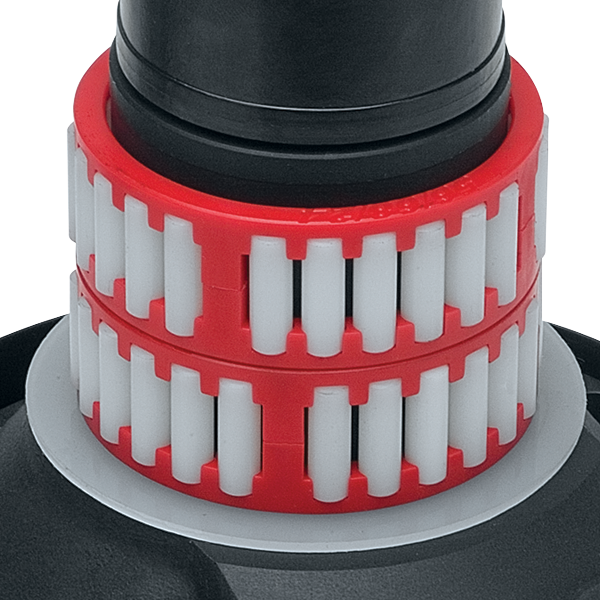

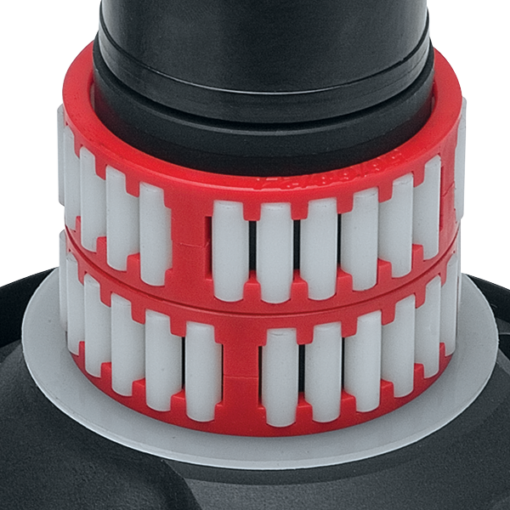

Hydraulic Radial winches let you relax in luxury and trim any size sail with the push of a button. High-strength composite roller bearings reduce friction under load and don’t require lubrication. Load-carrying gears and pins are 17-4PH stainless steel for strength and durability. Material Chrome
Configuration Self-tailing
Speed 3
Drum Ø (mm) 130 mm
Drum Ø (in) 5 1/8 in
Base Ø (mm) 240 mm
Base Ø (in) 9 7/16 in
Height (mm) 264 mm
Height (in) 10 3/8 in
Weight (kg) 16.6 kg
Weight (lb) 36.6 lb
Weight of Winch and Motor (kg) 24.1
Weight of Winch and Motor (lb) 53.2
Motor weight (kg) 7.5 kg
Motor weight (lb) 16.6 lb
Line entry height (mm) 115 mm
Line entry height (in) 4 1/2 in
Minimum line Ø (mm) 10 mm
Minimum line Ø (in) 3/8 in
Maximum line Ø (mm) 18 mm
Maximum line Ø (in) 11/16 in
Fastener circle (mm) 205 mm
Fastener circle (in) 8 1/8 in
Fasteners (mm) M8 SH mm
Fasteners (in) 5/16 SH in
Number of fasteners 6
Gear ratio – 1 2.30
Gear ratio – 2 5.70
Gear ratio – 3 18.50
Power ratio – 1 9.00
Power ratio – 2 22.20
Power ratio – 3 72.00
Available power Hydraulic
Hydraulic L (mm) 234 mm
Hydraulic L (in) 9 1/4 in
Hydraulic N (mm) 130 mm
Hydraulic N (in) 5 1/8 in

MPN	70.3STHCW
GTIN	097653604037
Brand	Harken
SKU	HKN-70.3STHCW
