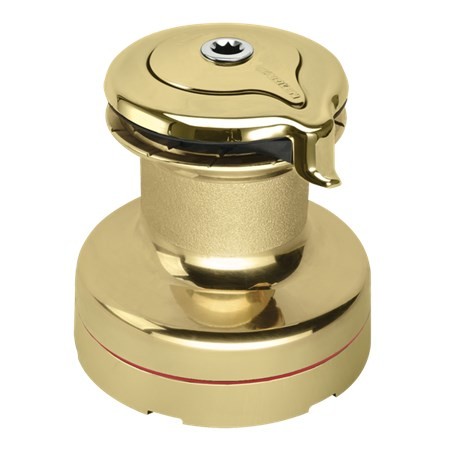

Harken 70 Self-Tailing Radial Bronze Winch — 2 Speed

Harken Radial Line winches have successfully balanced the need for a secure grip and line longevity with smooth, controlled easing while under load. Details sailors will appreciate: smaller winches that carry higher loads, stress-free seasonal maintenance, and one-person installation. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails. Material Bronze
Configuration Self-tailing
Speed 2
Drum Ø (mm) 130 mm
Drum Ø (in) 5 1/8 in
Base Ø (mm) 240 mm
Base Ø (in) 9 7/16 in
Height (mm) 256 mm
Height (in) 10 1/16 in
Weight (kg) 16.7 kg
Weight (lb) 36.8 lb
Line entry height (mm) 115 mm
Line entry height (in) 4 1/2 in
Minimum line Ø (mm) 10 mm
Minimum line Ø (in) 3/8 in
Maximum line Ø (mm) 18 mm
Maximum line Ø (in) 11/16 in
Fastener circle (mm) 205 mm
Fastener circle (in) 8 1/8 in
Fasteners (mm) M8 SH mm
Fasteners (in) 5/16 SH in
Number of fasteners 6
Gear ratio – 1 5.70
Gear ratio – 2 18.50
Power ratio – 1 22.20
Power ratio – 2 72.00
Available power Manual

Brand	HARKEN
SKU	70.2STBBB
GTIN	097653972570
