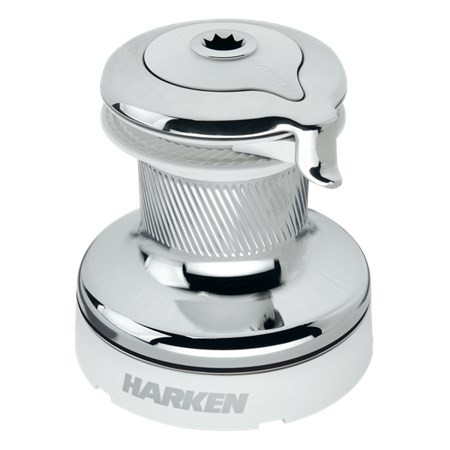

Harken 70 Self-Tailing Radial White Winch — 2 Speed

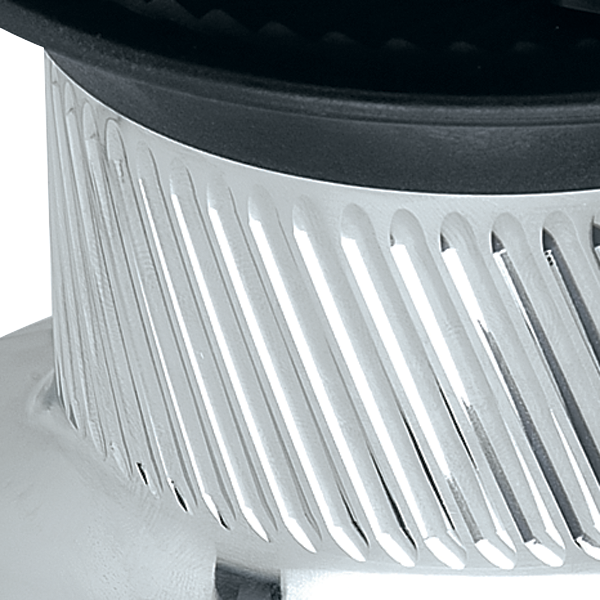

The Radial White is designed for boatbuilders, designers, and sailors looking for a winch that combines bold contemporary styling with the technical excellence Harken® is known for. Winches feature mirror-finished chrome drums with white composite tops, self-tailing jaws, and skirts to provide an aesthetic option on any boat. The Radial winch drum’s gripping surface is shaped for each winch size and drum material and features diagonal ribs (rather than textured abrasive materials) to maximize gripping power and greatly reduce line wear. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails. Material Chrome
Configuration Self-tailing
Speed 2
Drum Ø (mm) 130 mm
Drum Ø (in) 5 1/8 in
Base Ø (mm) 240 mm
Base Ø (in) 9 7/16 in
Height (mm) 256 mm
Height (in) 10 1/16 in
Weight (kg) 15.1 kg
Weight (lb) 33.3 lb
Line entry height (mm) 115 mm
Line entry height (in) 4 1/2 in
Minimum line Ø (mm) 10 mm
Minimum line Ø (in) 3/8 in
Maximum line Ø (mm) 18 mm
Maximum line Ø (in) 11/16 in
Fastener circle (mm) 205 mm
Fastener circle (in) 8 1/8 in
Fasteners (mm) M8 SH mm
Fasteners (in) 5/16 SH in
Number of fasteners 6
Gear ratio – 1 5.70
Gear ratio – 2 18.50
Power ratio – 1 22.20
Power ratio – 2 72.00
Available power Manual

MPN	70.2STCW
GTIN	097653603566
Brand	Harken
SKU	HKN-70.2STCW
