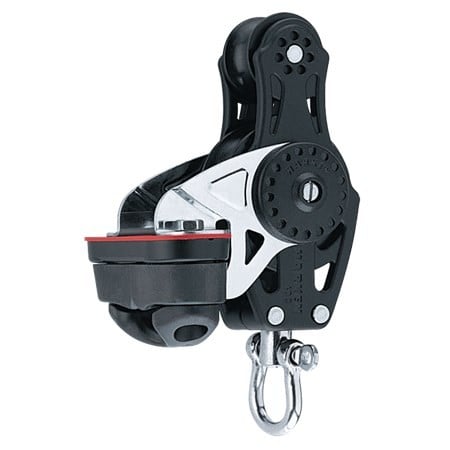

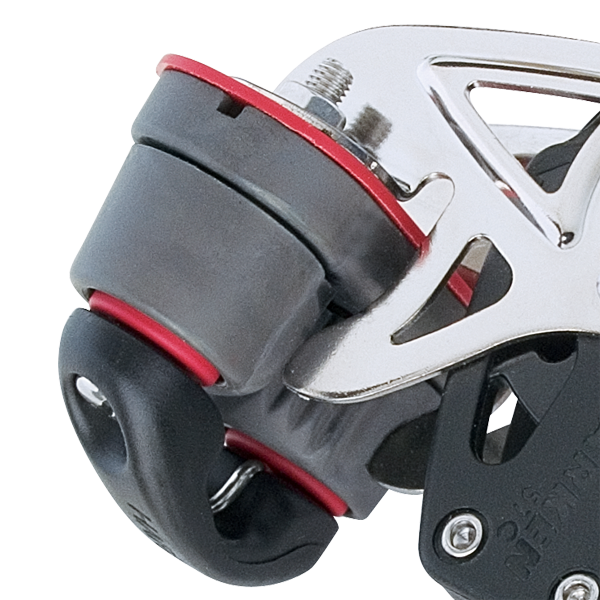

Harken 75mm Fiddle Block — Swivel, Cam Cleat

Low-friction Carbo Air blocks are lightweight, strong, reliable—and affordable. Companions to our popular Harken Big Boat blocks, these small, compact blocks have very high working loads for safe, easy trimming. Sheave Ø (mm) 75 mm
Sheave Ø (in) 2 15/16 in
Length (mm) 157 mm
Length (in) 6 3/16 in
Weight (g) 424 g
Weight (oz) 15 oz
Shackle pin Ø (mm) 6 mm
Shackle pin Ø (in) 1/4 in
Maximum line Ø (mm) 12 mm
Maximum line Ø (in) 1/2 in
Maximum working load (kg) 408 kg
Maximum working load (lb) 900 lb
Breaking load (kg) 1020 kg
Breaking load (lb) 2250 lb
Footnote Maximum working loads and breaking loads for blocks based on cam strengths.

Brand	HARKEN
SKU	2692
GTIN	097653238270
