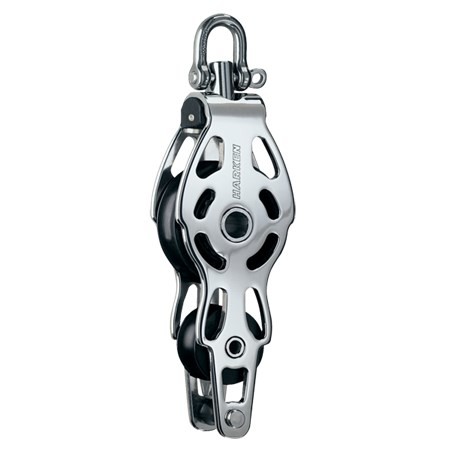

Harken 75mm Stainless Steel Fiddle ESP Block — Swivel

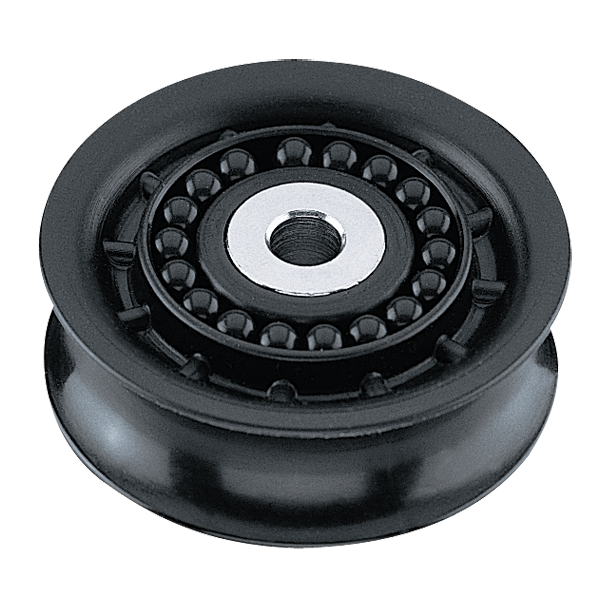

Cruising ESP blocks complement our existing blocks in looks and function, but are simpler in design and construction. Sheaves feature sleeve bearings to handle high static loads and are ideal for halyards or limited purchase systems on cruising boats. Sheave Ø (mm) 75 mm
Sheave Ø (in) 3 in
Length (mm) 213 mm
Length (in) 8 3/8 in
Weight (g) 680 g
Weight (oz) 24 oz
Shackle pin Ø (mm) 8 mm
Shackle pin Ø (in) 5/16 in
Maximum line Ø (mm) 19 mm
Maximum line Ø (in) 3/4 in
Maximum working load (kg) 1587 kg
Maximum working load (lb) 3500 lb
Breaking load (kg) 3175 kg
Breaking load (lb) 7000 lb

Brand	HARKEN
SKU	6080
GTIN	097653124962
