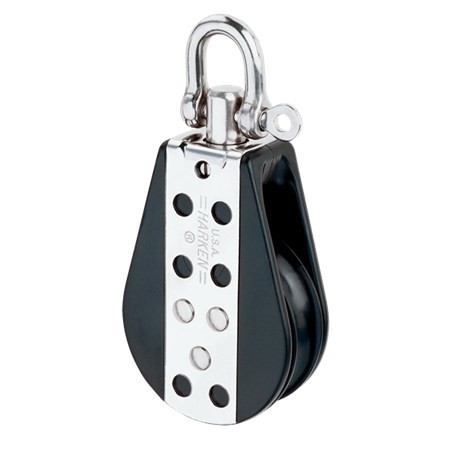

Harken 76mm Block — High Load

Midrange blocks’ robust construction makes them ideal to handle the high loads found on medium and large offshore boats. Sheave runs exclusively on a ball bearing system for fast trim and release under any load. Sheave Ø (mm) 76 mm
Sheave Ø (in) 3 in
Length (mm) 156 mm
Length (in) 6 1/8 in
Weight (g) 367 g
Weight (oz) 13 oz
Shackle pin Ø (mm) 8 mm
Shackle pin Ø (in) 5/16 in
Maximum line Ø (mm) 14 mm
Maximum line Ø (in) 9/16 in
Maximum working load (kg) 1043 kg
Maximum working load (lb) 2300 lb
Breaking load (kg) 2268 kg
Breaking load (lb) 5000 lb

Brand	HARKEN
SKU	1586
GTIN	097653004882
