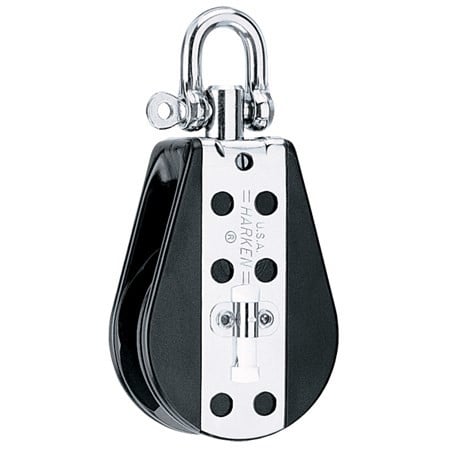

Harken 76mm Hexaratchet® Block — Port

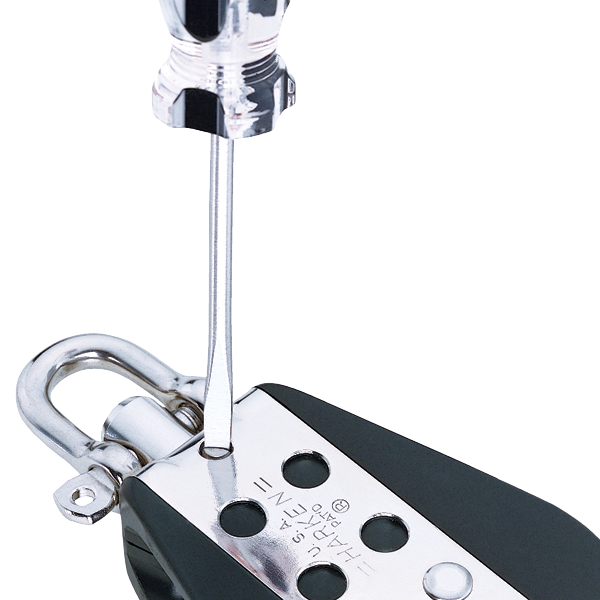

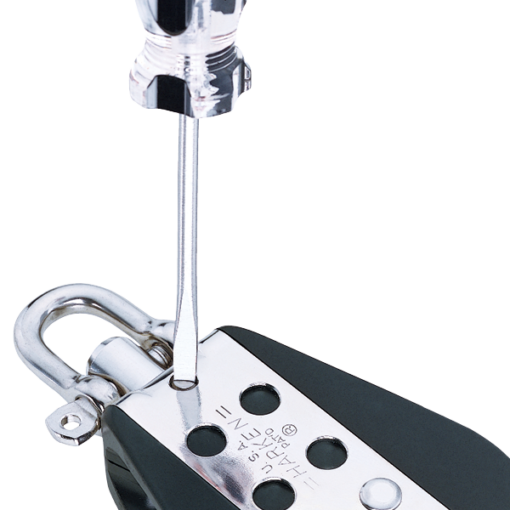

Midrange Hexaratchet blocks grip loaded sheets, yet allow sailors to ease and trim quickly and with complete control. A switch on the side engages and disengages the ratchet mechanism. Sheave Ø (mm) 76 mm
Sheave Ø (in) 3 in
Length (mm) 156 mm
Length (in) 6 1/8 in
Weight (g) 397 g
Weight (oz) 14 oz
Shackle pin Ø (mm) 8 mm
Shackle pin Ø (in) 5/16 in
Maximum line Ø (mm) 14 mm
Maximum line Ø (in) 9/16 in
Maximum working load (kg) 816 kg
Maximum working load (lb) 1800 lb
Breaking load (kg) 2268 kg
Breaking load (lb) 5000 lb
Turns counterclockwise

Brand	HARKEN
SKU	1571
GTIN	097653004745
