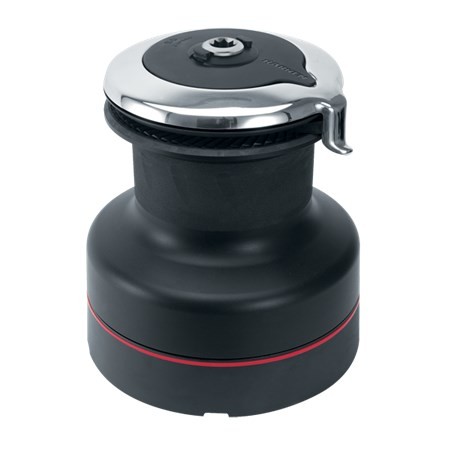

Harken 80 Self-Tailing Radial Aluminum Winch —3 Speed

The Radial winch drum’s gripping surface is shaped for each winch size and drum material and features diagonal ribs (rather than textured abrasive materials) to maximize gripping power and greatly reduce line wear. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails. Material Aluminum
Configuration Self-tailing
Speed 3
Drum Ø (mm) 175 mm
Drum Ø (in) 6 7/8 in
Base Ø (mm) 287 mm
Base Ø (in) 11 5/16 in
Height (mm) 320 mm
Height (in) 12 9/16 in
Weight (kg) 22.7 kg
Weight (lb) 50.1 lb
Line entry height (mm) 164 mm
Line entry height (in) 6 7/16 in
Minimum line Ø (mm) 10 mm
Minimum line Ø (in) 3/8 in
Maximum line Ø (mm) 18 mm
Maximum line Ø (in) 11/16 in
Fastener circle (mm) 233 mm
Fastener circle (in) 9 3/16 in
Fasteners (mm) 10 SH mm
Fasteners (in) 3/8 SH in
Number of fasteners 8
Gear ratio – 1 2.76
Gear ratio – 2 9.94
Gear ratio – 3 32.12
Power ratio – 1 8.01
Power ratio – 2 28.85
Power ratio – 3 93.24
Available power Manual

Brand	HARKEN
SKU	80.3STA
GTIN	097653970071
