Harken 8mm Twist Shackle

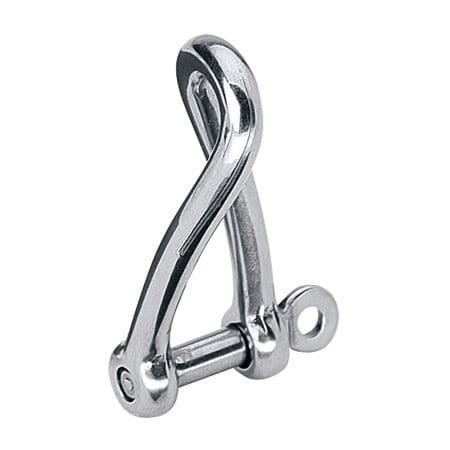

Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. Twist shackles are forged with a 90-degree twist so the two attachment points can be perpendicular without torquing. Shackle pin Ø (mm) 8 mm
Shackle pin Ø (in) 5/16 in
Weight (g) 52 g
Weight (oz) 1.84 oz
A (mm) 41 mm
A (in) 1 5/8 in
B (mm) 17 mm
B (in) 11/16 in
Maximum working load (kg) 1380 kg
Maximum working load (lb) 3040 lb
Breaking load (kg) 2760 kg
Breaking load (lb) 6080 lb

Brand	HARKEN
SKU	2119
GTIN	097653035954
