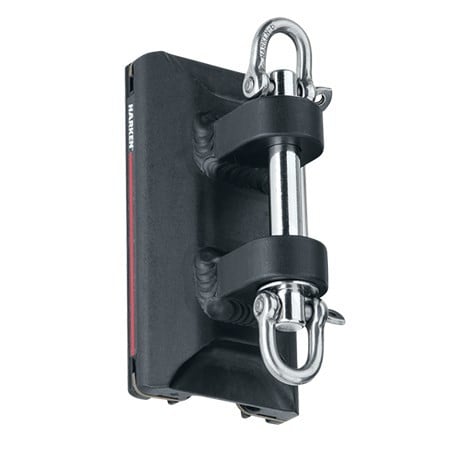

Harken Midrange Bell

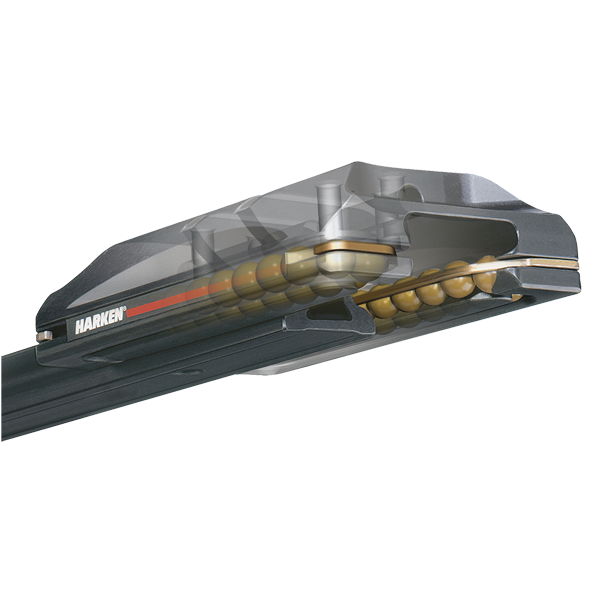

Harken® spinnaker pole cars feature recirculating ball bearings to permit adjustment under any load. They roll freely on low-beam traveler track to allow crew to adjust for optimal sail shape. Midrange and Big Boat cars accept two popular toggle studs and Harken bell end fittings. Maximum spinnaker area (m²) 140 m²
Maximum spinnaker area (ft²) 1500 ft²
Length (mm) 132 mm
Length (in) 5 3/16 in
Width (mm) 70 mm
Width (in) 2 3/4 in
Weight (g) 658 g
Weight (oz) 23.2 oz
Pin Ø (mm) 12 mm
Pin Ø (in) 15/32 in
A (mm) 38 mm
A (in) 1 1/2 in
Maximum working load (kg) 1043 kg
Maximum working load (lb) 2300 lb
Use with track/rail R27
Pole end B120/B130 bell end

Brand	HARKEN
SKU	1646
GTIN	097653259183
