Harken | Unit 0 MKIV Furling System
Original price was: 5.309,26 $.4.778,45 $Current price is: 4.778,45 $.
You save
Wire Ø (1 x 19 SS) (mm) 6 mm
Wire Ø (1 x 19 SS) (in) 7/32 in
Rod Ø (mm) 5.03 mm
Rod Ø (dash) -6
Clevis pin Ø (mm) 11.1 mm
Clevis pin Ø (in) 7/16 in
Terms and Conditions
1ST ORDER DISCOUNT
Claim your initial 5% discount on your first order by registering on the SailRACE community.
CERTIFIED SUPPORT
Get support by officially certified experts. Detail us your refitting needs and we will help you determining the best solution.
Detailed Information

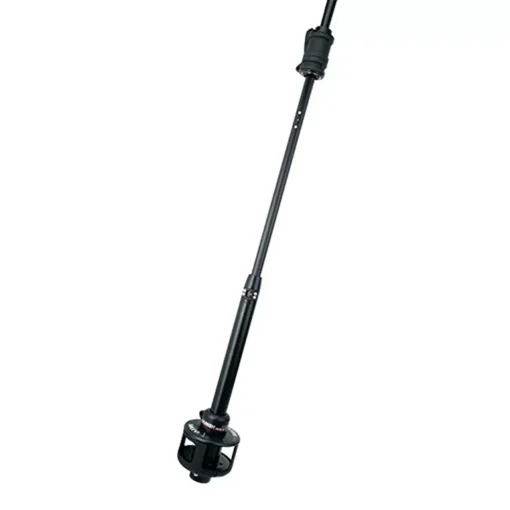

MKIV furling systems are strong, lightweight and aerodynamic, with the performance and features Harken® is known for. Longevity, ease of use, and simplicity of installation are crucial components of the design.
Specifications:
| A (mm) | 96 mm |
| A (in) | 3 3/4 in |
| B (mm) | 150 mm |
| B (in) | 5 7/8 in |
| C (mm) | 47 mm |
| C (in) | 1 7/8 in |
| Wire Ø (1 x 19 SS) (mm) | 6 mm |
| Wire Ø (1 x 19 SS) (in) | 7/32 in |
| Rod Ø (mm) | 5.03 mm |
| Rod Ø (dash) | -6 |
| Clevis pin Ø (mm) | 11.1 mm |
| Clevis pin Ø (in) | 7/16 in |
| Standard headstay length (m) | 11.77 m |
| Standard headstay length (ft in) | 38′ 7″ ft in |
| Maximum headstay length (m) | 13.9 m |
| Maximum headstay length (ft in) | 45′ 7″ ft in |
| D (mm) | 140 mm |
| D (in) | 5 1/2 in |
| E (mm) | 66 mm |
| E (in) | 2 5/8 in |
| F maximum (mm) | 1041 mm |
| F maximum (in) | 41 in |
| F minimum (mm) | 997 mm |
| F minimum (in) | 39 1/4 in |
| G maximum (mm) | 213 mm |
| G maximum (in) | 8 3/8 in |
| G minimum (mm) | 203 mm |
| G minimum (in) | 8 in |
| H maximum (mm) | 186 mm |
| H maximum (in) | 7 5/16 in |
| H minimum (mm) | 175 mm |
| H minimum (in) | 7 in |
| I maximum (mm) | 59 mm |
| I maximum (in) | 2 5/16 in |
| I minimum (mm) | 51 mm |
| I minimum (in) | 2 in |
| J (mm) | 23 mm |
| J (in) | 7/8 in |
| K (mm) | 26 mm |
| K (in) | 1 1/32 in |
| Extrusion length (m) | 2.13 m |
| Extrusion length (ft in) | 7′ ft in |
| Luff tape size (mm) | 5 mm |
| Luff tape size (in) | #6 (6/32) in |
