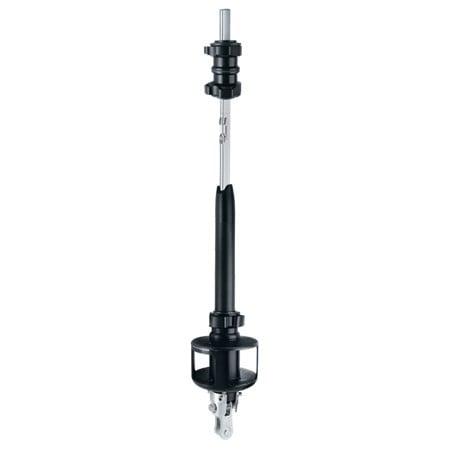

Harken Unit 4 MKIV Furling System

MKIV furling systems are strong, lightweight and aerodynamic, with the performance and features Harken® is known for. Longevity, ease of use, and simplicity of installation are crucial components of the design. Wire Ø (1 x 19 SS) (mm) 16 mm
Wire Ø (1 x 19 SS) (in) 9/16 in
Rod Ø (mm) 14.3 mm
Rod Ø (dash) -48
Clevis pin Ø (mm) 28.57 mm
Clevis pin Ø (in) 7/8 in
Standard headstay length (m) 22.88 m
Standard headstay length (ft in) 75′ 1″ ft in
Maximum headstay length (m) 27.15 m
Maximum headstay length (ft in) 89′ 1″ ft in
A (mm) 227 mm
A (in) 8 15/16 in
B (in) ** in
C (in) ** in
D (mm) 280 mm
D (in) 11 1/16 in
E (mm) 130 mm
E (in) 5 1/8 in
F (mm) 1405 mm
F (in) 55 5/16 in
F maximum (mm) 1405 mm
F maximum (in) 55 5/16 in
G maximum (in) ** in
G minimum (in) ** in
H (mm) 509 mm
H (in) 20 in
H maximum (mm) 509 mm
H maximum (in) 20 in
I (mm) 220 mm
I (in) 8 5/8 in
I maximum (mm) 220 mm
I maximum (in) 8 5/8 in
J (mm) 44 mm
J (in) 1 3/4 in
K (mm) 47 mm
K (in) 1 27/32 in

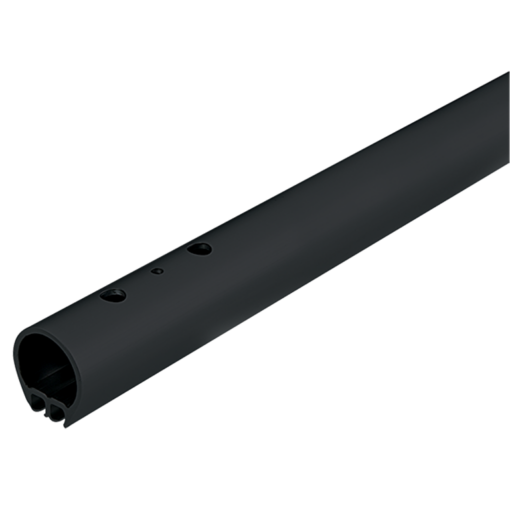

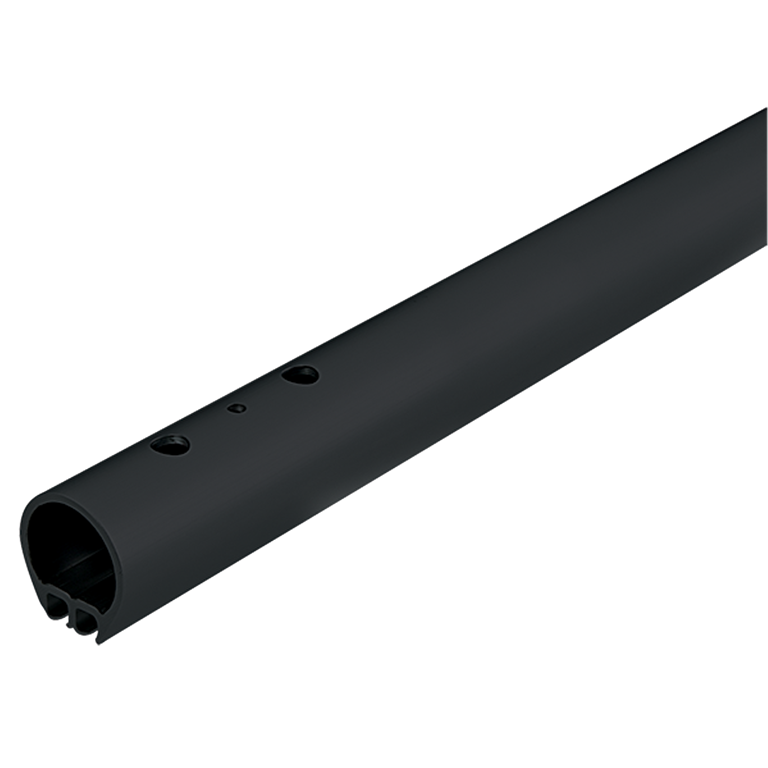

Extrusion length (m) 2.13 m
Extrusion length (ft in) 7′ ft in
Luff tape size (mm) 5 mm
Luff tape size (in) #6 (6/32) in

Brand	HARKEN
SKU	7414.10
GTIN	–
Brand	Harken
