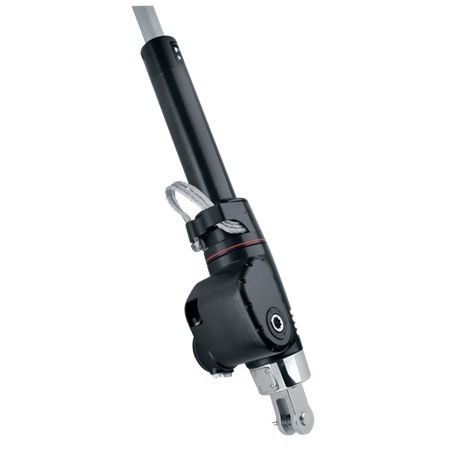

Harken Unit 5 MKIV Hydraulic Furling System — -76, Rod

Harken MKIV Hydraulic Jib Reefing and Furling allow sails to be reefed, furled, or set with the touch of a button. Both tack and head have double swivels, improving sail shape when partially reefed. MKIV hydraulic furlers are used on cruisers and high-performance cruising yachts with headstays up to -76 rod. Rod Ø (mm) 17.91 mm
Rod Ø (dash) -76
Clevis pin Ø (mm) 31.8 mm
Clevis pin Ø (in) 1 1/8 in
Standard headstay length (m) 26.5 m
Standard headstay length (ft in) 87′ ft in
Maximum headstay length (m) 34.7 m
Maximum headstay length (ft in) 114′ ft in

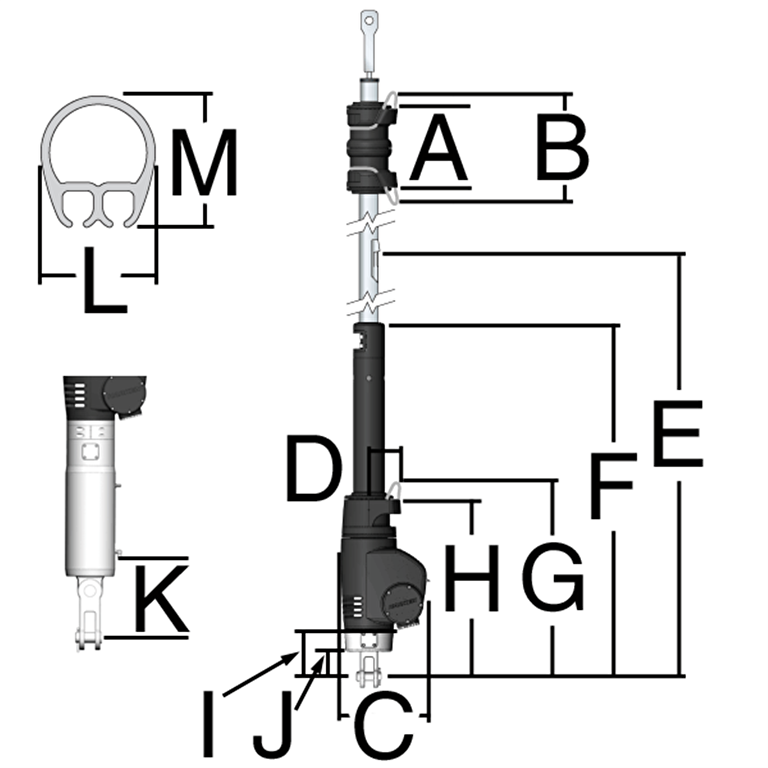

A (mm) 267 mm
A (in) 10 1/2 in
B (mm) 430 mm
B (in) 17 in
C (mm) 264 mm
C (in) 10 3/8 in
D (mm) 120 mm
D (in) 5 in
E maximum (mm) 1613 mm
E maximum (in) 63 1/2 in
E minimum (mm) 1596 mm
E minimum (in) 62 13/16 in
F maximum (mm) 1059 mm
F maximum (in) 41 11/16 in
F minimum (mm) 1042 mm
F minimum (in) 41 in
G maximum (mm) 700 mm
G maximum (in) 27 1/2 in
G minimum (mm) 680 mm
G minimum (in) 26 3/4 in
H maximum (mm) 619 mm
H maximum (in) 24 1/2 in
H minimum (mm) 602 mm
H minimum (in) 23 11/16 in
I maximum (mm) 185 mm
I maximum (in) 7 1/4 in
I minimum (mm) 168 mm
I minimum (in) 6 5/8 in
J maximum (mm) 109 mm
J maximum (in) 4 5/16 in
J minimum (mm) 92 mm
J minimum (in) 3 5/8 in
K maximum (mm) 402 mm
K maximum (in) 15 13/16 in
K minimum (mm) 232 mm
L (mm) 61 mm
K minimum (in) 9 1/8 in
L (in) 2 13/32 in
M (mm) 63 mm
M (in) 2 5/8 in
Extrusion length (m) 2.74 m
Extrusion length (ft in) 9 ft in
Luff tape size (mm) 6 mm
Luff tape size (in) #7 (7/32) in

Brand	HARKEN
SKU	7415.15M
GTIN	–
Brand	Harken
