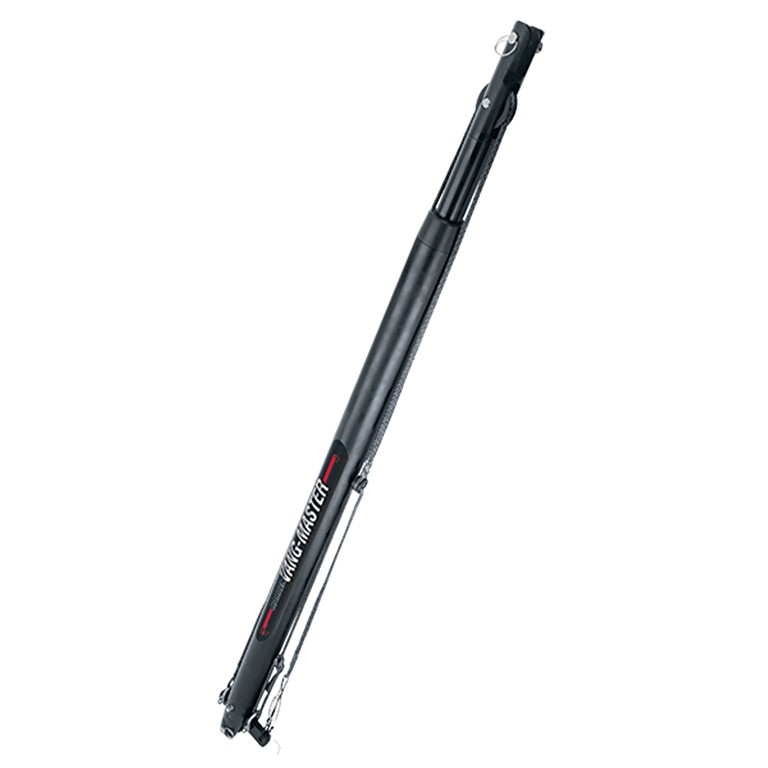

Harken Vang-Master 8

Standard Vang-Master rigid vangs are available for boats with vang fittings on the boom and mastbase. Typical boat lengths: 13.7 – 17.1 m (45′- 56′). Pin center length (closed) (mm) 1854 mm
Pin center length (closed) (in) 73 in
Pin center length open (mm) 2159 mm
Pin center length open (in) 85 in
Stroke (mm) 305 mm
Stroke (in) 12 in
Weight (kg) 6.62 kg
Weight (lb) 14.6 lb
Pin Ø (mm) 15.9 mm
Pin Ø (in) 5/8 in
Jaw width (mm) 16 mm
Jaw width (in) 5/8 in
Maximum return pressure (kg) 680 kg
Maximum return pressure (lb) 1500 lb
Boat length (m) 13.7 – 17.1 m
Boat length (ft) 45 – 56 ft

Brand	HARKEN
SKU	VM87385
GTIN	097653292524
