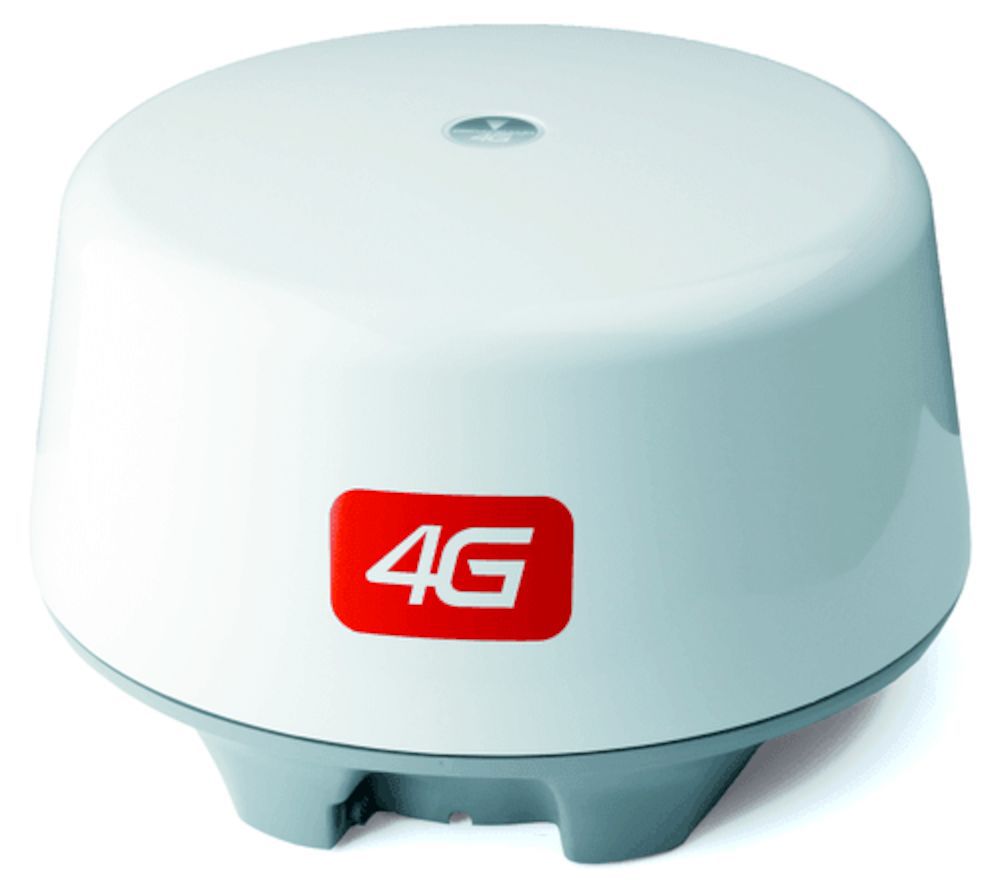

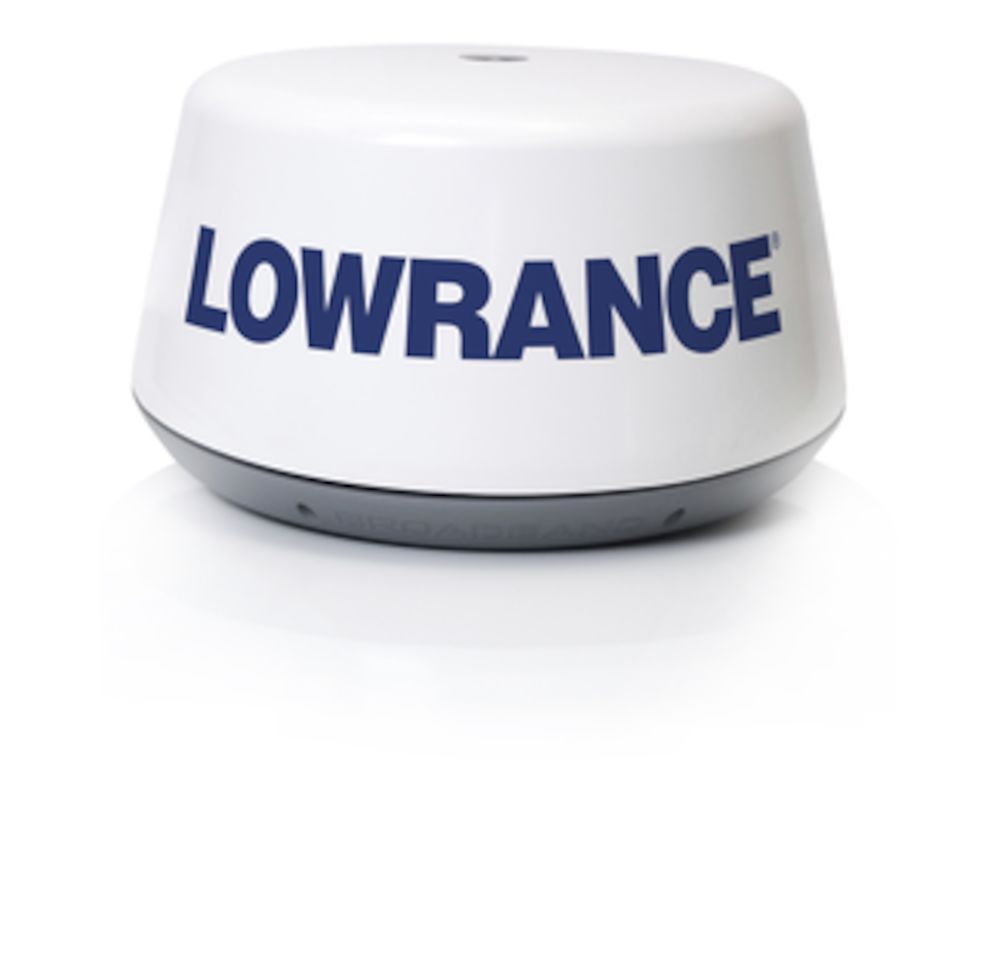

Lowrance 4G Radar

4G Broadband Radar

The new Lowrance Broadband 4G™ Radar for HDS goes more than the extra nautical mile, now with 50% more range! Featuring Frequency Modulated Continuous Wave (FMCW) technology, Lowrance Broadband Radar innovation delivers superior target detection and viewing separation, ease of operation, and higher level of navigational peace-of-mind. With zero radiation hazard, it’s the safest choice for more boats, including fishing, sports/cruising and sail boats.

-Beam Sharpening*: The worlds first and only dome radar with beam sharpening, get target separation as good as a 3.5ft. open array radar. *not user adjustable on HDS

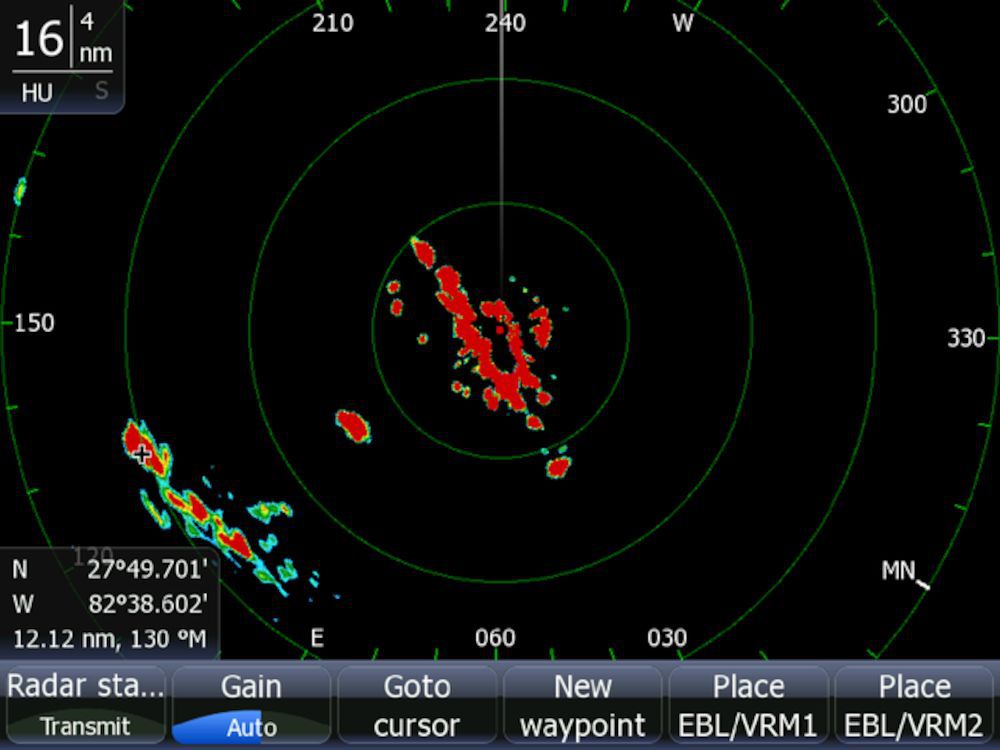

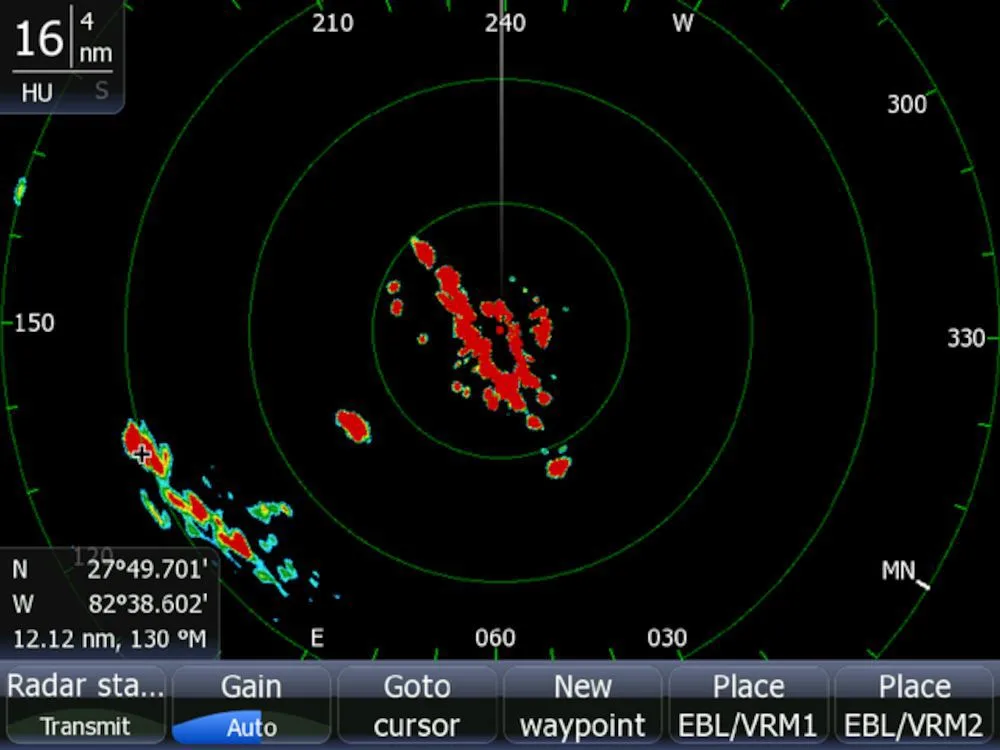

-Improved Range:See targets up to 32nm away, and large storm cells at more than 17nm away.
-Instant On™: Solid-state technology produces an immediate, accurate on-screen image, without the lengthy warm-up delay of magnetron pulse radars.
-Low Power Consumption: Ideal for boats of any size – sail, cruise or fish.

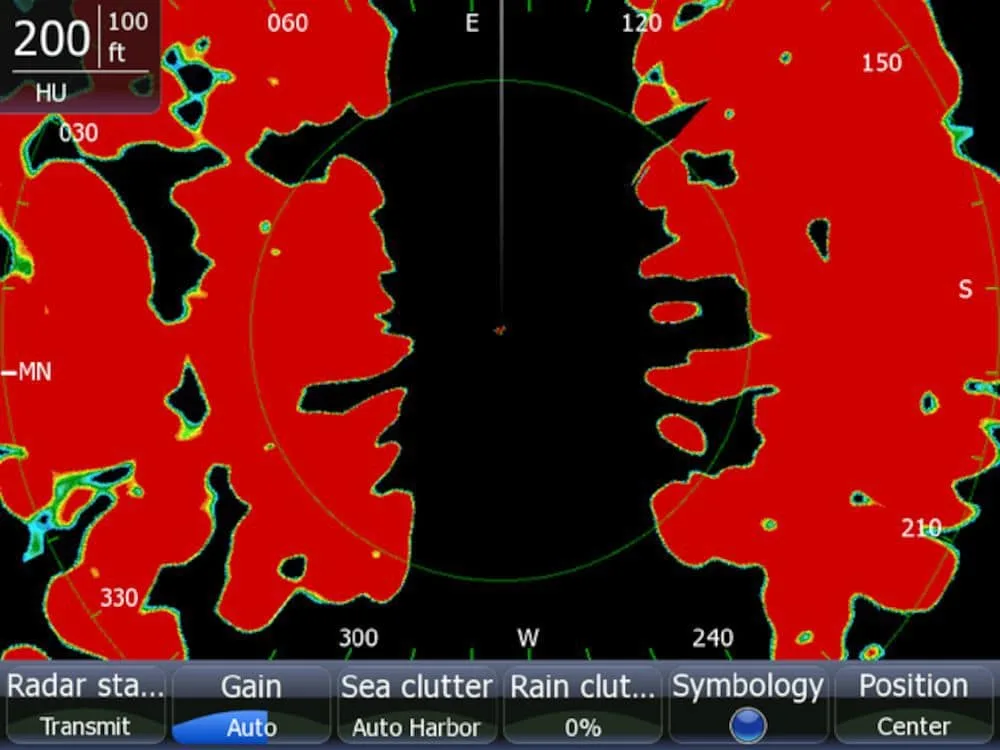

-Automatic Clarity: Proven automatic harbor/marina and offshore modes.
-MARPA Target Tracking: Track up to 10 targets. Requires a heading sensor.*

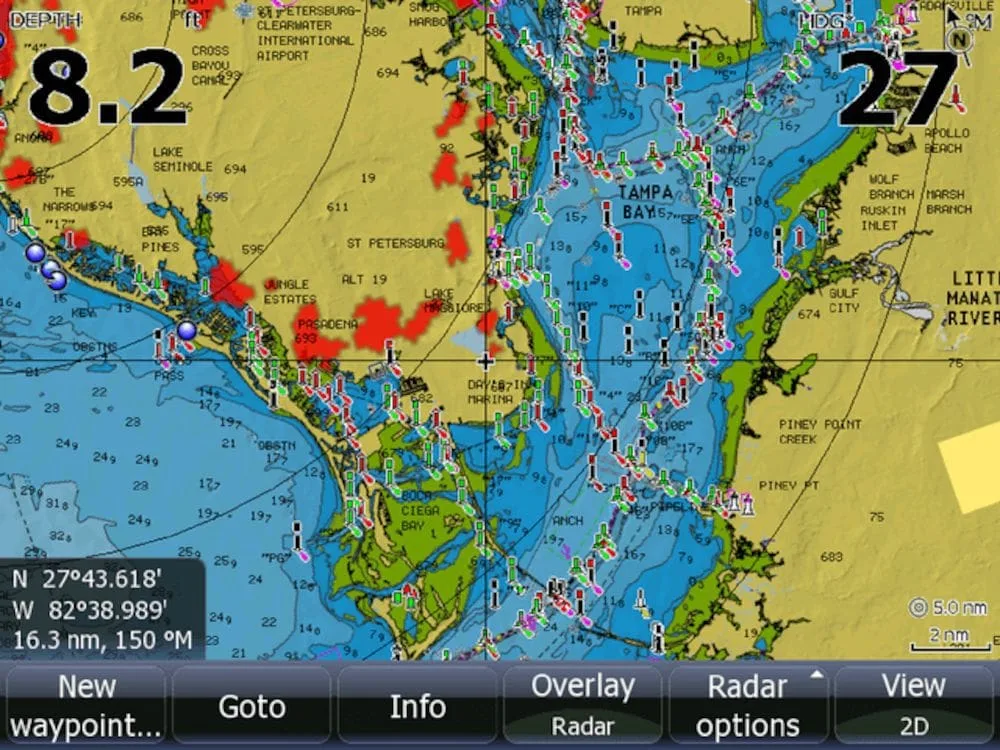

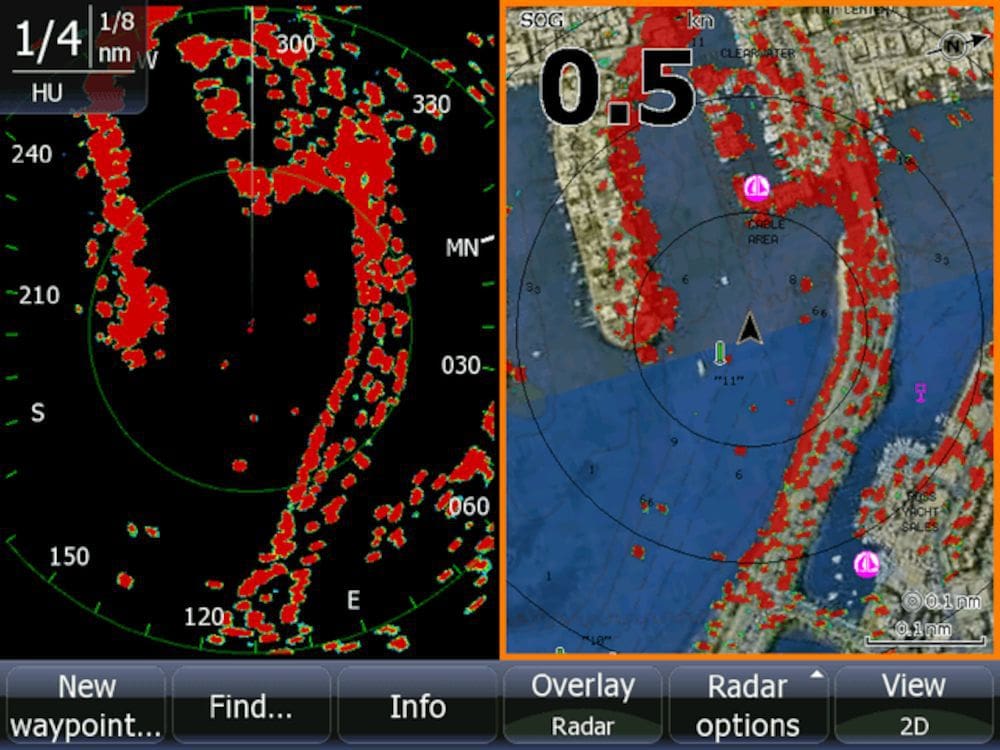

-Radar/Chart Overlay: Merges radar with cartography in a detail-rich display.*

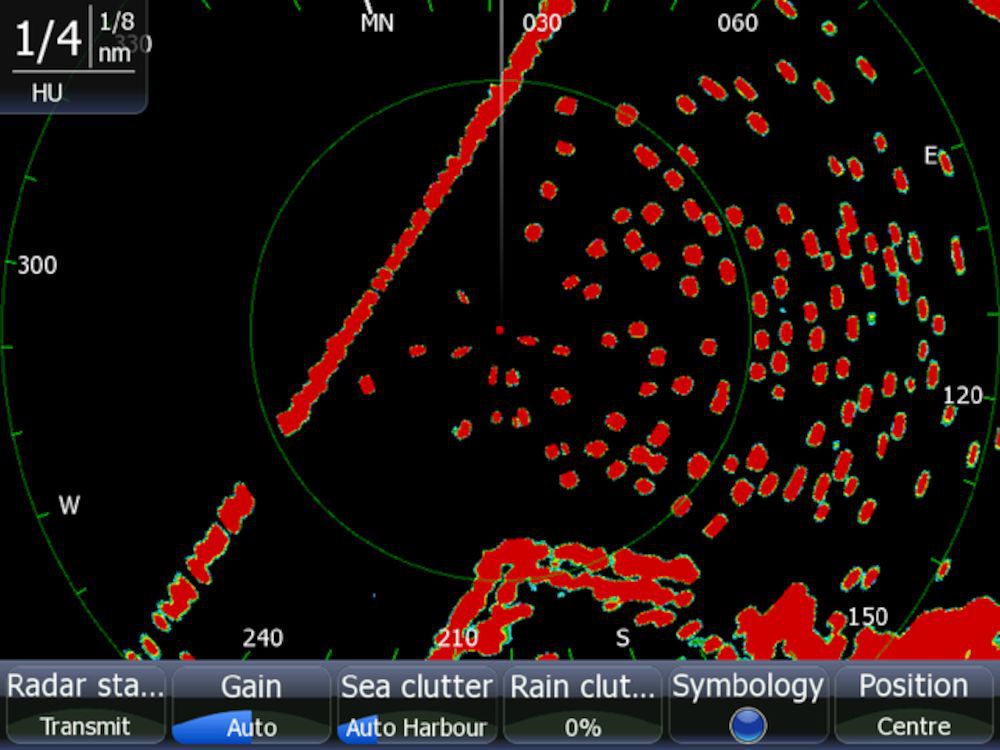

-Crystal-Clear Image: Fantastic for tight maneuvers in marinas or in conditions of limited visibility.
-Quick Installation: No reason to open the dome, no tune or zero-mile adjustment, and no radar-licensed technician required.
-Safe: Extremely Low Emissions. Safer than any other radar currently on the market and emitting less radiation than a mobile phone so it can be mounted anywhere.
-High-Speed Mode: Select 36RPM for almost instant updating at than 1nm.
-Dual Guard Zones: Protect yourself from more angles.

• Beam Sharpening: The world’s first and only dome radar with beam sharpening; get target separation as detailed as a 3.5ft. open array radar.
• Improved Range: See targets up to 32nm away, and large storm cells at more than 17nm away.
• Instant On™: Solid-state technology produces an immediate, accurate on-screen image, without the lengthy warm-up delay of magnetron pulse radars.
• Low Power Consumption: Ideal for boats of any size – sail, cruise or fish.
• Automatic Clarity: Proven automatic harbor/marina and offshore modes.
• MARPA Target Tracking: Track up to 10 targets. Requires a heading sensor.
• Radar/Chart Overlay: Merges radar with cartography in a detail-rich display. Requires heading sensor.
• Crystal-Clear Image: Fantastic for tight maneuvers in marinas or in conditions of limited visibility.
• Quick Installation: No reason to open the dome, no tune or zero-mile adjustment, and no radar-licensed technician required.
• Safe: Extremely Low Emissions. Safer than any other radar currently on the market and emitting less radiation than a mobile phone so it can be mounted anywhere.
• High-Speed Mode: Select 36RPM for almost instant updating at than 1nm.
• Dual Guard Zones: Protect yourself from more angles.

Approvals

Compliance	CE, FCC (ID: RAY3G4G), IC: 4697A-3G4G

Connectivity

Ethernet	RI-10 1 x 100 Mbit 5 pin yellow
N2K PGNs	127250 – Vessel Heading, 127251 – Rate of Turn, 129025 – Position, Rapid Update, 129026 – COG & SOG, Rapid Update, 129029 – GNSS Position Data, 130818 – Proprietary
NMEA 0183	Via AT10 HD or MFD
NMEA 2000	RI-10, 1 x NMEA 2000 SimNet, 1 LEN
PC Connectivity	Via BBPC SDK

Electrical

Power Consumption, typical	Operating: 20W (Typ.) @ 13.8Vdc (21W in dual range mode) Standby: 2.9W (Typ.) @ 13.8Vdc ~ 170mA
Supply Voltage	9V to 31.2Vdc (12/24 Volt systems)
Humidity	+35° C (95° F), 95% RH

Environment

Operating Temperature Range	Operating Temperature: -25° to +55°C (-13° to +130°F)
Waterproof rating	IPX6

MFD

Compass Safe Distance – Metric, imperial	0.7 m (2.3 ft) Min
Dimensions (Diameter x H)	489 mm (19.3”)

Physical

Dimensions (W x H x D)	489 mm x 280 mm (19.3″ x 11”)
Mounting Type	Bolts 4 x M8x30 – 304 stainless steel
Weight	7.4 kg (16.31 lbs)

Radar

Beam width	5.2° +/- 10% (-3dB width)
Max Range, scale	36 nm
Max Operating Wind Speed	100 knots
Min Range, scale	50 m (200 ft)
Radar Modes	Head Up, North Up
Radar Technology	Frequency Modulated Continuous Wave (FMCW)
Rotation speed	24/36/48 rpm +/-10% (mode and MFD dependent)
SART/RACON Trigger	No

Other

Warranty Period	2 years
Languages	See Radar Controller

Weight	15 kg
Dimensions	36 × 56 × 63 cm
Brand	Lowrance
Family	Radar – Broadband
Model	4G
Class Type	Radar
Component	Sensor/Transducer/Scanner/Antenna
Item Type	KIT
