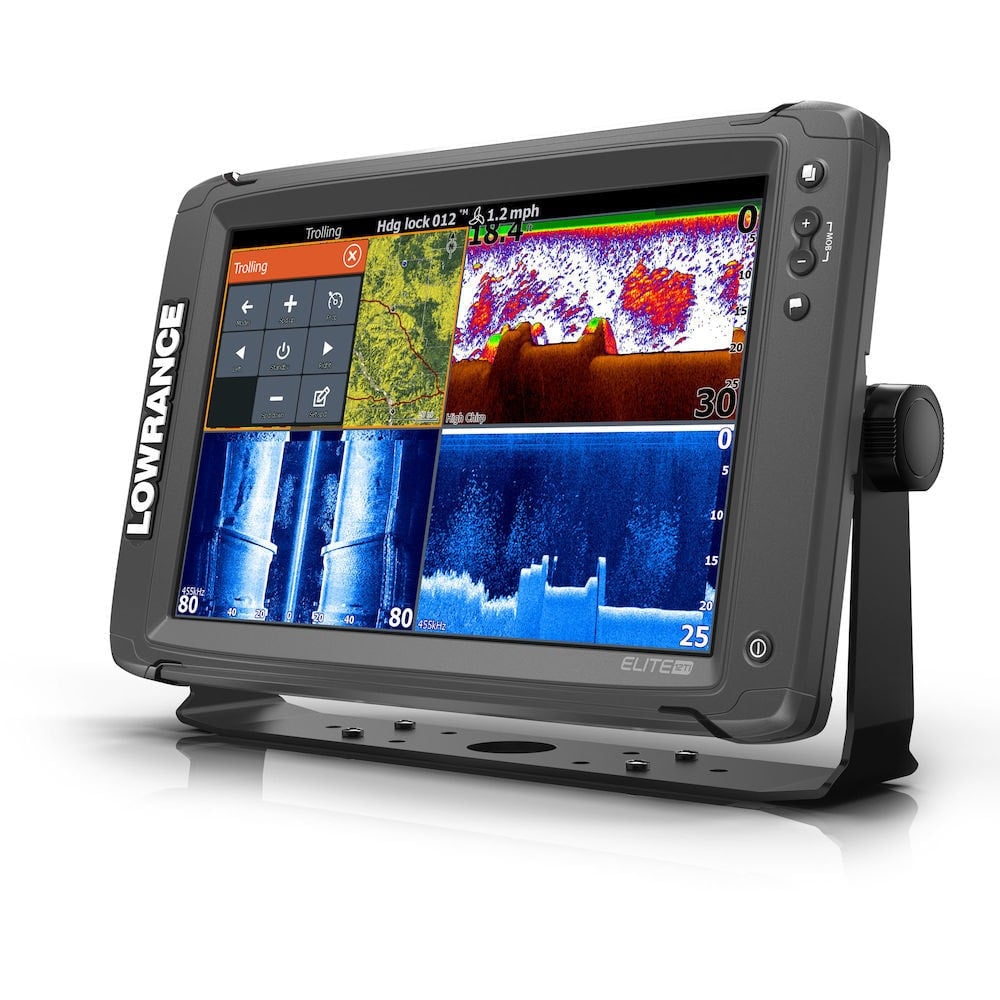

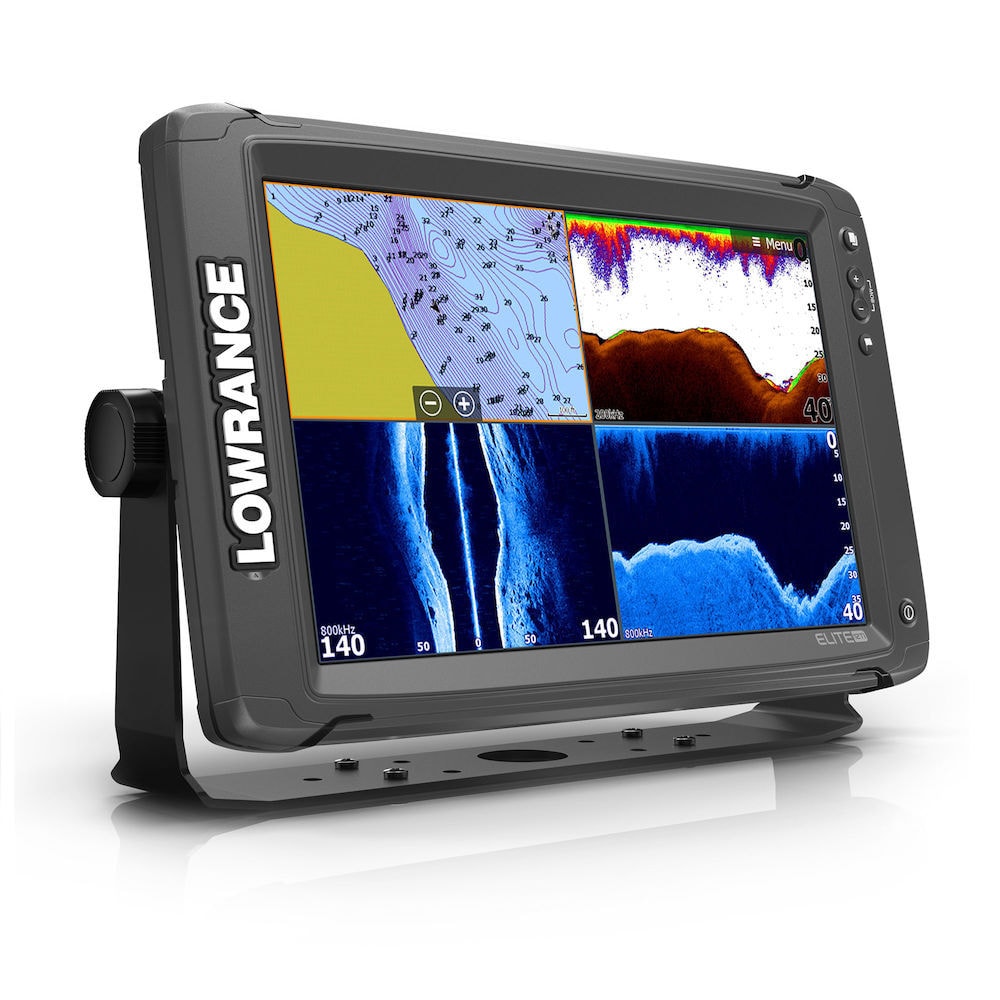

Lowrance Elite-12 Ti with TotalScan™ Transducer and South Europe Card

Elite-12 Ti Fishfinder/Chartplotter with TotalScan™ Transducer

12-inch Fishfinder/Chartplotter with high-bright, LED-backlit display with CHIRP, DownScan™ and StructureScan™ technology, built-in

Key Points

-Single-touch 12″ Widescreen
-Built-in CHIRP/Broadband Sounder
-Built-in StructureScan™ (with TotalScan™ transducer)
-Built-in 10Hz GPS/GLONASS antenna
-Built-in Wireless connectivity
-Built-in Bluetooth connectivity
-Xi5 Trolling Motor control via Lowrance SmartSteer™
-Best-in class screen brightness
-Single micro SD card slot
-NMEA 2000® connectivity
-Wide selection of cartography options
-Uses Gimbal Bracket

Selling Points

-Lowrance SmartSteer™ Technology for Xi5 Trolling Motor control
-Stand alone Fishfinder/Chartplotter
-Built in Detailed Basemap cartography (Americas models) and Navionics Basemap (Americas and ROW)
-Add on cartography available from Insight HD™, Navionics, C-MAP and other 3rd Party Toolkit Partners
-Share waypoint data via NMEA 2000® with other displays
-Fully customizable split-screen options
-StructureMap included with built-in StructureScan (requires optional TotalScan™ transducer)

• High resolution display – Lowrance-exclusive, high-resolution, 12-inch, LED-backlit color display.

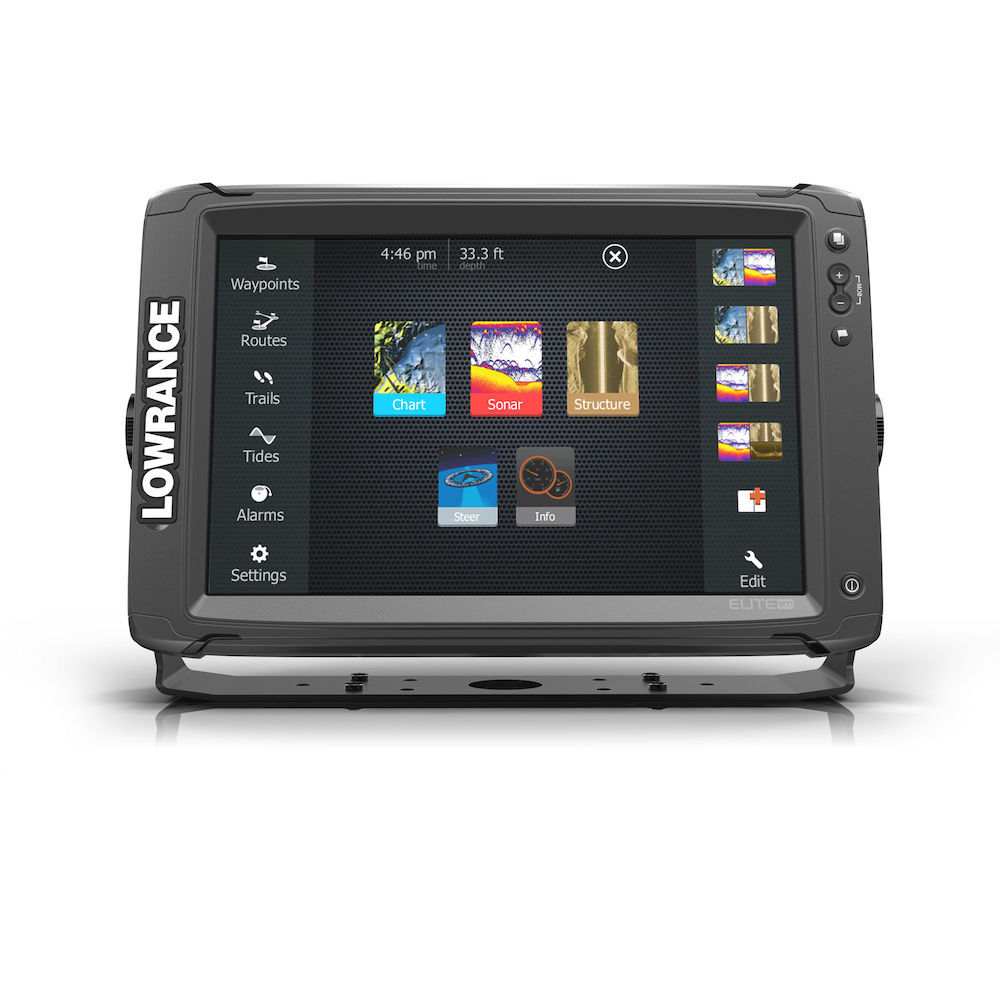

• Easy-to-use touchscreen – Touchscreen provides fast, fingertip access to all Elite-12 Ti features.
• CHIRP Sonar, StructureScan® HD and DownScan Imaging™ – Top-of-the line sonar technologies provide the best possible view of the environment beneath your boat. StructureScan® HD requires optional TotalScan™ transducer.
• TrackBack™ – Scroll back through your sonar, SideScan or DownScan history to review structure or fish targets and mark the location with a waypoint.
• Internal GPS antenna – Highly accurate, built-in GPS antenna plus a detailed map.
• Optional chart upgrades – Optional Americas chart upgrades include Insight PRO by C-MAP, Lake Insight HD by C-MAP, C-MAP MAX-N, Navionics® HotMaps® Premium, Navionics + and Fishing Hotspots® PRO.
• Built-in wireless connectivity – Access to the GoFree™ Cloud where you can shop, purchase, download and immediately use Insight maps, and third-party maps from GoFree partners.
• Boat Integration and System Control – Bluetooth® control of Power-Pole® shallow water anchors and SmartSteer™ control of Motorguide® Xi5 Trolling Motors.
• MicroSD card slot.

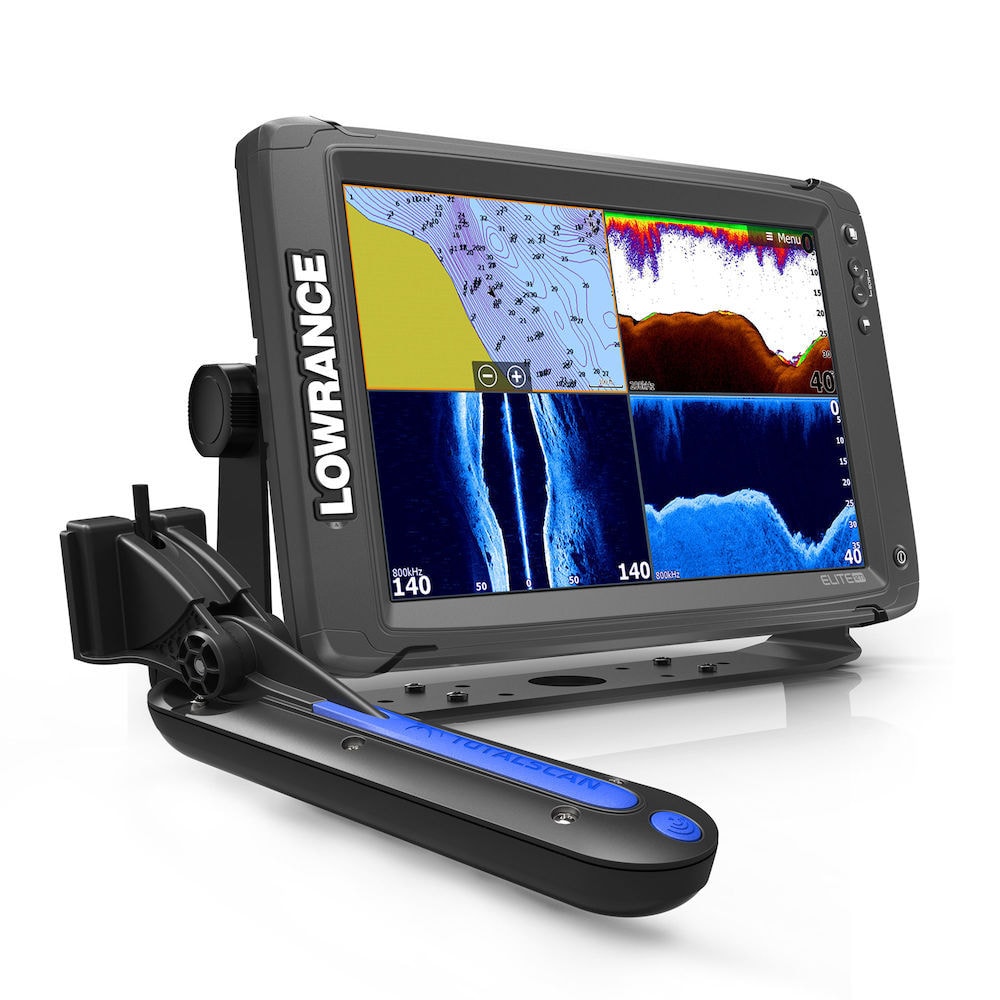

• TotalScan Transducer.
• Southern European C-MAP Mapping Card.

Approvals

Compliance	FCC, Industry Canada, Radio Equipment Directive, ACMA, RSM

Connectivity

NMEA 0183 Sentences supported	TX / RX – GPSReceive GGA GLL GSA GSV VTG ZDATransmit GGA GLL GSA GSV VTG ZDA GLCTX / RX – NavigationReceive RMCTransmit AAM APB BOD BWC BWR RMC RMB XTE XDRTX / RX – SonarReceive DBT DPT MTW VLW VHMTransmit DBT DPT MTW VLW VHMTX / RX – CompassReceive HDG HDT HDMTransmit HDGTX / RX – WindReceive MWV MWDTransmit MWV MWDTX / RX – AIS / DSC*Receive DSC DSE VDM*AIS sentences are not bridged to or from NMEA 2000.
Bluetooth	Integrated
Ethernet	None
N2K PGNs	Receive only65240 ISO Commanded Address, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127505 Fluid Level, 127508 Battery Status, 129033 Time and Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Address Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 130313 Humidity, 130314 Actual Pressure, 130576 Small Craft Status, 65285 Temperature with Instance, 65325 Reprogramming Status, 65480 Parameter Reply, 130817 Product Information, 130820 Reprogramming Status, 130832 Fuel Used – High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130842 AIS and VHF Message Transport, 130843 Sonar Status – Frequency and DSP VoltageTransmit and Receive:59392 ISO Acknowledgement, 59904 ISO Request, 60160 ISO Transport Protocol, Data Transfer, 60416 ISO Transport Protocol, Connection Management, 60928 ISO Address Claim, 126208 NMEA Group Function, 126464 Receive/Transmit PGN’s group function, 126992 System Time, 126996 Product Information, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, 128267 Water Depth, 128275 Distance Log, 129025 Position, Rapid Update, 120296 COG and SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats In View, 130074 Route and WP Service – WP List – WP Name and Position, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 61184 Parameter Command, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 65323 Data User Group Request, 130831 EP-20 Suzuki Engine and EP-50 Storage Device Configuration, 130835 Set Engine and Tank Configuration, 130839 EP-45 Pressure Configuration, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130851 Event ReplyTransmit only65287 Temperature Sensor Configuration, 65289 Trim Tab Configuration, 65290 Paddle Wheel Speed Configuration, 130818 Reprogramming Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Configuration, 130837 Fuel Flow Turbine Configuration
NMEA 0183	Optional (with 000-0127-49 accessory)
NMEA 2000	1x Micro-C
PC Connectivity	None
Video	None
WiFi	Integrated

Display

Backlight Color	Pure White LED
Resolution	1280 x 800
Screen Brightness	1200 nits
Size and Type	12.10″ (305mm) WVGA color TFT LCD
Viewing Angles	80° top/bottom, 85° left/right

Electrical

Power Consumption, max.	1.8A @ 13VDC with Backlight Full/Sonar Lock
Power Consumption, min.	1.8A @ 13VDC with Backlight Full/Sonar Lock
Power Consumption, typical	1.8A @ 13VDC with Backlight Full/Sonar Lock
Recommended Fuse Rating	3A
Supply Voltage	12v DC (10.8-17VDC)
Humidity	60°C, 95% relative humidity (RH) for 18 hours

Environment

Operating Temperature Range	5°F to 131°F (-15°C to 55°C )
Shock and Vibration	100,000 cycles of 20 G
Storage Temperature Range	-40°F to 185°F (-40°C to 85°C )
Waterproof rating	IPX7 with card door closed

GPS

Correction	DGPS, WAAS
GPS Receiver Channels	16
Position Accuracy	20m RMS
Time to First Fix	30s
Update rate	10 Hz

MFD

AIS	AIS Chart overlay. Target vessel details.
Autopilot	MotorGuide Xi5 Trolling Motor *requires Motorguide PinPoint Gateway
Cartography included	Enhanced Elite basemap, with over 3,000 enhanced lake maps with depth contour and shoreline detail, plus coastal depth contours/shoreline detail and spot depth soundings to 1,000 ft./305 m
Cartography supported	Lake Insight™ and Nautic Insight™ PRO and HD, Navionics® Gold and HotMaps® Premium, Fishing Hotspots® PRO and Jeppessen C-Map Max-N Wide.
Digital Switching	None
External Storage	1 micro SD card up to 32GB
GPS	10 Hz Internal high-sensitivity WAAS + EGNOS + MSAS
Internal Storage	None
Multimedia	SonicHub, SonicHub2, FusionLink products.
Radar (inc. compatibility)	None
Sonar (inc. compatibility)	Integrated: CHIRP, Broadband, DownScan & StructureScan (Cannot do Simultaneous CHIRP & StructureScan)
Weather	None
Waypoints, Routes, Tracks	3000 Waypoints, 100 Routes and 100 Trails with up to 10,000 points per trail
Compass Safe Distance – Metric, imperial	12″ (300mm)

Physical

Mounting Type	Gimbal Bracket or Dash Flush Mount
Weight	6.5lb (2.95kg)

Other

Warranty Period	5 Years Total1 Year Full Warranty Replace4 Years InService Upgrade
Interface	Touchscreen and Zoom +/-, MOB, Pages, Waypoint,Light/Power
Languages	Standard Language Pack: Afrikaans/Afrikaans, Danish/Dansk, German/Deutsch, English (US), English (UK), Spanish/Español, Finnish/Suomi, French/Français, Greek/Ελληνικά, Icelandic/íslenska, Italian/Italiano, Dutch/Nederlands, Norwegian/Norsk, Portugese (Brazil)/Português (BR), Portugese (Portugal)/Português (PT), Swedish/SvenskaAsian Language Pack: English (US), English (UK), Japanese/日本語, Korean/한국어, Thai/ภาษาไทย, Chinese – (simplified) China/简体中文, Chinese – (traditional) Taiwan/繁體中文Eastern European Language Pack:Bulgarian/Български, German/Deutsch, Estonian/Eesti, English (US), English (UK), Spanish/Español, French/Français, Hebrew/ عبری , Croatian/ Hrvatski, Hungarian/ Magyar, Italian/Italiano, Lithuanian/Lietuvos, Latvian/ Latvijas, Polish/Polski, Slovak/ Slovensky, Turkish/TürkçeRussia/Ukraine Language pack: German/Deutsch, English (US), English (UK), Spanish/Español, Italian/Italiano, Russian/Русский, Ukraine/ УкраїнськаMiddle Eastern Language Pack: Arabic (UAE)/ العربية , German/Deutsch, English (US), English (UK), Farsi/ فارسی , French/Français, Italian/Italiano

Weight	6,35 kg
Dimensions	30 × 39,3 × 25,4 cm
Brand	Lowrance
Family	Elite Ti
Model	Elite-12Ti
Class Type	Fishfinder/Chart
Component	Head/Display
Item Type	KIT
