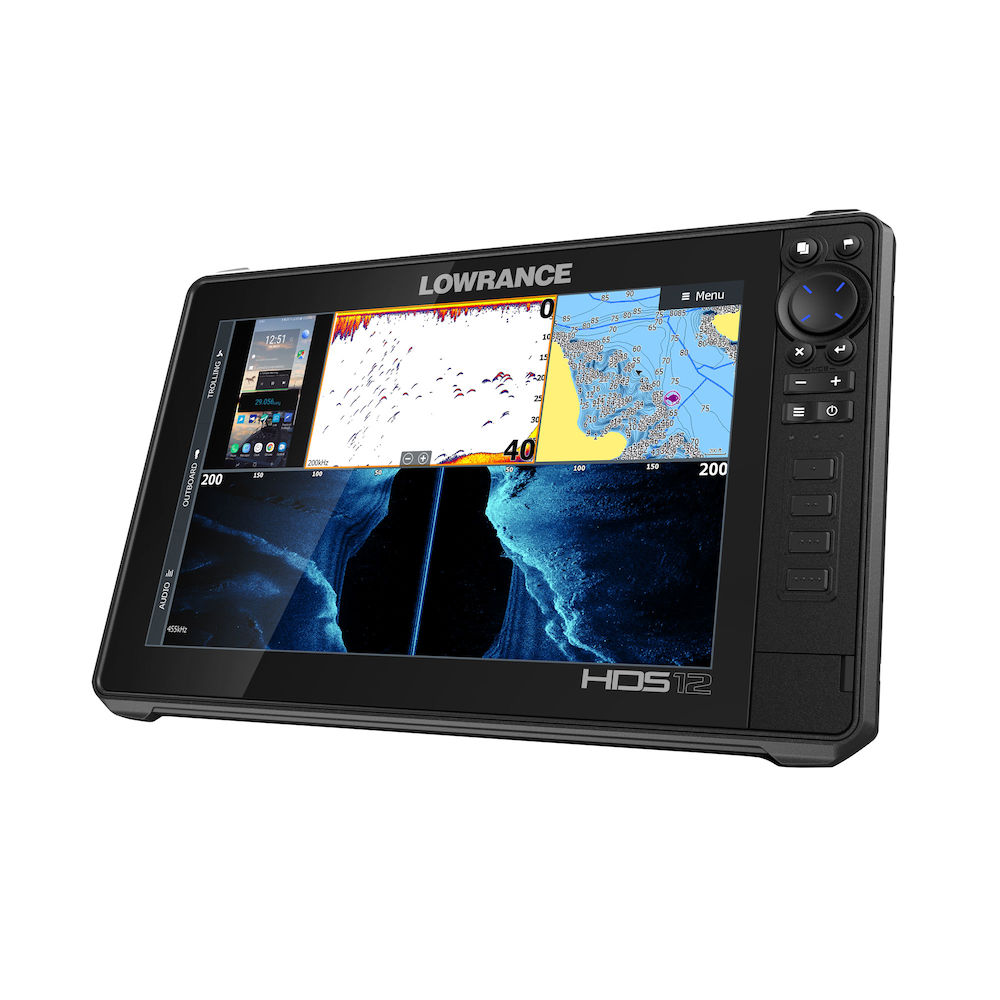

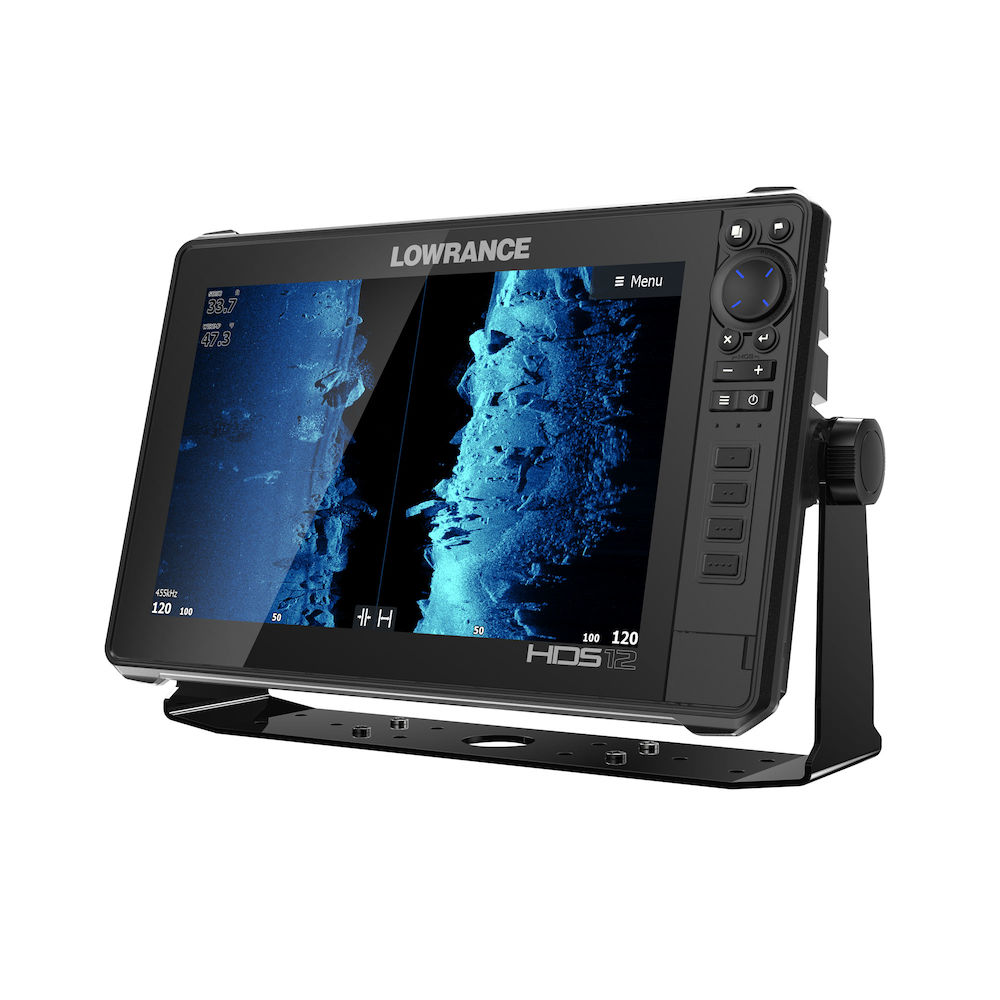

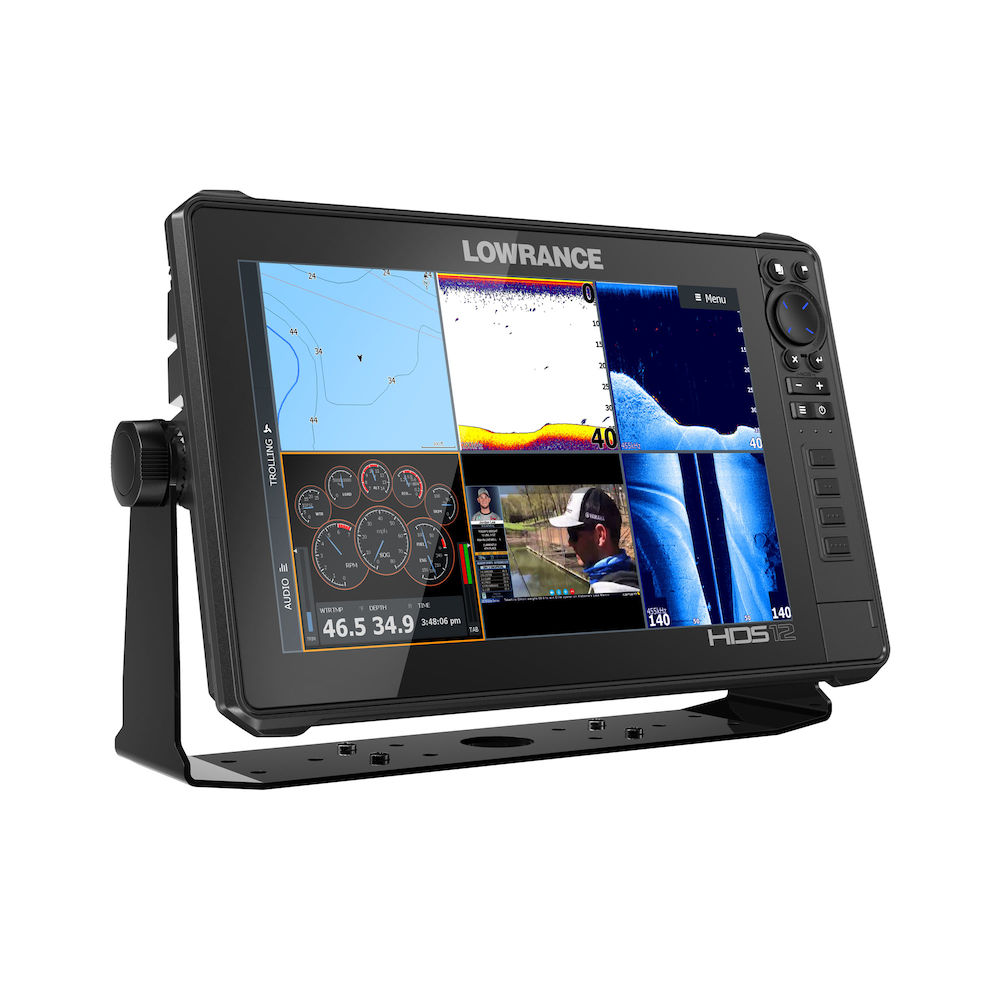

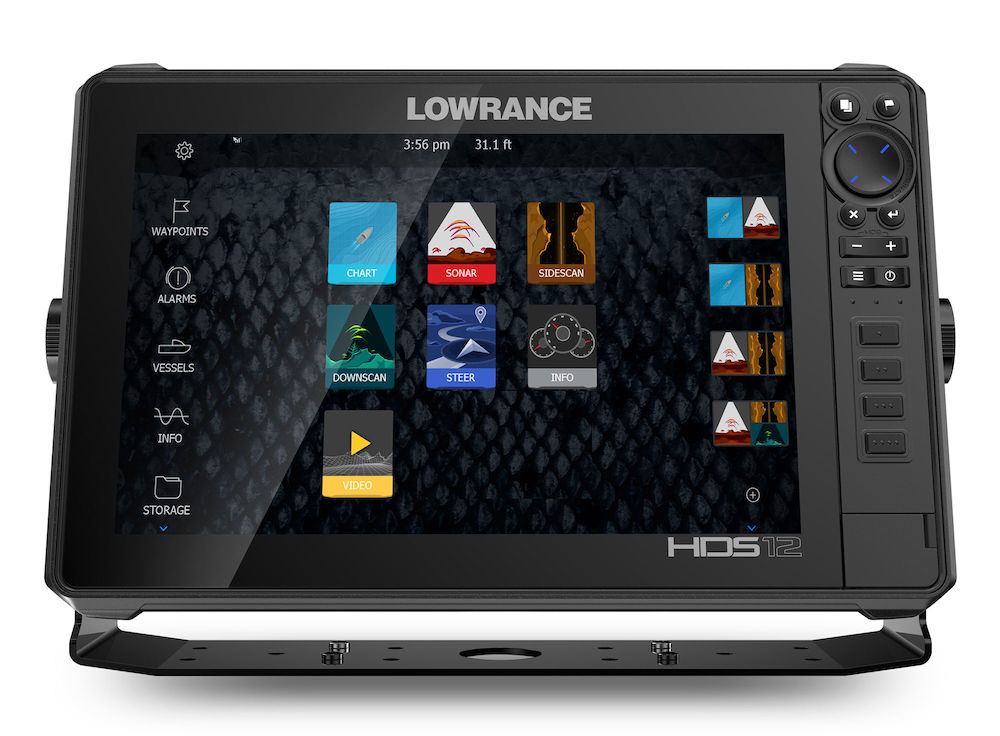

Lowrance HDS-12 Live with Active Imaging 3-1 Transducer

Year after year, more fishing tour pros use HDS than all other fishfinder brands combined. HDS LIVE 12 will undoubtedly carry on that tradition behind premium performance and support for the best collection of innovative sonar features available – from new Active Imaging™ and StructureScan® 3D with Active Imaging to FishReveal™ and LiveSight™ real-time sonar – you will experience a new level of fishfinding performance with HDS LIVE 12.

Navigating to your favorite fishing spot or finding a new one has never been easier, behind the best suite of navigation features ever built into an HDS display — including preloaded high-detail US, Australia, New Zealand or worldwide basemap, C-MAP® Easy Routing, Navionics® Autorouting* capability and C-MAP Genesis Live mapping.

HDS LIVE 12 simplifies your time on the water with onscreen text messages and call notifications, as well as support for LiveCast™ smartphone integration, which allows you to display video, Google Maps and fishing data on your fishfinder display.

Featuring a high-resolution SolarMAX™ HD screen, HDS LIVE 12 provides industry-leading images that are always easy to see – from any angle, in direct sunlight or even through polarized sunglasses.

HDS LIVE delivers powerful fishfinding sonar with a high-performance quad-core processor that produces the smoothest, lag-free operation, the most responsive touchscreen performance, and the fastest chart redraws and sonar updates.

*Navionics subscription required. See Navionics.com for more details

• Active Imaging™ 3-in-1 (CHIRP/Side/Down) sonar ready*
• Active Imaging™ 2-in-1 (Side/Down) sonar ready*
• StructureScan® 3D compatible*
• LiveSight™ real-time sonar compatible*
• Smartphone notifications
• LiveCast™ smartphone integration
• High-performance quad-core processor
• C-MAP Genesis Live onscreen mapping
• FishReveal™ Smart Target View
• High-resolution 12-inch SolarMAX™ HD multi-touch screen with the widest range of viewing angles – viewable even through polarized sunglasses
• Preloaded high-detail US, Australia, New Zealand or worldwide basemap
• C-MAP Easy Routing, Navionics® Autorouting capability
• Dual-Channel CHIRP – dual sonar-range coverage from the same transducer
• Live Network Sonar – cover more water and mark fish targets more clearly from a network of CHIRP sonar transducers
• SiriusXM® Marine Weather and Audio compatible
• Wireless and Bluetooth® connectivity
• Heat Map feature allows anglers to see trends in water temperature changes to quickly target key fishing areas
• Enhanced Surface Clarity lets you see more fish targets near the surface
• Quick Access Control Bar provides one–touch access to system controls
• Touchscreen control of MotorGuide® Xi5 Trolling Motor, Power-Pole® Anchors and Lowrance Outboard Pilot
• Radar and SonicHub®2 audio server connectivity
• NMEA 2000® engine support
• Optional mapping upgrades include C-MAP, Navionics® and more

Approvals

Compliance	FCC, Industry Canada, Radio Equipment Directive, ACMA, RSM

Autopilot

Manouevres / Turn Patterns	CourseHeadingWaypointPower SteerU-TurnC-TurnSpiralZigzagSquareLazy-S
Steering Modes	CourseHeadingWaypointPower Steer

Connectivity

NMEA 0183 Sentences supported	TX / RX – GPSReceive GGA GLL GSA GSV VTG ZDATransmit GGA GLL GSA GSV VTG ZDA GLCTX / RX – NavigationReceive RMCTransmit AAM APB BOD BWC BWR RMC RMB XTE XDRTX / RX – SonarReceive DBT DPT MTW VLW VHMTransmit DBT DPT MTW VLW VHMTX / RX – CompassReceive HDG HDT HDMTransmit HDGTX / RX – WindReceive MWV MWDTransmit MWV MWDTX / RX – AIS / DSC*Receive DSC DSE VDM*AIS sentences are not bridged to or from NMEA 2000.
Bluetooth	Integrated Bluetooth 4.0 with support for Bluetooth Classic
Ethernet	2 x 100 Mbit, 6 max MFD’s on a network
N2K PGNs	Receive only65240 ISO Commanded Address, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127505 Fluid Level, 127508 Battery Status, 129033 Time and Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Address Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 130313 Humidity, 130314 Actual Pressure, 130576 Small Craft Status, 65285 Temperature with Instance, 65325 Reprogramming Status, 65480 Parameter Reply, 130817 Product Information, 130820 Reprogramming Status, 130832 Fuel Used – High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130842 AIS and VHF Message Transport, 130843 Sonar Status – Frequency and DSP VoltageTransmit and Receive:59392 ISO Acknowledgement, 59904 ISO Request, 60160 ISO Transport Protocol, Data Transfer, 60416 ISO Transport Protocol, Connection Management, 60928 ISO Address Claim, 126208 NMEA Group Function, 126464 Receive/Transmit PGN’s group function, 126992 System Time, 126996 Product Information, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, 128267 Water Depth, 128275 Distance Log, 129025 Position, Rapid Update, 120296 COG and SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats In View, 130074 Route and WP Service – WP List – WP Name and Position, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 61184 Parameter Command, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 65323 Data User Group Request, 130831 EP-20 Suzuki Engine and EP-50 Storage Device Configuration, 130835 Set Engine and Tank Configuration, 130839 EP-45 Pressure Configuration, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130851 Event ReplyTransmit only65287 Temperature Sensor Configuration, 65289 Trim Tab Configuration, 65290 Paddle Wheel Speed Configuration, 130818 Reprogramming Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Configuration, 130837 Fuel Flow Turbine Configuration
NMEA 0183	1x RS422 port Baud rates: 1200, 2400, 4800 (Default), 9600, 19200, 38400, 57600, 115200
NMEA 2000	1x Micro-C
PC Connectivity	None
Video	Output:NoInput:HDMIComposite video RCA – singlechannel via optional adaptor
WiFi	Internal 802.11b/g/n and Compatible with WiFi-1 Module

Display

Backlight Color	Pure White LED
Resolution	1280 x 800
Screen Brightness	>1200 Nits
Size and Type	12.1″ (307mm)SolarMAX HD (TM) IPStechnologyMulti-touch, P-CAP
Viewing Angles	80° top/bottom, 80° left/right

Electrical

Power Consumption, max.	3.6A @ 13VDC with Full Backlight, Sonar on
Power Consumption, min.	2.3A @ 13VDC with Full Backlight, Sonar on
Power Consumption, typical	2.3A @ 13VDC withwith Full Backlight, Sonar on
Recommended Fuse Rating	5A
Supply Voltage	12 v DC (10.8-17VDC)
Humidity	60°C, 95% relative humidity (RH) for 18 hours

Environment

Operating Temperature Range	5°F to 131°F (-15°C to 55°C )
Shock and Vibration	100,000 cycles of 20 G
Storage Temperature Range	4°F to 140°F (-20°C to 60°C )
Waterproof rating	IPX7 with card door closed

GPS

Correction	DGPS, WAAS
GPS Receiver Channels	16
Position Accuracy	20m RMS
Time to First Fix	30s
Update rate	10 Hz

MFD

AIS	AIS Chart and Radar overlay. Target vessel details.
Autopilot	Outboard PilotMotorGuide Xi5/Xi3 Trolling Motor **requires Motorguide PinPoint Gateway
Cartography included	C-MAP World Background (ROW models)Navionics basemap (AMER and ROW models)
Cartography supported	C-MAP (MAX N, MAX N+)C-MAP GenesisC-MAP Precision Contour HD (AMER ONLY)Navionics (Gold, NAV+ Platinum+)Insight (Pro and HD)Lowrance Regional Mapping Partners
Digital Switching	CzoneNaviop
External Storage	2 micro SD cards up to 32GB
GPS	10 Hz GPS/GLONASS WAAS/EGNOS/MSAS
Internal Storage	8.0 GB Internal
Multimedia	SonicHubSonicHub2FusionLink productsany NMEA 2000 compliant Marine Aduio products
Radar (inc. compatibility)	4G (Broadband)3G (Broadband)Halo24 (Pulse Compression Dome Radar)Halo 3’/4’/6′ (Open Array Pulse Compression Radar)
Sonar (inc. compatibility)	Integrated: CHIRPBroadbandActive Imaging DownScanActive Imaging SideScanCompatible with: SonarHubStructureScanStructureScan3D
Weather	SiriusXM via WM-3 (USA only)
Waypoints, Routes, Tracks	3000 Waypoints100 Routes100 Trails with up to 10,000 points per trail
Compass Safe Distance – Metric, imperial	12″ (300mm)

Physical

Dimensions (W x H x D)	13.68in (347.5mm) x 9.00in (228.5mm) x 3.26in (82.9mm)
Mounting Type	Gimbal BracketFront Dash Flush MountRear Dash Flush Mount
Weight	6.5lb (2.95kg)

Other

Warranty Period	2 Year + 3 additional years ofupgrade optionsTotaling 5 years
Interface	Touchscreen:Full Multi-touch touchscreenKeypad:8-way directional keypadZoom +/-ExitEnterMenuWaypointPower/Light4 – User Programmable Quick Access Keys
Languages	Language on products will vary depending on where you purchase the unit. However, all units since 2017 come with basic languages including English, French, German, Spanish, Finnish, Italian, Dutch, Norwegian, Portuguese, Swedish & Chinese. Additional language packs are also available, for these please contact your local distributors, retailers or dealer, where you purchased your unit from. Standard Language Pack: Afrikaans/Afrikaans, Danish/Dansk, German/Deutsch, English (US), English (UK), Spanish/Español, Finnish/Suomi, French/Français, Greek/Ελληνικά, Icelandic/íslenska, Italian/Italiano, Dutch/Nederlands, Norwegian/Norsk, Portugese (Brazil)/Português (BR), Portugese (Portugal)/Português (PT), Swedish/Svenska. Asian Language Pack: English (US), English (UK), Japanese/日本語, Korean/한국어, Thai/ภาษาไทย, Chinese – (simplified) China/简体中文, Chinese – (traditional) Taiwan/繁體中文 . Eastern European Language Pack: Bulgarian/Български, German/Deutsch, Estonian/Eesti, English (US), English (UK), Spanish/Español, French/Français, Hebrew/ عبری , Croatian/ Hrvatski, Hungarian/ Magyar, Italian/Italiano, Lithuanian/Lietuvos, Latvian/ Latvijas, Polish/Polski, Slovak/ Slovensky, Turkish/Türkçe. Russia/Ukraine Language pack: German/Deutsch, English (US), English (UK), Spanish/Español, Italian/Italiano, Russian/Русский, Ukraine/ Українська. Middle Eastern Language Pack: Arabic (UAE)/ العربية , German/Deutsch, English (US), English (UK), Farsi/ فارسی , French/Français, Italian/Italiano

Weight	7,11 kg
Dimensions	30 × 39,3 × 7,11 cm
SKU	000-14431-001
Brand	Lowrance
Class Type	MFD
GTIN	9420024171981
Component	Head/Display
Family	Lowrance HDS LIVE
Item Type	Main Product
Model	Lowrance HDS-12
