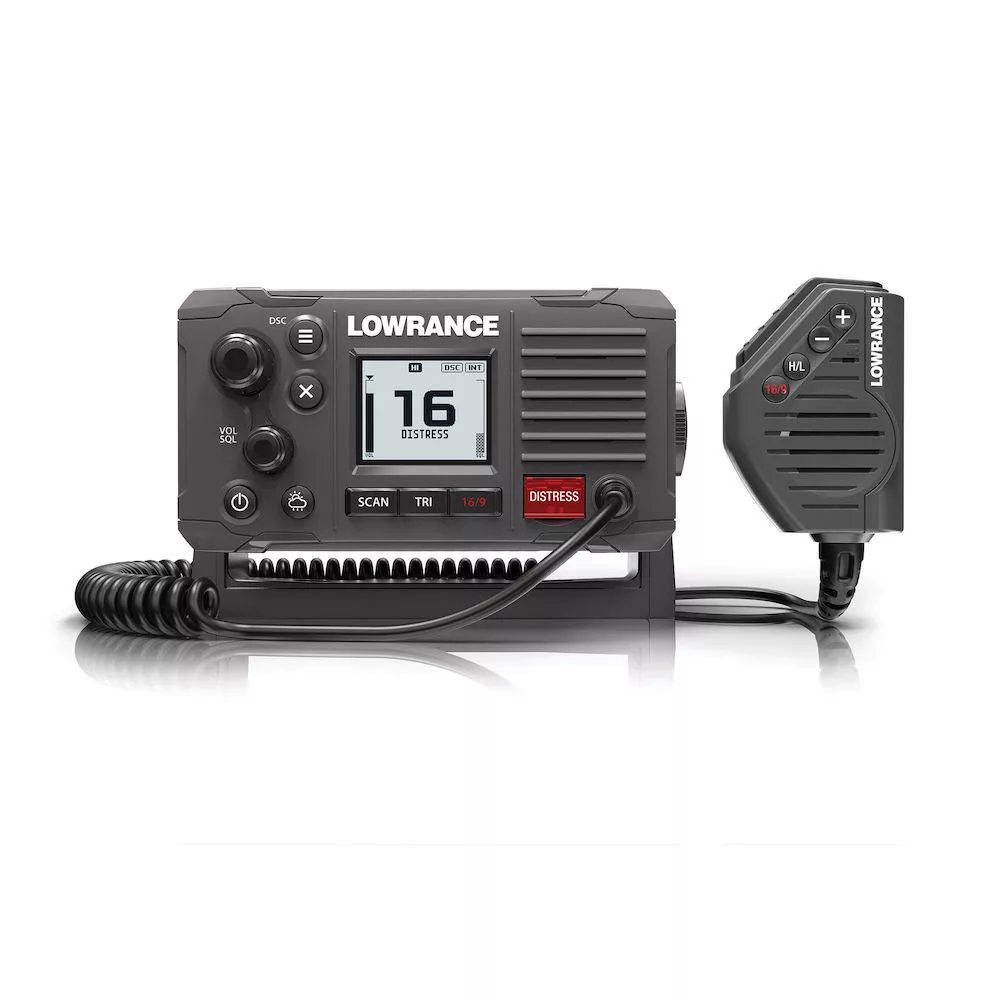

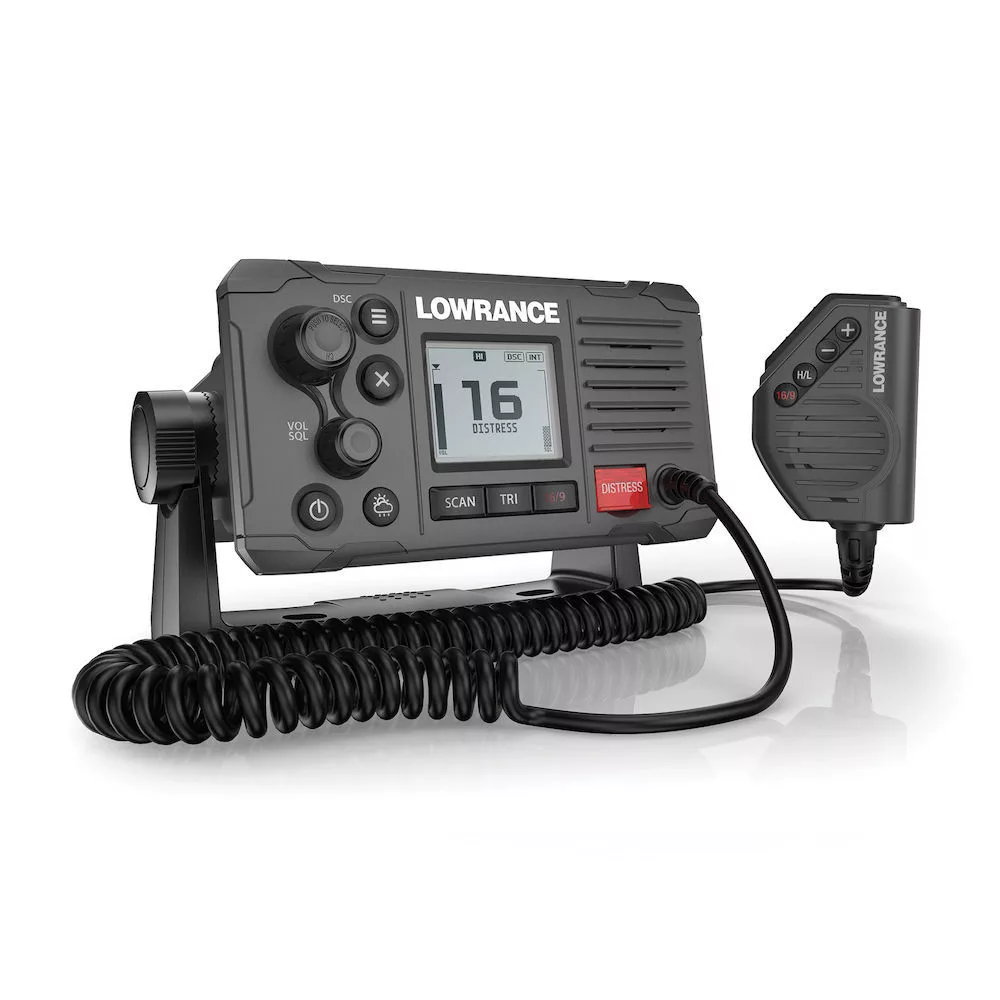

Lowrance Link-6 Marine DSC VHF Radio

Communicate clearly with this dependable Class D DSC Approved marine VHF radio featuring a four-button fist microphone, intuitive rotary and keypad controls and a new front-mountable mechanical design for easy installation.

• High visibility LCD with inverted night mode.
• Intuitive rotary and keypad controls.
• Four-button fist microphone.
• Class D DSC Approved.
• Dedicated Channel 16 keys.
• Tri-channel watch function.
• All international channels.
• Multiple scan modes.
• Easy bracket or flush-mount installation.

Communications

Channels	US/CAN/INT
DSC Class	Class D
Frequency Range	TX:156.025～157.425 MHz RX:156.050～163.275 MHz
Hailer Function	No
Handset type	Fistmic
Horn Function	No
Intercom	No
Multiple Stations	No
Transmit Power	Hi23W ± 2W :Lo 0.8W ± 0.2W

Connectivity

NMEA 0183 Sentences supported	DSE,DSC
NMEA 0183	1 TX 1RX

Display

Backlight Color	White

Electrical

Power Consumption, max.	Hi ≤6A: Lo ≤1.5A
Power Consumption, typical	≤0.5 A
Recommended Fuse Rating	8A
Supply Voltage	12VDC

Environment

Operating Temperature Range	-15～+55°C

Physical

Dimensions (W x H x D)	165.9 x 88.2 x 159.8mm
Mounting Type	Flush, Bracket

Other

Warranty Period	24 Months

Weight	12 kg
Dimensions	50,6 × 54 × 25,3 cm
Brand	Lowrance
Family	VHF -Fixed Mount
Model	Link-6
Class Type	VHF
Component	Head/Display
Item Type	Main Product
