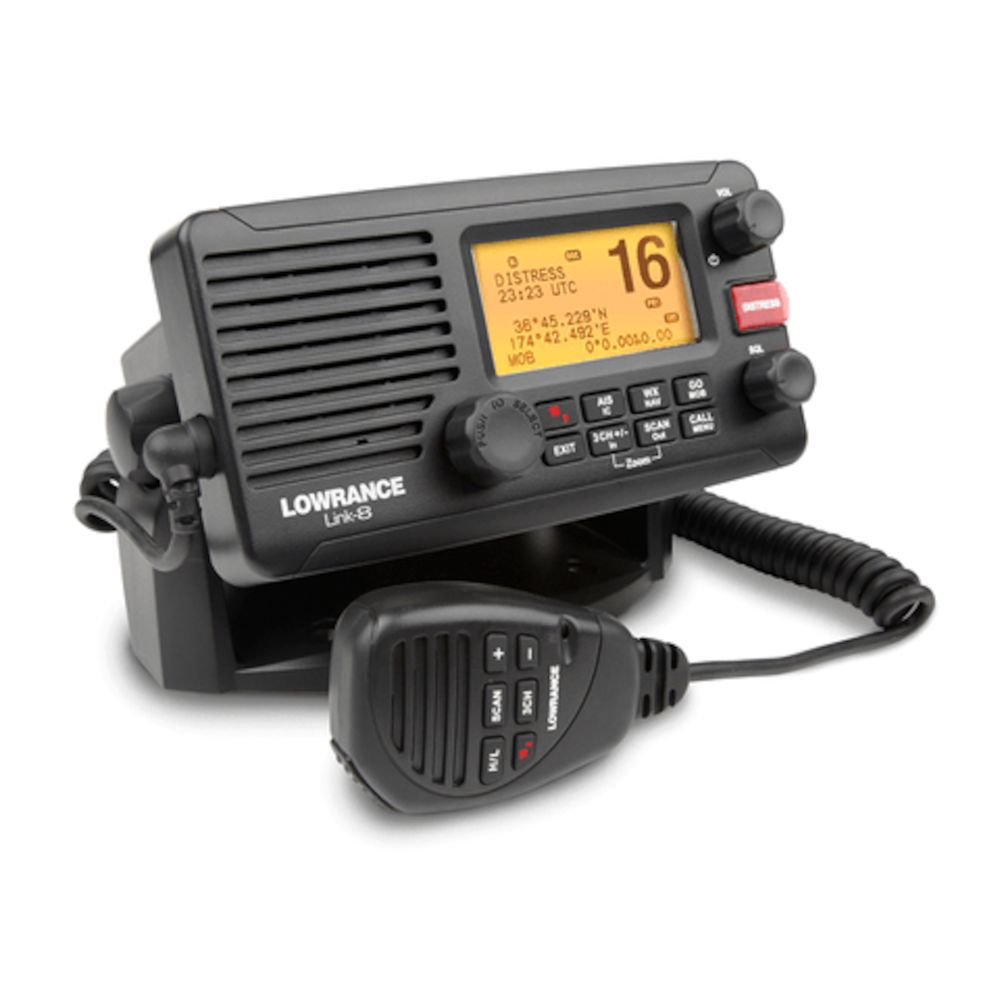

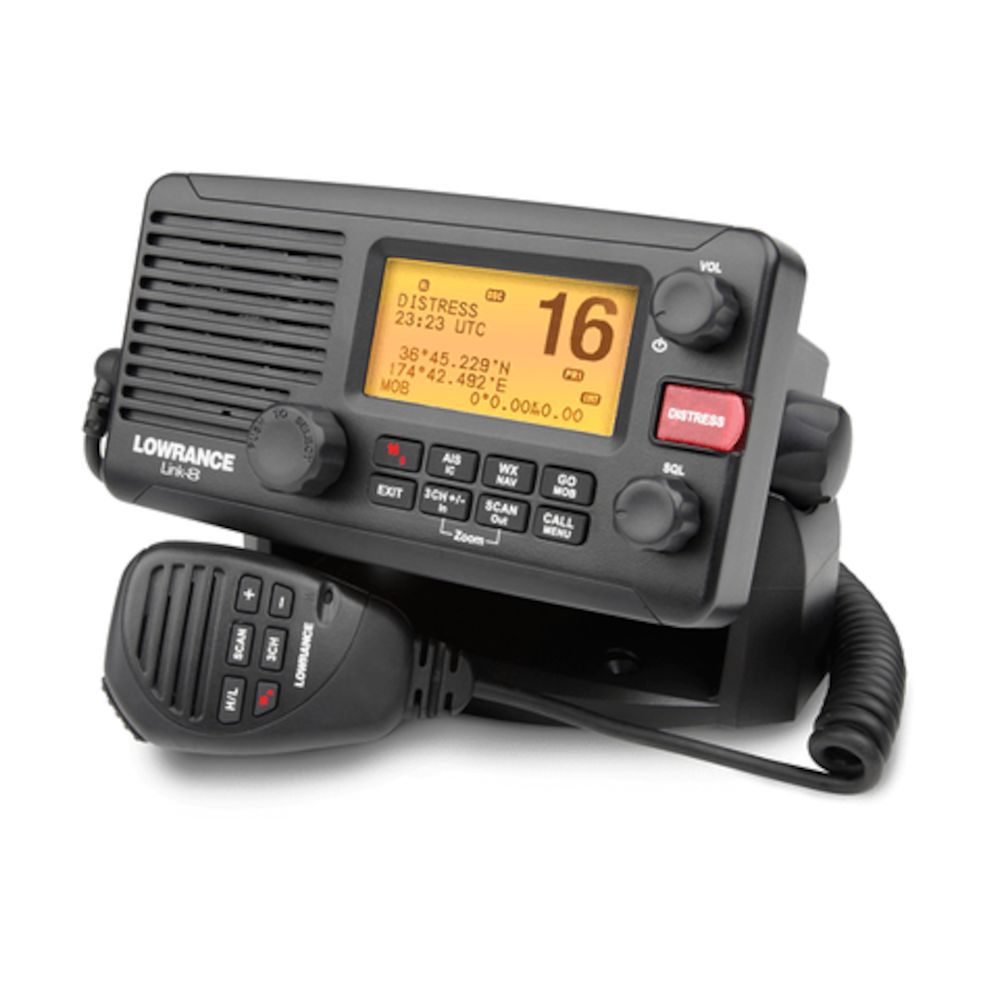

Lowrance VHF MARINE RADIO, LINK-8, DSC

Link 8

KEY FEATURES

-Flush mountable Class D DSC fixed mount VHF transceiver
-25 W / 1 W transmission power
-Built-in dual-channel AIS receiver with AIS plot functionality
-Extra large, high resolution LCD display
-NMEA 2000® connectivity plus NMEA0183
-High quality fist mic with built-in speaker
-MOB feature
-Track Your Buddy option
-Dual Watch / tri watch and all scan functions
-PA/Hailer horn output with Listen Back Feature
-10 weather channels
-20 user programmable names with MMSI
-Fully waterproof

Includes:

Link-8 Radio
-Power cable and inline fuse
-Spare fuse
-User Guide
-Installation Guide
-GPS Cable
-Mic Clip and screws
-Mounting bracket and screws
-Flush mount screws
-Suncover

• Class D DSC.
• Dual Channel AIS Receiver.
• Integrated Speaker Fist Mic.
• Position Poll, Track and Group Call.
• Dual/Tri Watch.
• Lat/Long Display.
• Loud And Clear Audio including 22 Watt Hailer with listenback.
• NMEA 0183®.
• NMEA 2000 Compatible.

Approvals

Compliance	ITU-R M493-13 US Models; EN300-338-3 EU Models

Communications

Channels	55 INT;53 USA; 61 CAN; 10 Weather
DSC Class	Class D
Frequency Range	Tx MHz 156.025 To 157.425 ; Rx MHz 156.025 To 163.275
Hailer Function	30W @ 4 Ohms
Handset type	Fist Mike
Transmit Power	23 +/- 2 W

Connectivity

NMEA 0183 Sentences supported	Output:DSC,DSE,VDM Input:RMC,GGA,GLL,GNS
N2K PGNs	127250;127258;129025;129026;129029;129033;129038;129039;129040;129041;129283;129284;129285;129792;129793;129794;129795;129796;129797;129798;129799;129800;129801;129802;129803;129804;129805;129806;129807;129808;129809;129810;130074;130842
NMEA 0183	2x Tx, 1x Rx NMEA 0183, Baud Rate 4,800 -38400
NMEA 2000	1x NMEA 20000 Micro-C port, 1 LEN

Display

Backlight Color	Amber
Resolution	128x156px

Electrical

Battery	12V DC
Power Consumption, max.	78W
Recommended Fuse Rating	10A
Supply Voltage	12VDC

Environment

Operating Temperature Range	-20ºC to +55ºC (-4ºF to 131ºF)
Waterproof rating	JIS-7

MFD

Compass Safe Distance – Metric, imperial	0.5m (1.5′)

Physical

Dimensions (W x H x D)	180.5 x 98.5 x 170.3mm ( 7.11 x 3.88 x 6.70″ )
Mounting Type	Bracket, Flush
Weight	1.63kg (3.59lbs)

Other

Warranty Period	2 Years
Interface	Keypad controls and Rotary dial

Weight	2,25 kg
Dimensions	23,3 × 33,5 × 10,1 cm
Brand	Lowrance
Family	VHF -Fixed Mount
Model	Link-8
Class Type	VHF
Component	Head/Display
Item Type	Main Product
