Navico Bronze HDI XDCR 0 TILT 50/200 455/800

Name: Navico Bronze HDI XDCR 0 TILT 50/200 455/800
SKU: 000-13905-001
Price: 512.09 EUR
Availability: InStock

Original price was: 568,99 €.Current price is: 512,09 €.
You save

Bronze HDI XDCR 0 TILT 50/200 455/800: Black 9 Pin pin connector: Cable length 10 m (33.0 ft): Available Q1 2017.

SKU: 000-13905-001 Category: Navico XSONIC Thru Hull
Brand: Navico

1ST ORDER DISCOUNT

Claim your initial 5% discount on your first order.
Claim it here!

PRICE GUARANTEE

If you find a cheaper price in the next 72 hours we will match it.

OFFICIAL WARRANTY

We are Authorised Dealers for all brands. You will be fully covered.

Terms and Conditions

FAQ & Terms

LOCAL DELIVERY OPTIONS

Standard Delivery usually 3-5 days.
Express Delivery usually 2-3 days.

Rebate

PRICE GUARANTEE

If you find a cheaper price in the next 72 hours we will match it.

1ST ORDER DISCOUNT

Claim your initial 5% discount on your first order by registering on the SailRACE community.

CERTIFIED SUPPORT

Get support by officially certified experts. Detail us your refitting needs and we will help you determining the best solution.

Detailed Information

Product Description

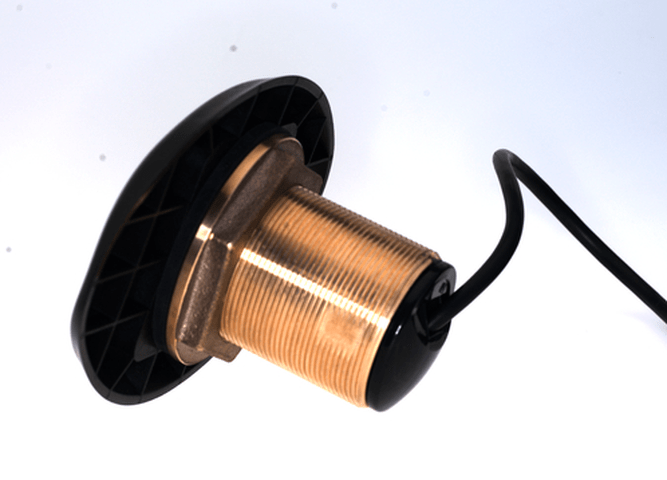

Introducing NEW Bronze Hybrid Dual Imaging™ (HDI) tilted element thru hull transducers

Provides 50/200kHz traditional frequencies PLUS 455/800kHz Down Scan Imaging plus temperature.
Available in 0°12°20°tilt angles.
10 m (33 ft) cable.

Performance

Beam Width at -3dB.
50kHz 45°.
200kHz 11°.
455kHz.
Fore to aft 2.8°.
Port to starboard 56°.
800kHz.
Fore to aft 1.6°.
Port to starboard 32°.

Connection

The transducer comes with a 33 ft cable and Black 9 Pin connector which plugs directly into a compatible echosounder. The transducer must be selected in the installation menu on the device.

Additional information

Weight	3 kg
Dimensions	19,8 × 25,4 × 9,5 cm
SKU	000-13905-001
Brand	Navico
Family	HDI
GTIN	9420024162606
Model	XSONIC Thru Hull
Class Type	Sonar
Component	Sensor/Transducer/Scanner/Antenna
Item Type	Accessory
