Navico SG-05 CAN-bus Autopilot for Optimus and Optimus 360 Steering Systems by Seastar

SG05 for Optimus 360 steering systems

The Simrad SG-05 CAN-bus Autopilot connects directly to Optimus and Optimus 360 steering systems giving you a fully integrated steering, navigation and autopilot system.

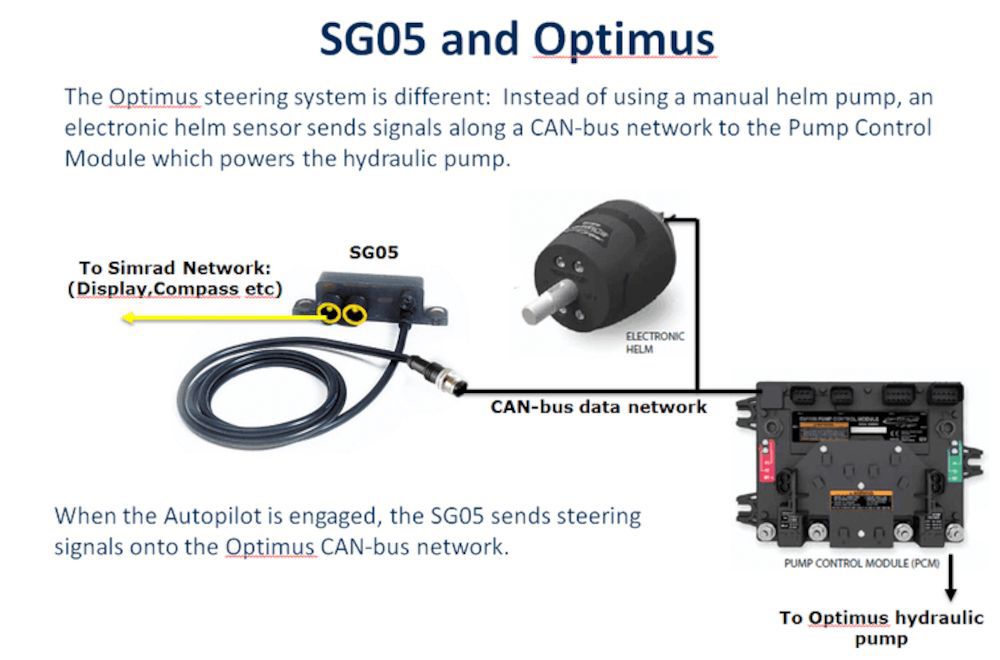

The Optimus steering system is different: Instead of using a manual helm pump, an electronic helm sensor sends signals along a CAN-bus network to the Pump Control Module which powers the hydraulic pump.

Advantages of SG05 and Optimus:

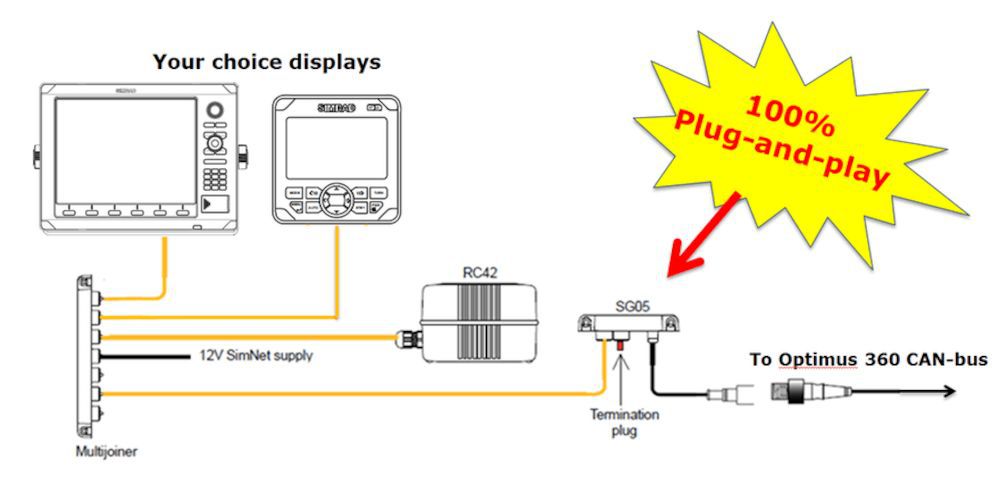

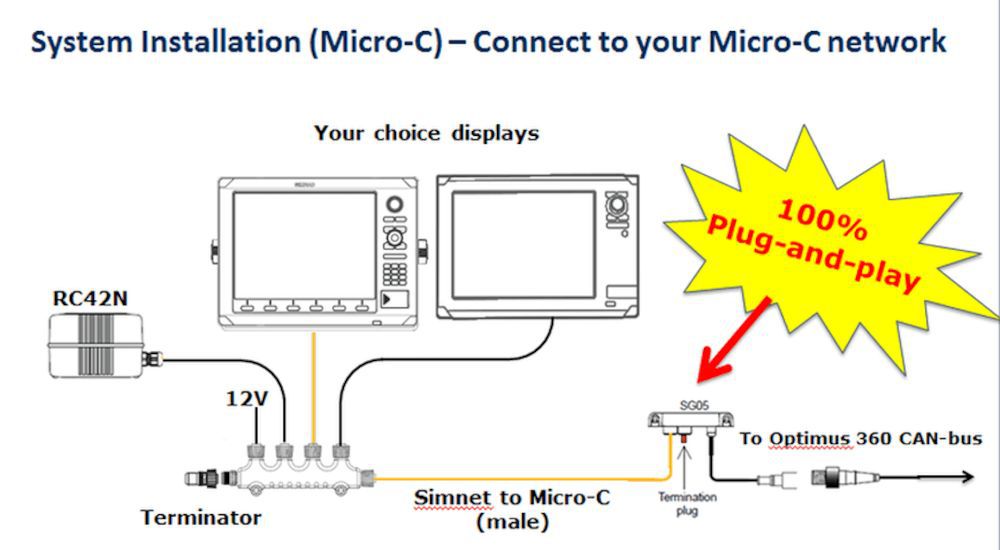

-With an Optimus steering system installed, the autopilot can be fitted in minutes: simply plug into the Optimus CAN-bus network.
-No need to Tee into hydraulic lines.

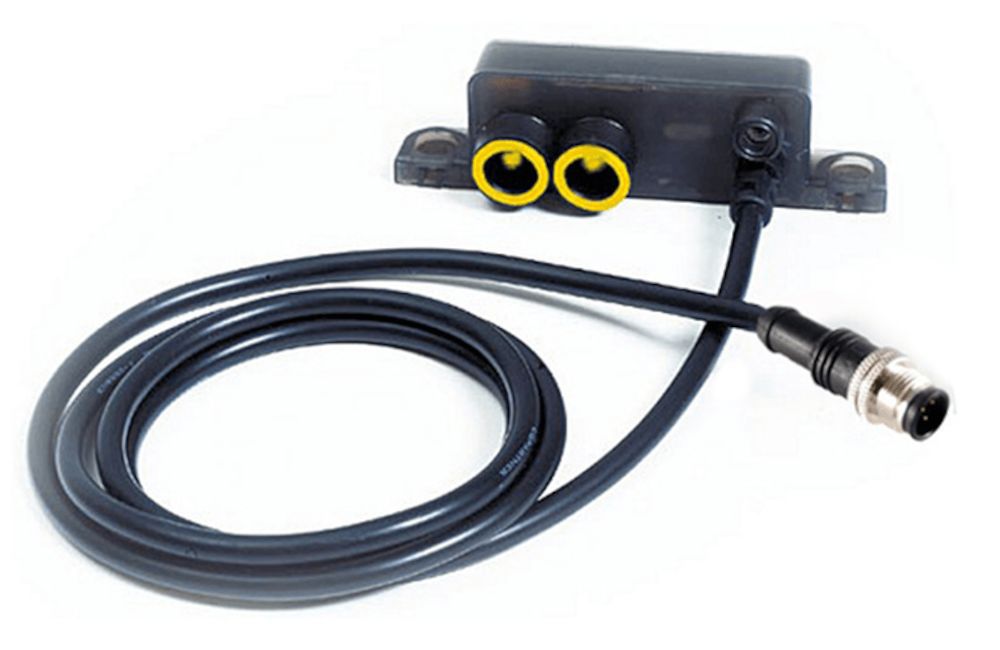

-The compact design of the SG05 makes it easy to install

• SeaStar Solutions Approved.
• Easy to use.
• Cost Effective
• Steer to a waypoint, heading or set turn pattern.
• CAN-bus data connectivity.
• Full system Integration.

Autopilot

Engine Drive systems integration	CAN

Connectivity

NMEA 2000	2x SimNet ports, 2 LEN.

Electrical

Power Consumption, max.	75mA
Power Consumption, typical	75mA
Supply Voltage	12-16V via CAN

Environment

Operating Temperature Range	0C to +55C (+32F to +131F)
Storage Temperature Range	-30C to +70C (-22F to +131F)
Waterproof rating	IP44

MFD

Compass Safe Distance – Metric, imperial	0,5m (19,7″)

Physical

Dimensions (W x H x D)	94,5 x 26 x 33,2mm (3,72 x 1,02 x 1,31″)
Mounting Type	Bulkhead
Weight	0,1kg (0,2 lbs)

Other

Warranty Period	2 years

Dimensions	17,787 × 20,328 × 0,127 cm
Brand	Navico
SKU	000-10906-001
Family	AP24/28
GTIN	9420024121139
Model	SG05
Class Type	Autopilot
Component	Processor/Computer/Ethernet Module
Item Type	Main Product
