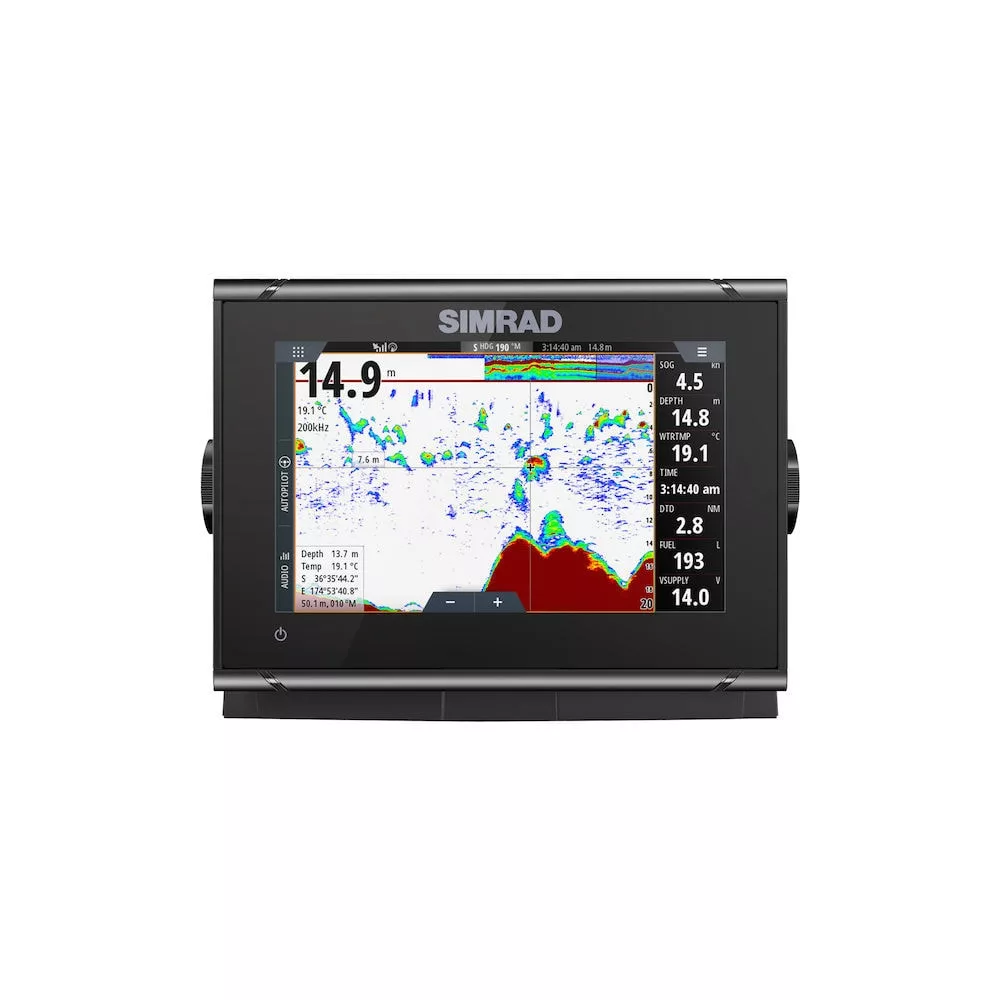

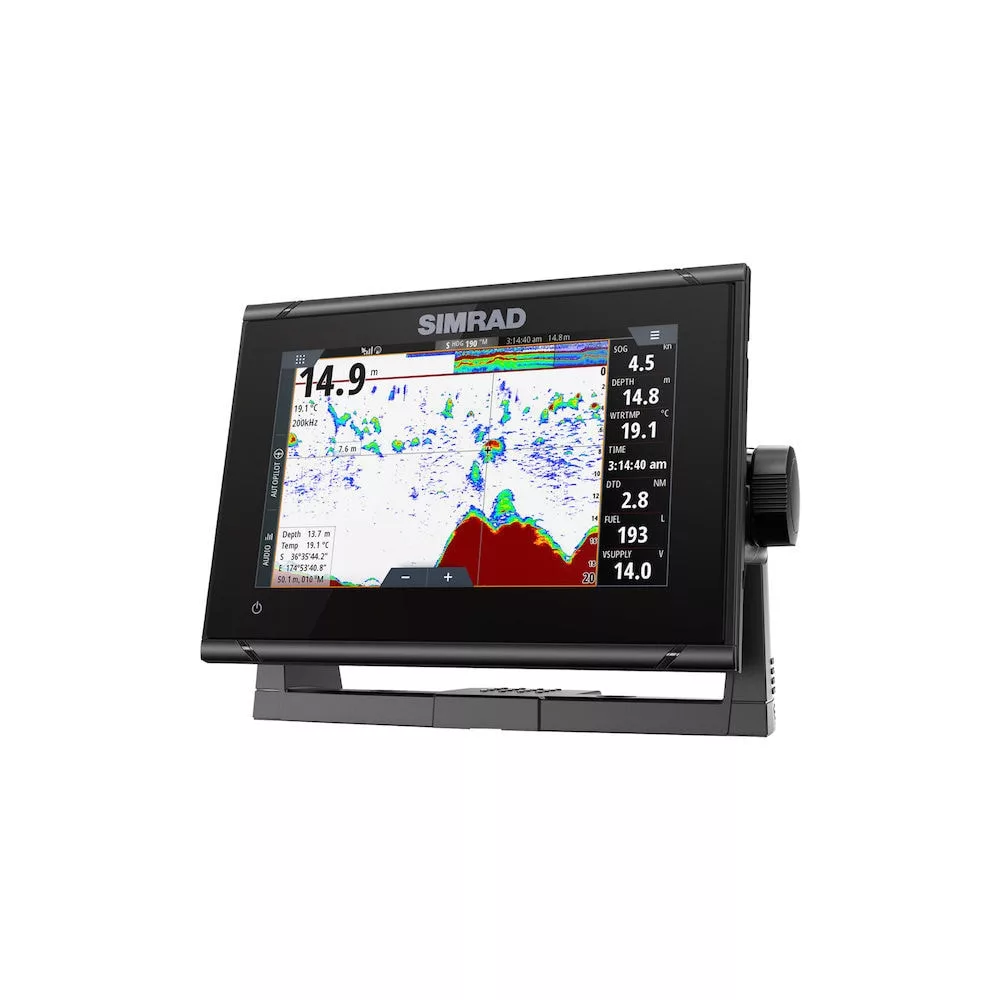

Simrad 7-inch chartplotter and radar display with TotalScan™ transducer

Intuitive Touchscreen Chartplotter

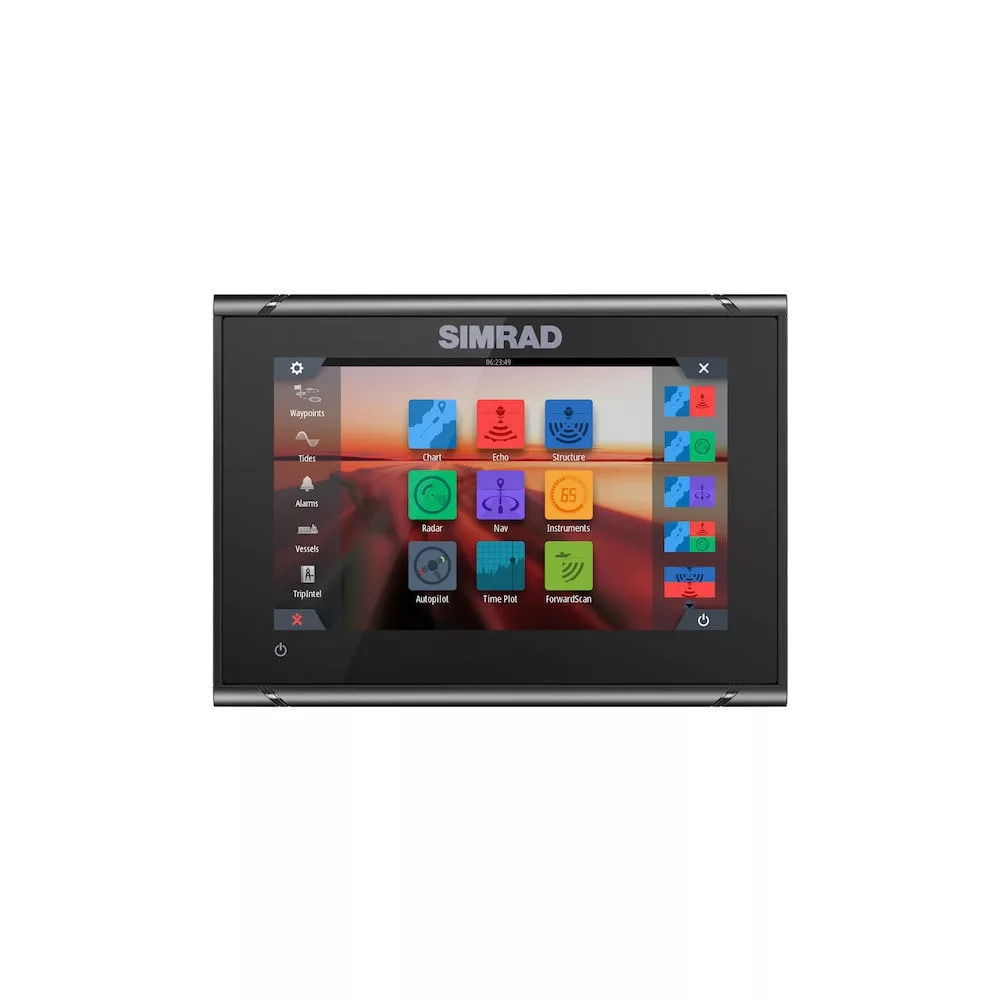

The GO series offers true ease of use with intuitive touchscreen controls that smartphone and tablet users will find instantly familiar. Customise your home screen with the features you use most, and see everything you need on screen at once with adjustable split-screen views. Mark waypoints on charts with a touch, and explore a world of navigation options at your fingertips. Every GO series display is a full-featured chartplotter with support for a wide range of cartography options from C-MAP, Navionics, and others.



Find Fish and Structure with a TotalScan™ Transducer



Your GO series display works as a powerful fish finder thanks to the included TotalScan™ transducer. This transom-mount transducer is easy to install, and offers the ultimate GO series sonar experience. CHIRP technology enables clear detection of fish throughout the water column, while StructureScan® HD imaging delivers a picture-like view of fish-holding structure beneath and around your boat. FishReveal™ technology blends CHIRP and downward structure views into a single, crystal clear picture of fish and structure.



Radar, Wireless, and NMEA 2000® Connectivity



Your Simrad GO series chartplotter is also a full-featured radar display with plug-and-play connectivity to Simrad Broadband 3G™, Broadband 4G™, and Halo™ radar systems. Cruise confidently through crowded harbours, navigate safely in poor visibility, keep an eye on distant weather cells, and find flocks of feeding birds that hint at good fishing spots. Built-in wireless connectivity mirrors your display to your smartphone or tablet; enjoy immediate access to radar, charts, and other functionality from anywhere on board. Industry-standard NMEA 2000® connectivity offers a wide range of expansion options such as engine monitoring, integration with your Simrad autopilot, and control of your on-board entertainment system.

• 7-inch widescreen with bright LED backlight.
• Easy to use with simple, intuitive touchscreen controls.
• Works as a display for Broadband 3G™/4G™ and Halo™ radar.
• Supports a wide range of charts from C-MAP, Navionics, and more.
• TotalScan™ transducer delivers CHIRP sonar and StructureScan® HD imaging views.
• Compatible with the WM-3 SiriusXM satellite weather module (North America only).

Approvals

Compliance	CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1

Autopilot

Manouevres / Turn Patterns	U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking
Steering Modes	Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail)

Cartography

Charts Supported	Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts)

Connectivity

NMEA 0183 Sentences supported	Exports NMEA0183 over WiFi
Bluetooth	Internal
Ethernet	1 x 5 pin yellow connector x 1 Mbit. Radar and Sirius (USA only) connectivity only (unless unlocked)
N2K PGNs	Receive only59392 ISO Acknowledgement, 59904 ISO Request, 60928 ISO Address Claim, 65285 Temperature with Instance, 65323 Data User Group Request, 65325 Reprogram Status, 65341 Autopilot Mode, 65480 Autopilot Mode, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127503 AC input status, 127504 AC Output Status, 127505 Fluid Level, 127506 DC Detailed Status, 127507 Charger Status, 127508 Battery Status, 127509 Inverter Status, 129033 Time & Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Addressed Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 129809 AIS Class B “CS” Static Data Report, Part A, 129810 AIS Class B “CS” Static Data Report, Part B, 130313 Humidity, 130314 Actual Pressure, 130576 Small Craft Status, 130842 SimNet DSC Message, 130851 Event Reply, 130817 Product Info, 130820 Reprogram Status, 130832 Fuel Used – High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130843 Sonar Status, Frequency and DSP Voltage,Transmit and Receive:61184 Parameter Request/Command, 65289 Trim Tab Insect Configuration, 65291 Backlight Control, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 126208 ISO Command Group Function, 126992 System Time, 126996 Product Info, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, Water referenced, 128267 Water Depth, 128275 Distance Log, 129025 Position, Rapid Update, 129026 COG & SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats in View, 130074 Route and WP Service – WP List – WP Name & Position, 130306 Wind Data, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130831 Suzuki Engine and Storage Device Config, 130835 SetEngineAndTankConfiguration, 130839 Pressure Insect ConfigurationTransmit only65287 Configure Temperature INSOcts, 65290 Paddle Wheel Speed Configuration, 129285 Route/Waypoint Data, 130818 Reprogram Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Insect Configuration, 130837 Fuel Flow Turbine Configuration
NMEA 0183	None
NMEA 2000	1 x NMEA 2000 Micro-C port, 1 LEN
PC Connectivity	None
Video	None
WiFi	Internal

Display

Backlight Color	White
Resolution	800×480
Screen Brightness	1200 nits
Size and Type	7″ TFT Optically bonded
Viewing Angles	80° top/bottom, 80° left/right

Electrical

Power Consumption, max.	20 W
Power Consumption, typical	12 W
Recommended Fuse Rating	3A
Supply Voltage	10 – 17 V DC

Environment

Operating Temperature Range	“-15°C to +55°C (5° F to 131° F)
Shock and Vibration	CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1
Storage Temperature Range	“-20°C to +60°C (4°F to 140°F)
Waterproof rating	IPX 6 and 7

GPS

Correction	WASS, MSAS, EGNOS, GLONASS
GPS Receiver Channels	32 Channels
Position Accuracy	Horizontal Accuracy 3 m (9.8 ft.)
Time to First Fix	Cold start less than 90 seconds exposed to open sky, Satellite Reacquisition 5 sec
Update rate	10 Hz

MFD

AIS	Receive AIS data over NMEA 2000 only
Autopilot	Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail). Requires STBY button or Controller with STBY button to commission
Cartography included	TBD
Cartography supported	Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts)
Digital Switching	BEP C-Zone
External Storage	1 Micro SD slot, max. 32GB each. >32 GB format to NTFS
GPS	Internal, 10Hz, WASS, MSAS, EGNOS
Internal Storage	90MB
Multimedia	via SonicHub2, Fusion Link, *Sirius, **JL Audio. *USA only, **AUST. & NZ only)
Radar (inc. compatibility)	Halo, Broadband, HD Radars
Sonar (inc. compatibility)	Integrated CHIRP / DownScan / ForwardScan. Single 9 Pin Xsonic Connector
Weather	SiriusXM via WM-3 (USA only), GRIB
Waypoints, Routes, Tracks	6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.

Physical

Dimensions (W x H x D)	197 mm x 141 mm x 82.7 mm (7.56″ x 5.55″ x 3.26″) (no bracket)
Mounting Type	Bracket or Panel
Weight	1.320 kg (2.91lb)

Other

Warranty Period	2 Years
Interface	Touch screen, OP40 or OP50 controller via NEA 2000
Languages	Standard Language Pack: English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, Swedish. Other Language unlocksAsian Language Pack: English (US), Japanese, Korean, Thai, Chinese, Eastern European Language Pack: English (US), English (UK), Bulgarian, German, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Lithuanian, Latvian, Polish, Slovak, TurkishRussia/Ukraine Language pack: English (US), English(UK), German, Spanish, French, Italian, Russian, UkrainianMiddle Eastern Language Pack: English (US), English (UK), Arabic, German, Spanish, Farsi, French, Italian

Weight	3,35 kg
Dimensions	19,7 × 25,72 × 22,54 cm
Brand	Simrad Yachting
Family	GO XSR
Model	GO7 XSR
Class Type	Fishfinder/Chart
Component	Head/Display
Item Type	Main Product
